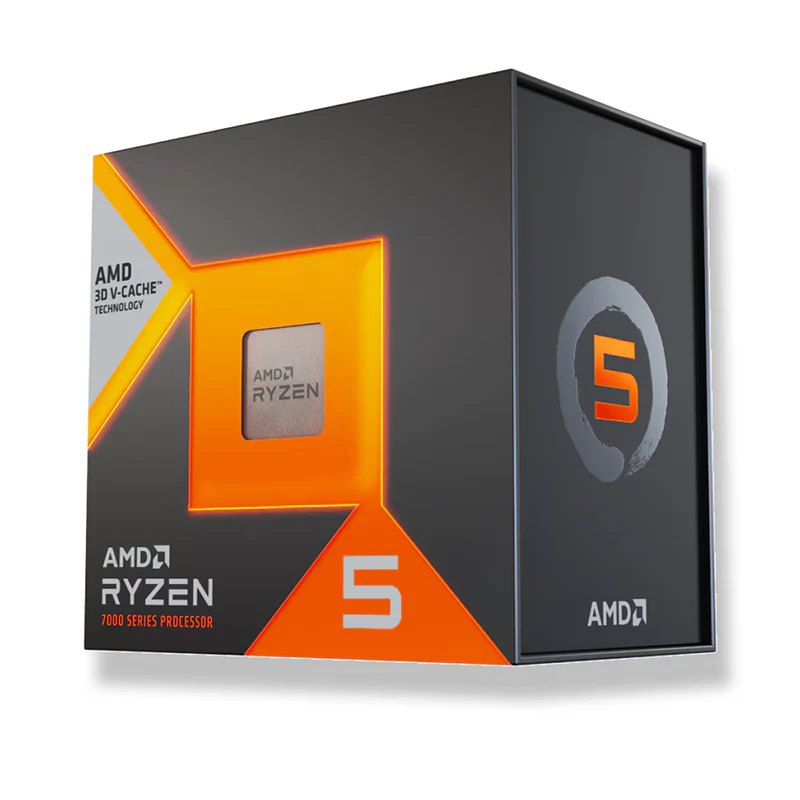

AMD Ryzen 5 7500X3D AM5 4.5GHz Boxed CPU Processor (100-100001904WOF)
SPECIFICATIONS:
GENERAL SPECIFICATIONS |
|
Name |
AMD Ryzen ¢ 5 7500X3D |
Family |
Ryzen |
Series |
Ryzen 7000 Series |
Form Factor |
Desktops, Boxed Processor |
Market Segment |
Enthusiast Desktop |
AMD PRO Technologies |
No |
Former Codename |
Raphael AM5 |
Processor Architecture |
Zen 4 |
# of CPU Cores |
6 |
Multithreading (SMT) |
Yes |
# of Threads |
12 |
Max. Boost Clock |
Up to 4.5 GHz |
Base Clock |
4 GHz |
L1 Cache |
384 KB |
L2 Cache |
6 MB |
L3 Cache |
96 MB |
Default TDP |
65W |
Processor Technology for CPU Cores |
TSMC 5nm FinFET |
Processor Technology for I/O Die |
TSMC 6nm FinFET |
CPU Compute Die (CCD) Size |
71mm ² |
I/O Die (IOD) Size |
122mm ² |
Package Die Count |
2 |
AMD EXPO ¢ Memory Overclocking Technology |
Yes |
Precision Boost Overdrive |
Yes |
Curve Optimizer Voltage Offsets |
Yes |
AMD Ryzen ¢ Master Support |
Yes |
CPU Socket |
AM5 |
Supporting Chipsets |
A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850 |
CPU Boost Technology |
Precision Boost 2 |
Instruction Set |
x86-64 |
Supported Extensions |
AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64 |
Thermal Solution (PIB) |
Not Included |
Recommended Cooler |
Liquid cooler recommended for optimal performance |
Max. Operating Temperature (Tjmax) |
89 °C |
*OS Support |
Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit |
CONNECTIVITY |
|
Native USB 3.2 Gen 2 (10Gbps) |
4 |
Native USB 3.2 Gen 1 (5Gbps) |
0 |
Native USB 2.0 (480Mbps) |
1 |
PCI Express ® Version |
PCIe ® 5.0 |
Native PCIe ® Lanes (Total/Usable) |
28 , 24 |
NVMe Support |
Boot , RAID0 , RAID1 , RAID10 |
System Memory Type |
DDR5 |
Memory Channels |
2 |
Max. Memory |
128 GB |
System Memory Subtype |
UDIMM |
MAX MEMORY SPEED |
|
2x1R |
DDR5-5200 |
2x2R |
DDR5-5200 |
4x1R |
DDR5-3600 |
4x2R |
DDR5-3600 |
ECC Support |
Yes (Requires mobo support) |
GRAPHICS CAPABILITIES |
|
Graphics Model |
AMD Radeon ¢ Graphics |
Graphics Core Count |
2 |
Graphics Frequency |
2200 MHz |
USB Type-C ® DisplayPort ¢ Alternate Mode |
Yes |
KEY FEATURES |
|
Supported Technologies |
AMD EXPO ¢ Technology , AMD Ryzen ¢ Technologies |
