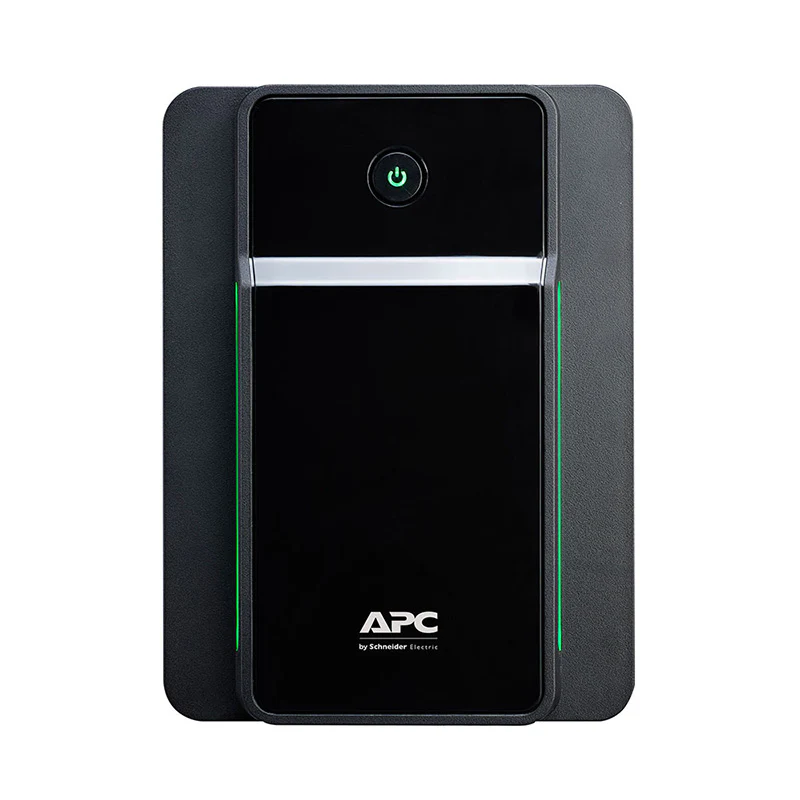

APC by Schneider BX1600MI-AZ Back-UPS 1600VA/900W 230V UPS
| Output | |
|---|---|
| Max Configurable Power (Watts) | 900 Watts / 1.6kVA |
| Output Frequency (sync to mains) | 50/60 Hz +/- 1 Hz Sync to mains |
| Topology | Line interactive |
| Waveform type | Stepped approximation to a sinewave |
| Transfer Time | 6 ms typical : 10 ms maximum |
| Output Connections (Battery Backup) | 4 |
| Input | |
| Input frequency | 50/60 Hz +/- 5 Hz Auto-sensing |
| Input voltage range for main operations | 140 - 300V |
| Number of Power Cords | 1 |
| Input Power Factor at Full Load | 0.56 |
| Batteries & Runtime | |
| Battery type | Lead‑acid battery |
| Typical recharge time | 8 hours |
| Nominal Battery Voltage | 24 V |
| Expected Battery Life (years) | 3 – 5 |
| Battery Volt‑Amp‑Hour Capacity | 168 |
| Communications & Management | |
| Control panel | LED Status display (online / on battery) |
| Audible Alarm | Alarm when on battery; distinctive low‑battery alarm |
| Surge Protection & Filtering | |
| Surge energy rating | 273 Joules |
| Data Line Protection | RJ45 10/100/1000 Base‑T Ethernet protection |
| Physical | |
| Maximum Height | 190 mm (19.0 cm) |
| Maximum Width | 140 mm (14.0 cm) |
| Maximum Depth | 390 mm (39.0 cm) |
| Net Weight | 10.3 kg |
| Colour | Black |
| SCC Codes | 10731304410772 |
| Environmental | |
| Operating Temperature | 0 – 40 °C |
| Operating Relative Humidity | 0 – 95 % (non‑condensing) |
| Operating Elevation | 0 – 3000 m |
| Audible noise @ 1 m | 40 dBA |
| Protection Class | IP20 |
| Conformance | |
| Approvals | CB, CE, EN/IEC 62040‑1, EN/IEC 62040‑2, RCM |
| Standard warranty | 2 years repair or replace |
| Sustainable Offer Status | |
| RoHS | Compliant |
$66.22
Original: $220.74
-70%APC by Schneider BX1600MI-AZ Back-UPS 1600VA/900W 230V UPS—
$220.74
$66.22APC by Schneider BX1600MI-AZ Back-UPS 1600VA/900W 230V UPS
| Output | |
|---|---|
| Max Configurable Power (Watts) | 900 Watts / 1.6kVA |
| Output Frequency (sync to mains) | 50/60 Hz +/- 1 Hz Sync to mains |
| Topology | Line interactive |
| Waveform type | Stepped approximation to a sinewave |
| Transfer Time | 6 ms typical : 10 ms maximum |
| Output Connections (Battery Backup) | 4 |
| Input | |
| Input frequency | 50/60 Hz +/- 5 Hz Auto-sensing |
| Input voltage range for main operations | 140 - 300V |
| Number of Power Cords | 1 |
| Input Power Factor at Full Load | 0.56 |
| Batteries & Runtime | |
| Battery type | Lead‑acid battery |
| Typical recharge time | 8 hours |
| Nominal Battery Voltage | 24 V |
| Expected Battery Life (years) | 3 – 5 |
| Battery Volt‑Amp‑Hour Capacity | 168 |
| Communications & Management | |
| Control panel | LED Status display (online / on battery) |
| Audible Alarm | Alarm when on battery; distinctive low‑battery alarm |
| Surge Protection & Filtering | |
| Surge energy rating | 273 Joules |
| Data Line Protection | RJ45 10/100/1000 Base‑T Ethernet protection |
| Physical | |
| Maximum Height | 190 mm (19.0 cm) |
| Maximum Width | 140 mm (14.0 cm) |
| Maximum Depth | 390 mm (39.0 cm) |
| Net Weight | 10.3 kg |
| Colour | Black |
| SCC Codes | 10731304410772 |
| Environmental | |
| Operating Temperature | 0 – 40 °C |
| Operating Relative Humidity | 0 – 95 % (non‑condensing) |
| Operating Elevation | 0 – 3000 m |
| Audible noise @ 1 m | 40 dBA |
| Protection Class | IP20 |
| Conformance | |
| Approvals | CB, CE, EN/IEC 62040‑1, EN/IEC 62040‑2, RCM |
| Standard warranty | 2 years repair or replace |
| Sustainable Offer Status | |
| RoHS | Compliant |
