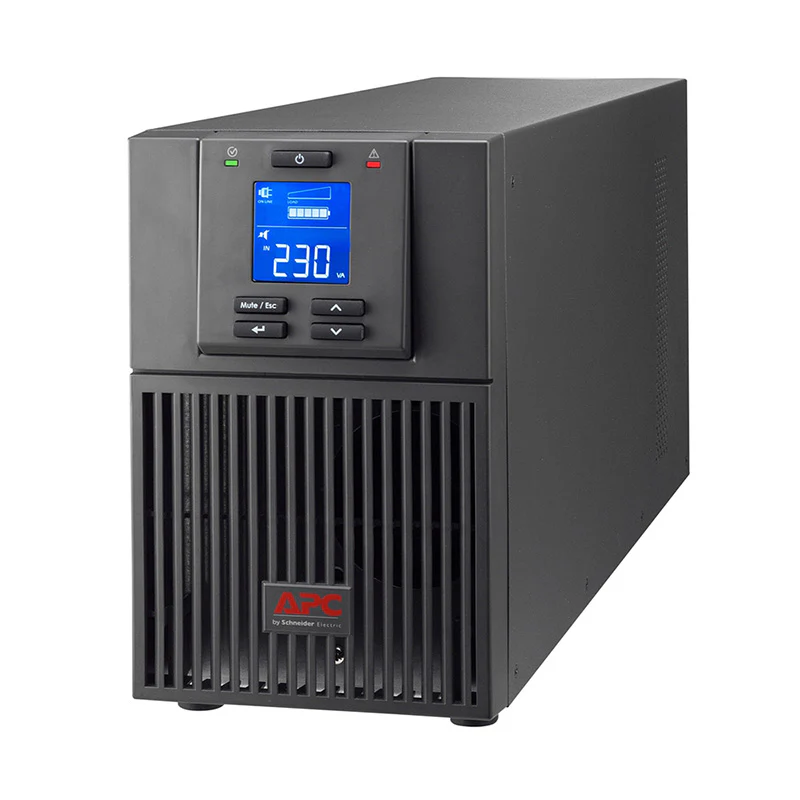

APC by Schneider Easy UPS On-Line SRV 1000VA 800W (SRV1KI)
| Main | |
|---|---|
| Main Input Voltage | 230 V |
| Other Input Voltage | 220 V 240 V |
| Main Output Voltage | 230 V |
| Other Output Voltage | 220 V 240 V |
| Rated Power (W) | 800 W |
| Rated Power (VA) | 1000 VA |
| Input Connection Type | IEC 60320 C14 |
| Output Connection Type | 3 IEC 60320 C13 |
| Cable Length | 1.50 m |
| Number of Cables | 1 |
| Provided Equipment | 1 IEC 60320 C13 to Schuko power cable 1 IEC 60320 C13 to C14 power cable 1 USB cable 1 RS-232 configuration cable User manual |
| General | |
| Max Runtime | 4 min |
| Power Module Filled Slots | 0 |
| Power Module Free Slots | 0 |
| Redundant | No |
| Physical | |
| Colour | Black (RAL 7010) |
| Height | 22.3 cm |
| Width | 14.5 cm |
| Depth | 28.8 cm |
| Net Weight | 9.3 kg |
| Mounting Location | Front |
| Mounting Support | Floor |
| Mounting Preference | No preference |
| Mounting Mode | Not rack‑mountable |
| USB Compatible | Yes |
| Mounting Position | Vertical |
| Input | |
| Input Voltage Limits | 110‑285 V (half load) 160‑280 V (full load) |
| Network Frequency | 40‑70 Hz auto‑sensing |
| Output | |
| Max Configurable Power | 1000 VA / 800 W |
| Output Frequency | 50/60 Hz ± 3 Hz sync to mains |
| Harmonic Distortion | 3 % |
| UPS Type | Double conversion online |
| Wave Type | Sine wave |
| Efficiency (full load) | 88 % |
| Additional Info | Configurable for 220 : 230 or 240 V nominal output |
| Bypass Type | Internal bypass (automatic and manual) |
| Crest Factor | 3 : 1 |
| Conformance | |
| Product Certifications | CE, UKCA, EAC, TISI |
| Standards | EN/IEC 62040‑1:2019/A11:2021 EN/IEC 62040‑2:2006/AC:2006 EN/IEC 62040‑2:2018 |
| Environmental | |
| Operating Temperature | 0 °C – 40 °C |
| Relative Humidity | 0 % – 95 % non‑condensing |
| Operating Altitude | 0 – 3000 m |
| Storage Temperature | -20 °C – 50 °C |
| Storage Altitude | 0 – 15000 m |
| Acoustic Level | 50 dBA |
| Heat Dissipation | 372 Btu/h |
| IP Protection | IP20 |
| Batteries & Runtime | |
| Battery Type | Lead‑acid |
| Battery Voltage | 24 V |
| Battery Slots (filled) | 1 |
| Battery Slots (free) | 0 |
| Battery Recharge Time | 4 h |
| Battery Life | 3 – 5 years |
| Replacement Battery Part No. | APCRBCV203 |
| Battery Charger Power | 30 W rated |
| Communications & Management | |
| Alarm | Battery alarm, low‑battery alarm, overload continuous tone |
| Free Slots (communication) | 1 |
| Control Panel | Multifunction LCD status and control console |
| Surge Protection & Filtering | |
| Surge Energy Rating | 600 J |
| Contractual Warranty | |
| Warranty | 2 years repair or replace |
$185.20
Original: $617.34
-70%APC by Schneider Easy UPS On-Line SRV 1000VA 800W (SRV1KI)—
$617.34
$185.20APC by Schneider Easy UPS On-Line SRV 1000VA 800W (SRV1KI)
