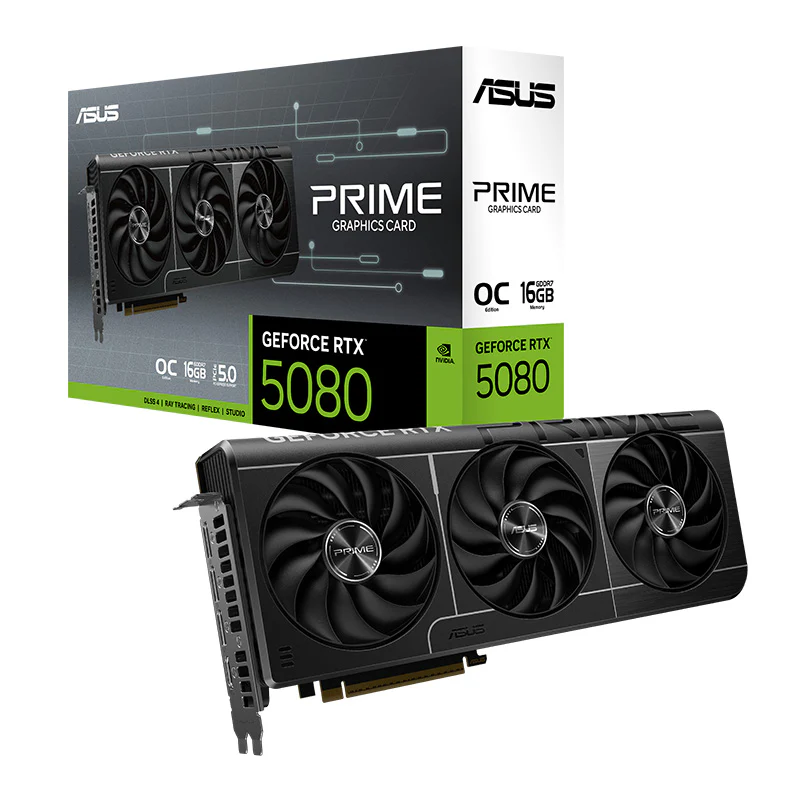

Asus PRIME GeForce RTX 5080 16G OC Graphics Card (PRIME-RTX5080-O16G)

PRIME GeForce RTX™ 5080 - Primed for Power

Experience powerful performance with the PRIME GeForce RTX 5080. This SFF-ready graphics card features a 2.5-slot design with triple-fan Axial-tech cooling, a vapor chamber, and enhanced airflow for optimal thermal performance in any setup.

Key Features

• Powered by NVIDIA® GeForce RTX™ 5080 with 16GB GDDR7 memory
• AI-enhanced graphics with DLSS 4 & Reflex 2 with Frame Warp
• Full ray tracing with neural rendering & NVIDIA ACE for digital humans
• NVIDIA Studio, Broadcast & G-SYNC support
• 2.5-slot compact design with triple Axial-tech fans
• Vapor chamber & vented backplate for efficient cooling
• 0dB fan mode under 50°C for silent operation
• Dual BIOS with performance & quiet fan profiles
• ASUS GPU Tweak III software for tuning & real-time monitoring
• Auto-Extreme manufacturing for reliability & eco-friendly production

Additional Features

• ASUS GPU Guard & mounting bracket for stability
• Phase-change thermal pad for superior heat dissipation
• Supports 4 displays, PCIe 5.0, and HDMI 2.1b / DisplayPort 2.1b outputs
• Compatible with NVIDIA App for driver & settings optimization

Specifications:

• Model: PRIME-RTX5080-O16G
• Graphic Engine: NVIDIA® GeForce RTX™ 5080
• AI Performance: 1827 TOPs
• Bus Standard: PCI Express 5.0
• OpenGL: OpenGL® 4.6
• Video Memory: 16GB GDDR7
• Engine Clock: OC mode: 2685 MHz, Default mode: 2655 MHz (Boost Clock)
• CUDA Core: 10752
• Memory Speed: 30 Gbps
• Memory Interface: 256-bit
• Resolution: Digital Max Resolution 7680 x 4320
• Interface: 1 x HDMI 2.1b, 3 x DisplayPort 2.1b
• HDCP Support: Yes (2.3)
• Maximum Display Support: 4
• NVlink/Crossfire Support: No
• Accessories: Speedsetup Manual, ASUS Velcro Hook & Loop, Thank You Card, Adapter Cable (1 to 3)
• Software: ASUS GPU Tweak III, MuseTree, GeForce Game Ready Driver, Studio Driver (download from support site)
• Dimensions: 304 x 126 x 50 mm
• Recommended PSU: 850W
• Power Connectors: 1 x 16-pin
• Slot: 2.5 Slot
• SFF Ready: Compatible
