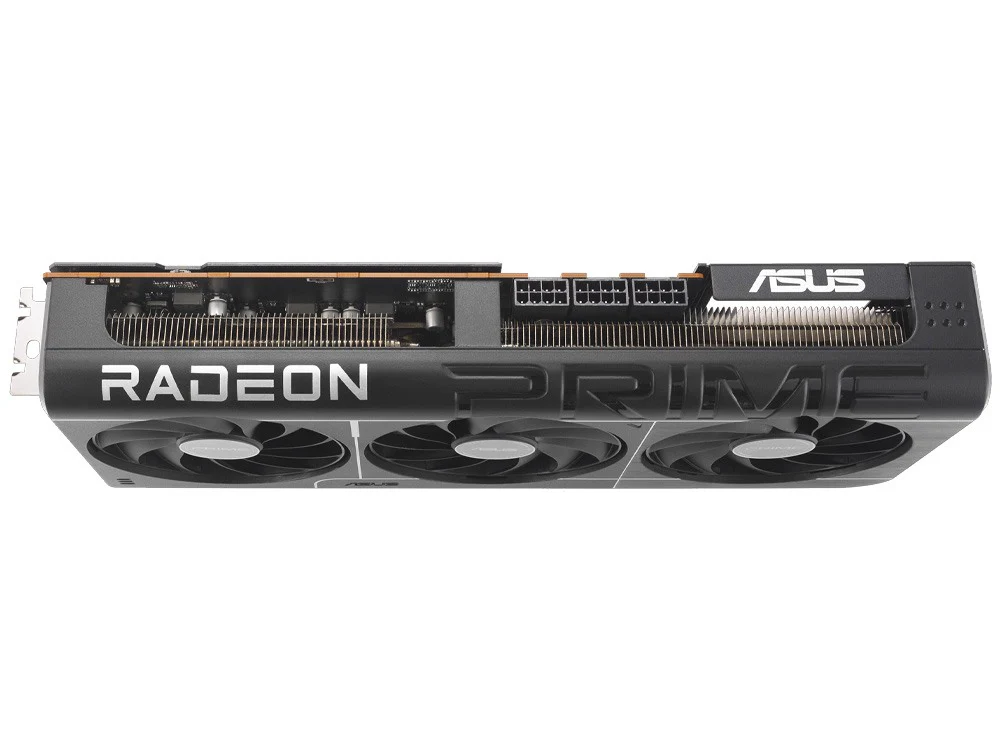

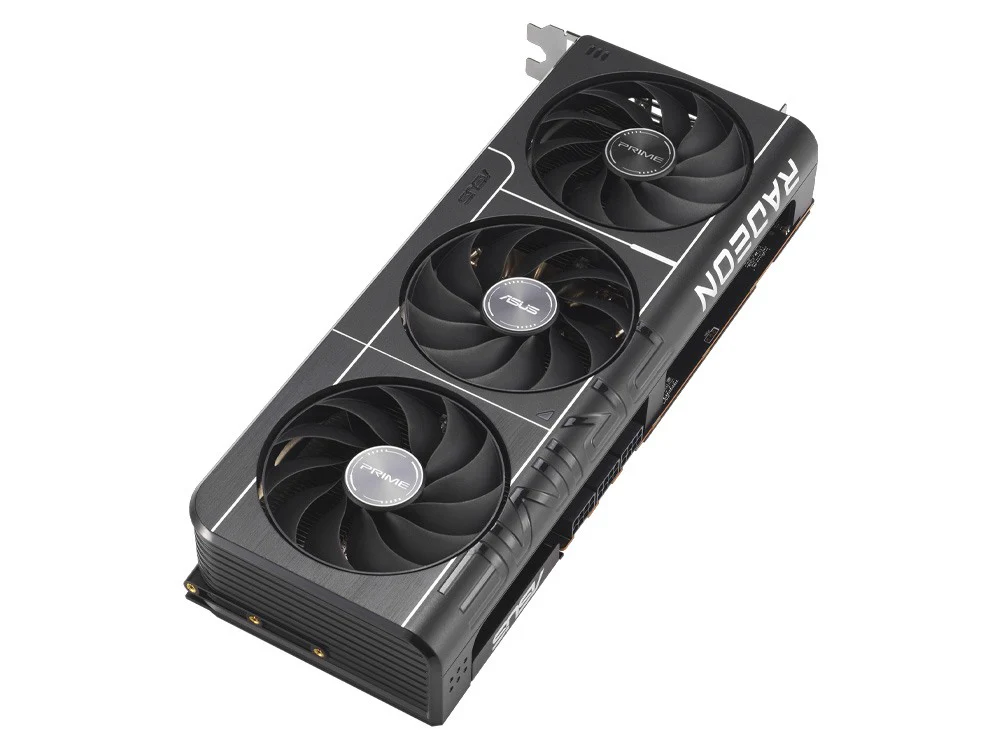

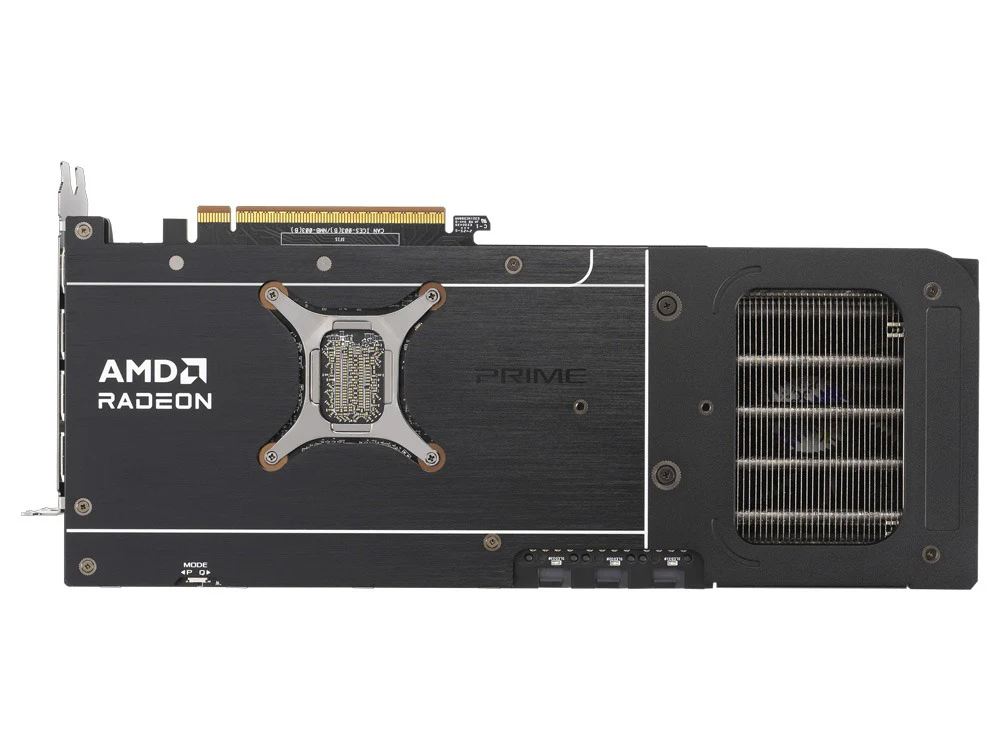

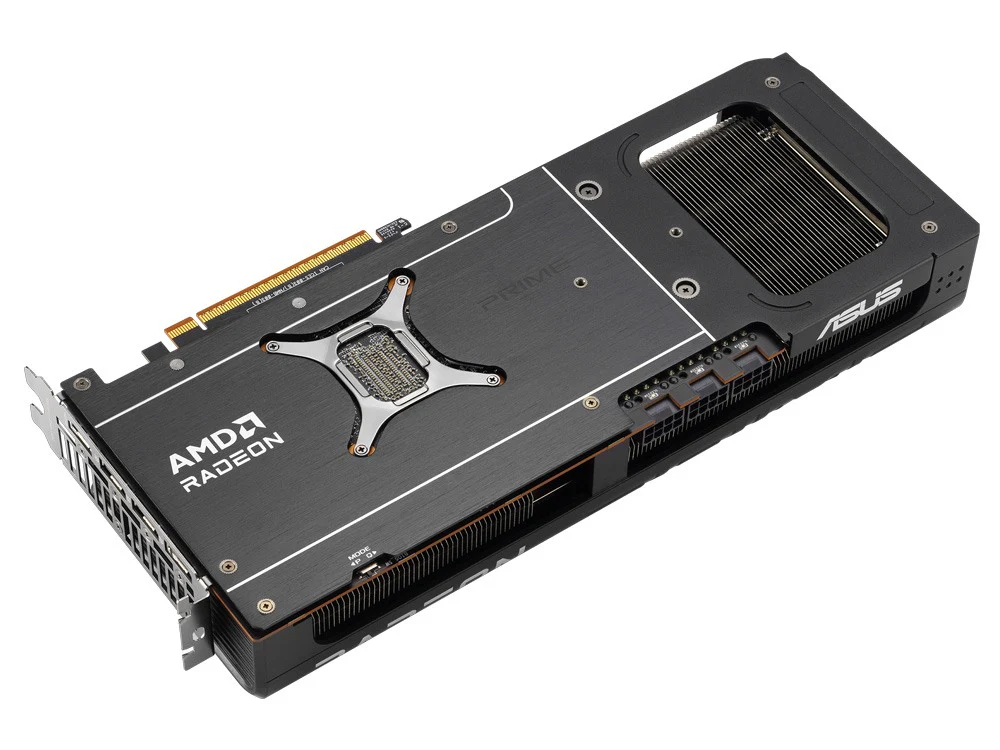

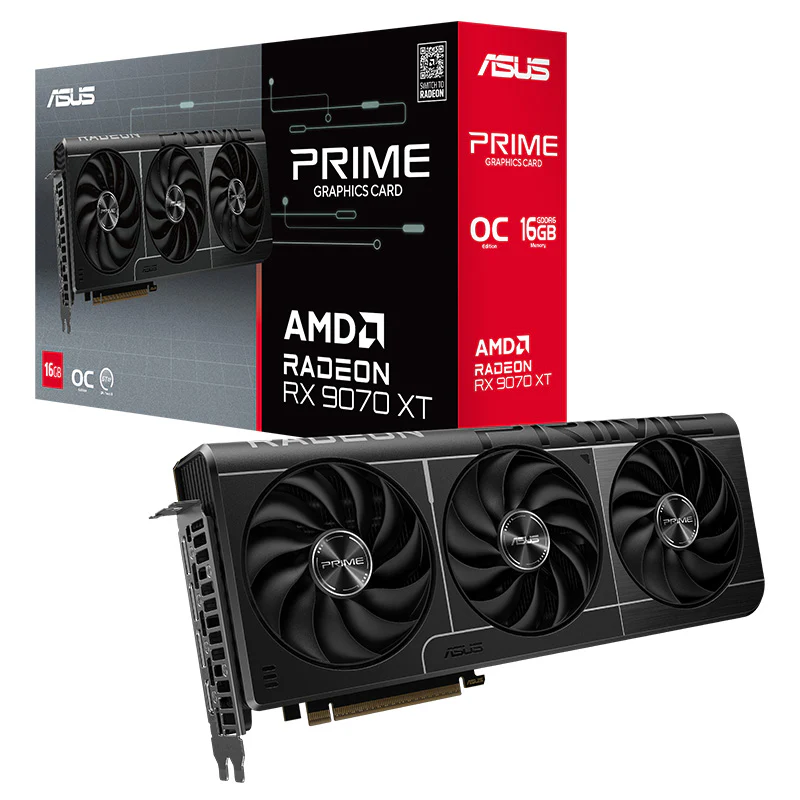

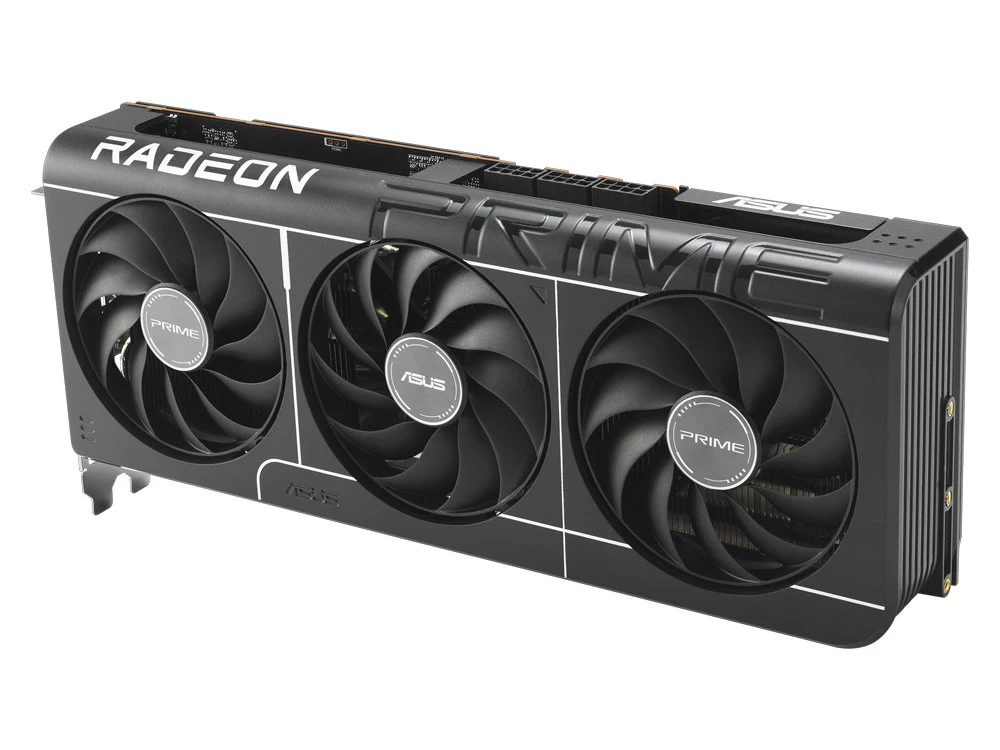

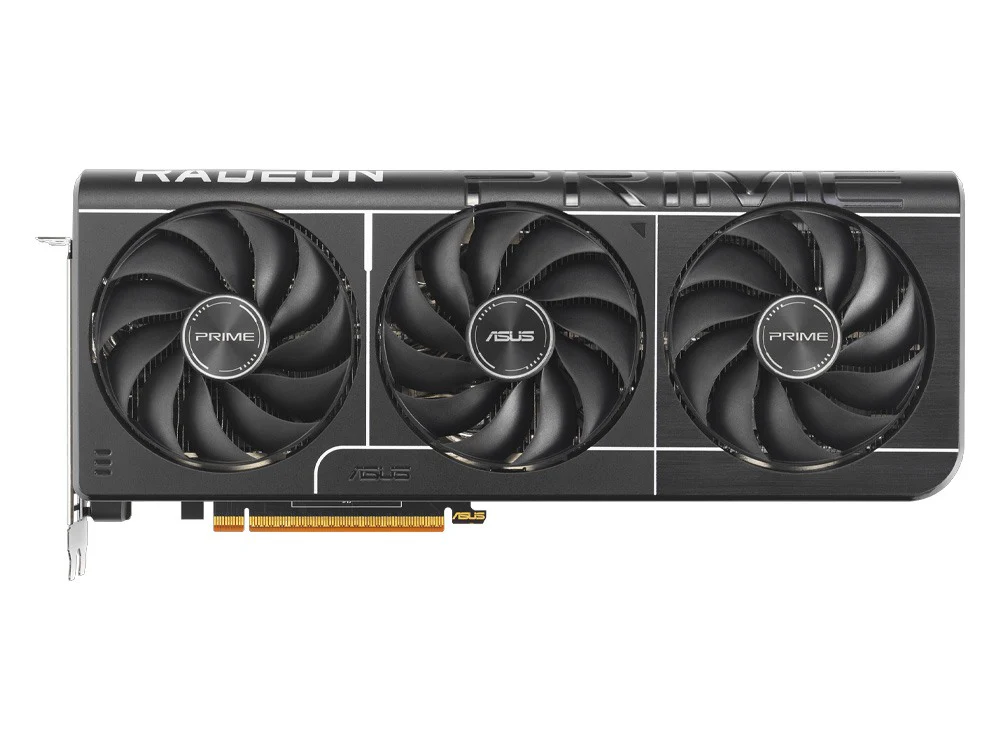

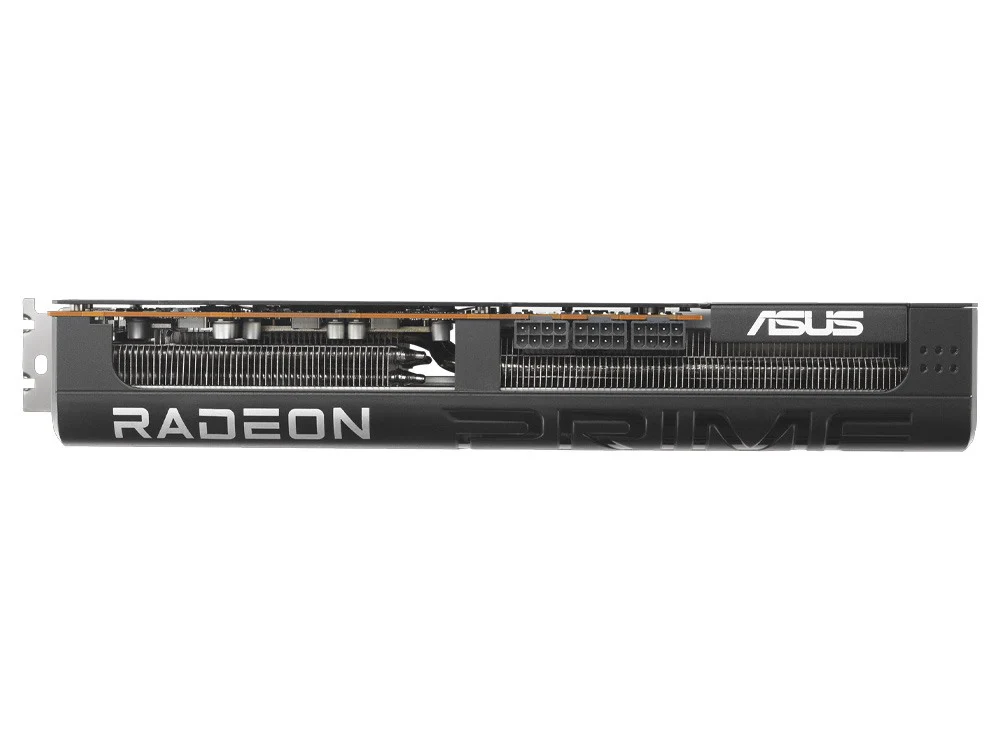

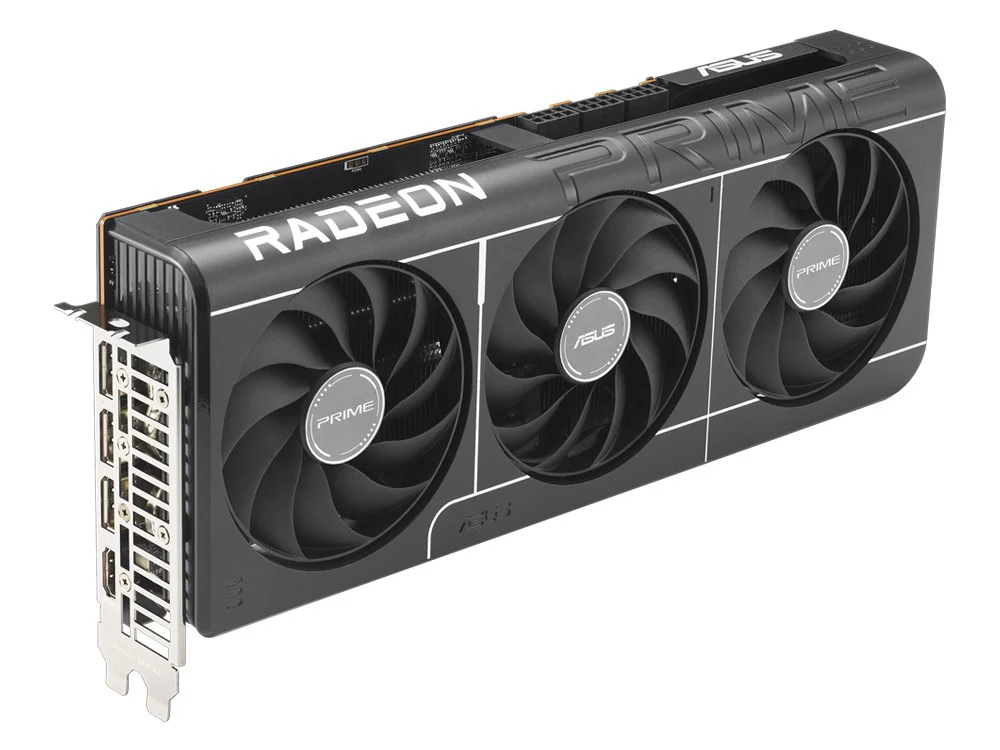

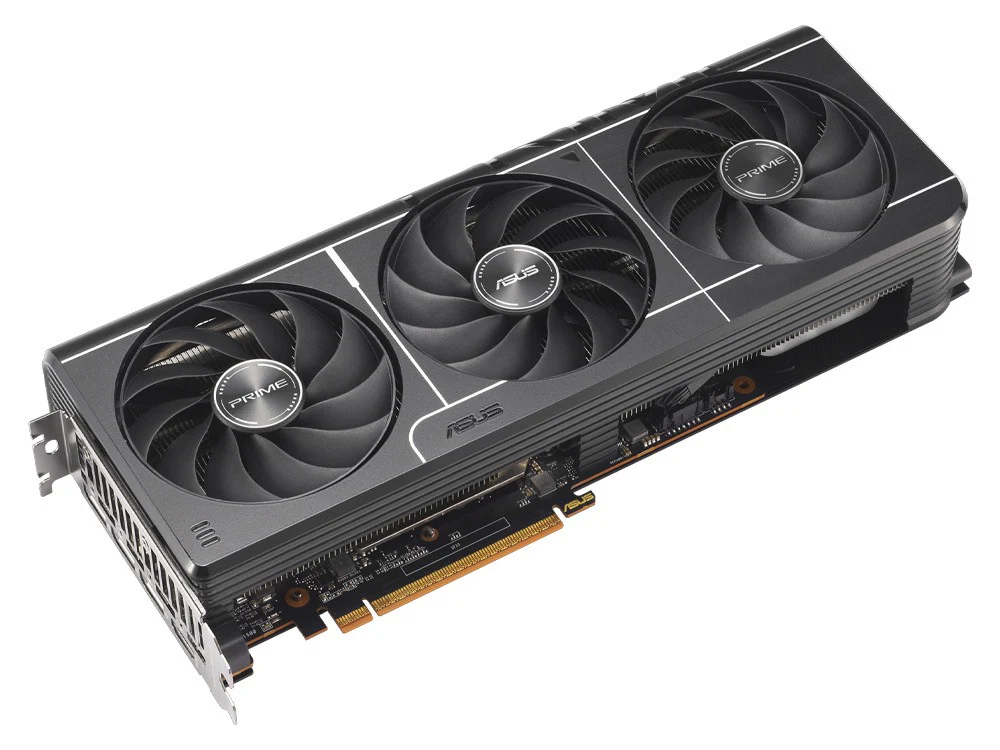

Asus Prime Radeon RX 9070 XT 16G OC Graphics Card (PRIME-RX9070XT-O16G)
SPECIFICATIONS:
Graphic Engine |
AMD Radeon ¢ RX 9070 XT |
Bus Standard |
PCI Express 5.0 |
OpenGL |
OpenGL ®4.6 |
Video Memory |
16GB GDDR6 |
Engine Clock |
OC mode(GPU Tweak III): up to 3030 MHz (Boost Clock)/up to 2480 MHz (Game Clock) Default mode: up to 3010 MHz (Boost Clock)/up to 2460 MHz (Game Clock) |
Stream Processors |
4096 |
Memory Speed |
20 Gbps |
Memory Interface |
256-bit |
Resolution |
Digital Max Resolution 7680 x 4320 |
Interface |
Yes x 1 (Native HDMI 2.1b) Yes x 3 (Native DisplayPort 2.1a) HDCP Support Yes (2.3) |
Maximum Display Support |
4 |
NVlink/ Crossfire Support |
No |
Accessories |
1 x Thank you card 1 x Speedsetup Manual |
Software |
ASUS GPU Tweak III & Drivers: please download all software from the support site. |
Dimensions |
312 x 130 x 50 mm 12.3 x 5.1 x 2.0 inch |
Recommended PSU |
750W |
Power Connectors |
3 x 8-pin |
Slot |
2.5 Slot |
Note |
* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the Choose By Wattage feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html * Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. * Boost Clock is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads. |
