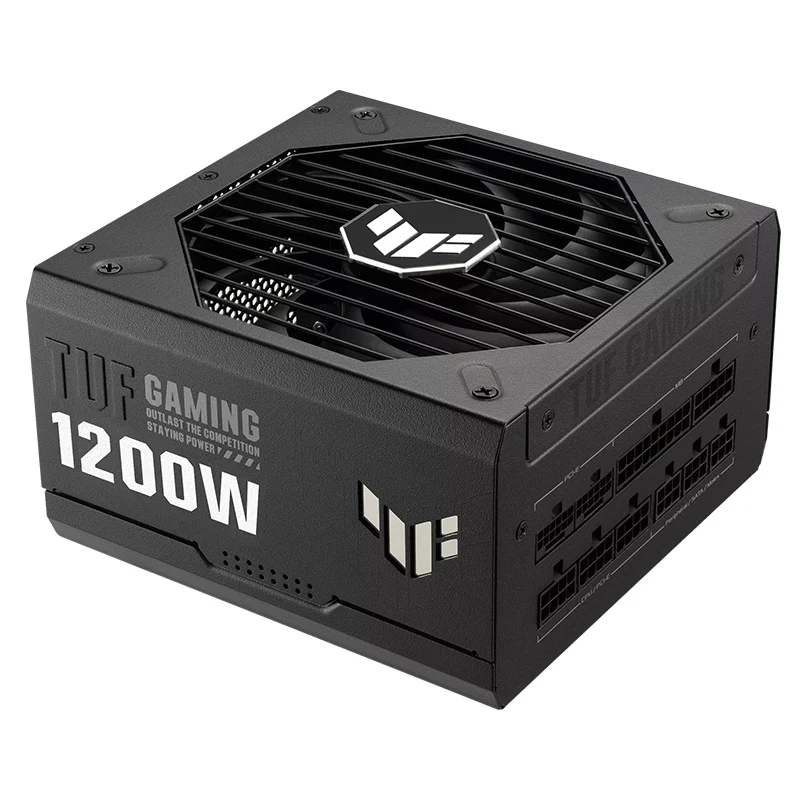

Asus TUF Gaming 1200W 80+ Gold Power Supply (TUF-GAMING-1200G)
| Model | TUF Gaming 1200W Gold |
| Intel Form Factor | ATX12V |
| PFC Type | Active PFC |
| ATX 3.0 | Yes |
| Dimensions | 150 x 150 x 86 mm |
| Efficiency | 80Plus Gold |
| Protection Features | OPP / OVP / UVP / SCP / OCP / OTP |
| Hazardous Materials | ROHS |
| AC Input Range | 100 - 240Vac |
| DC Output Voltage | +3.3V +5V +12V -12V +5Vsb |
| Maximum Load | 25A 25A 99A 0.8A 3A |
| Combined Load | 130W 130W 1188W 9.6W 15W |
| Total Output | 1200W |
| Cable Connectors | MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 16-pin x 2 (both PSU & component side) PCI-E 8-pin x 3 SATA x 5 PERIPHERAL x 4 |
| Package Contents | Power Cord x 1 Motherboard Power Cable x 1 (610mm) CPU Cable x 2 (650mm) PCI-E Gen 5 16-pin Cable x 2 (675mm) PCI-E (16-pin to 8-pin-8-pin) Cable x 1 (675mm) PCI-E 1-to-1 Cable x 1 (675mm) SATA 1-to-2 Cable x 1 (400 + 120mm) SATA 1-to-3 Cable x 1 (400 + 120 + 120mm) Peripheral 1-to-4 Cable x 1 (400 + 150 + 150 + 150mm) TUF Gaming Cable Tie x 3 User Manual x 1 |
| Weight | 2.66kg (single PSU) |
| 0dB Technology | Supported. The fan shuts off entirely when the PSU is under certain load. |
$261.26
Asus TUF Gaming 1200W 80+ Gold Power Supply (TUF-GAMING-1200G)—
$261.26
Asus TUF Gaming 1200W 80+ Gold Power Supply (TUF-GAMING-1200G)
| Model | TUF Gaming 1200W Gold |
| Intel Form Factor | ATX12V |
| PFC Type | Active PFC |
| ATX 3.0 | Yes |
| Dimensions | 150 x 150 x 86 mm |
| Efficiency | 80Plus Gold |
| Protection Features | OPP / OVP / UVP / SCP / OCP / OTP |
| Hazardous Materials | ROHS |
| AC Input Range | 100 - 240Vac |
| DC Output Voltage | +3.3V +5V +12V -12V +5Vsb |
| Maximum Load | 25A 25A 99A 0.8A 3A |
| Combined Load | 130W 130W 1188W 9.6W 15W |
| Total Output | 1200W |
| Cable Connectors | MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 16-pin x 2 (both PSU & component side) PCI-E 8-pin x 3 SATA x 5 PERIPHERAL x 4 |
| Package Contents | Power Cord x 1 Motherboard Power Cable x 1 (610mm) CPU Cable x 2 (650mm) PCI-E Gen 5 16-pin Cable x 2 (675mm) PCI-E (16-pin to 8-pin-8-pin) Cable x 1 (675mm) PCI-E 1-to-1 Cable x 1 (675mm) SATA 1-to-2 Cable x 1 (400 + 120mm) SATA 1-to-3 Cable x 1 (400 + 120 + 120mm) Peripheral 1-to-4 Cable x 1 (400 + 150 + 150 + 150mm) TUF Gaming Cable Tie x 3 User Manual x 1 |
| Weight | 2.66kg (single PSU) |
| 0dB Technology | Supported. The fan shuts off entirely when the PSU is under certain load. |
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| Model | TUF Gaming 1200W Gold |
| Intel Form Factor | ATX12V |
| PFC Type | Active PFC |
| ATX 3.0 | Yes |
| Dimensions | 150 x 150 x 86 mm |
| Efficiency | 80Plus Gold |
| Protection Features | OPP / OVP / UVP / SCP / OCP / OTP |
| Hazardous Materials | ROHS |
| AC Input Range | 100 - 240Vac |
| DC Output Voltage | +3.3V +5V +12V -12V +5Vsb |
| Maximum Load | 25A 25A 99A 0.8A 3A |
| Combined Load | 130W 130W 1188W 9.6W 15W |
| Total Output | 1200W |
| Cable Connectors | MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 16-pin x 2 (both PSU & component side) PCI-E 8-pin x 3 SATA x 5 PERIPHERAL x 4 |
| Package Contents | Power Cord x 1 Motherboard Power Cable x 1 (610mm) CPU Cable x 2 (650mm) PCI-E Gen 5 16-pin Cable x 2 (675mm) PCI-E (16-pin to 8-pin-8-pin) Cable x 1 (675mm) PCI-E 1-to-1 Cable x 1 (675mm) SATA 1-to-2 Cable x 1 (400 + 120mm) SATA 1-to-3 Cable x 1 (400 + 120 + 120mm) Peripheral 1-to-4 Cable x 1 (400 + 150 + 150 + 150mm) TUF Gaming Cable Tie x 3 User Manual x 1 |
| Weight | 2.66kg (single PSU) |
| 0dB Technology | Supported. The fan shuts off entirely when the PSU is under certain load. |
