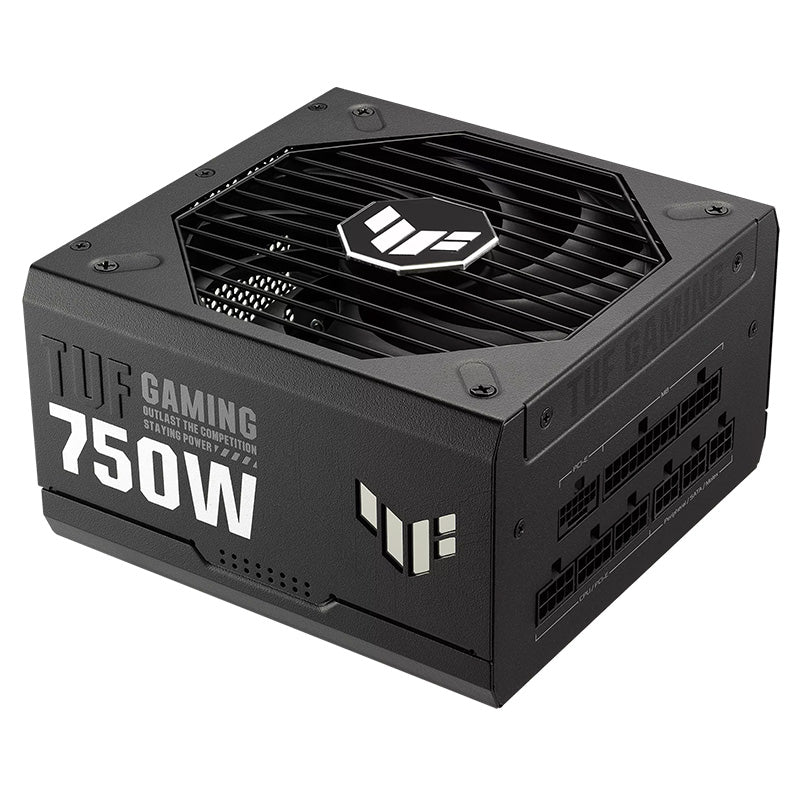

ASUS TUF-GAMING-750G 80+ Gold Rated Power Supply

Intel Form Factor

ATX12V

ATX 3.0

Yes

Dimensions

150 x 150 x 86 mm

Efficiency

80Plus Gold

Protection Features

OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials

ROHS

AC Input Range

100-240Vac

DC Output Voltage

+3.3V +5V +12V -12V +5Vsb

Maximum Load

25A25A62A 0.8A 3A

Combined Load

130W 130W 744W 9.6W 15W

Total Output

750W

Cable Connectors

MB 24/20-pin x 1

CPU 4+4-pin x 2

PCI-E 16-pin x 1 (both PSU & component side)

PCI-E 8-pin x 3

SATA x 5

PERIPHERAL x 4

Package Contents

Power Cord x 1

Motherboard Power Cable x 1 (610mm)

CPU Cable x 2 (650mm)

PCI-E Gen 5 16-pin Cable x 1 (675mm)

PCI-E 1-to-1 Cable x 1 (675mm)

PCI-E 1-to-2 Cable x 1 (675mm)

SATA 1-to-2 Cable x 1 (400+120mm)

SATA 1-to-3 Cable x 1 (400+120+120mm)

Peripheral 1-to-4 Cable x 1 (400+150+150+150mm)

TUF Gaming Cable tie x 3

User Manual x 1

Weight

2.38kg (single PSU)

0dB Fan Button

No
