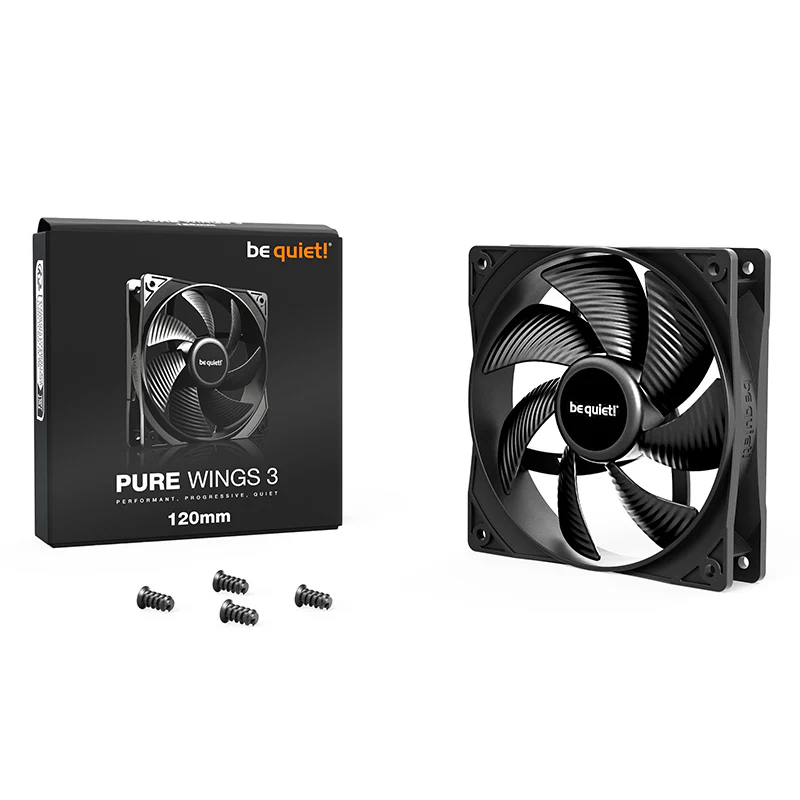

Be quiet! Pure Wings 3 120mm Case Fan (BL104)

Dimensions (mm)

120

Color option

Black

Fan speed @ 100% PWM / 12V (rpm)

1600

Noise level @ 100% PWM / 12V (dB(A))

25.5

Air Flow @ 100% PWM / 12V (CFM / m3/h)

49.9 / 84.8

Air Pressure @ 100% PWM / 12V (mm H2O)

1.45

MECHANICAL SPECIFICATIONS

Dimensions (L x W x H), (mm)

120 x 120 x 25

Weight incl. fixed cables (g)

147

Bearing technology

Rifle

Motor technology

4-pole fan motor

Screw fixing

œ“

CABLES / CONNECTORS

Connector

3-pin

Cable length (mm)

460

PERFORMANCE / NOISE

Air Flow @ 100% PWM / 12V (CFM / m3/h)

49.9 / 84.8

Air Pressure @ 100% PWM / 12V (mm H2O)

1.45

Noise level @ 100% PWM / 12V (dB(A))

25.5

Lifespan (h / 25 °C)

80,000

ELECTRICAL SPECIFICATIONS

Rated Voltage DC (V)

12

Operating Voltage DC (V)

5 - 13.2

Current consumption (A)

0.10

Safety current (A)

0.20

Input power (W)

2.4

ACCESSORIES

Screws

4

SAFETY CERTIFICATION

Approvals

CE / RoHS / RU / UKCA / WEEE

ENVIRONMENTAL DIRECTIVES

RoHS

œ“

WEEE

œ“

Triman

œ“
