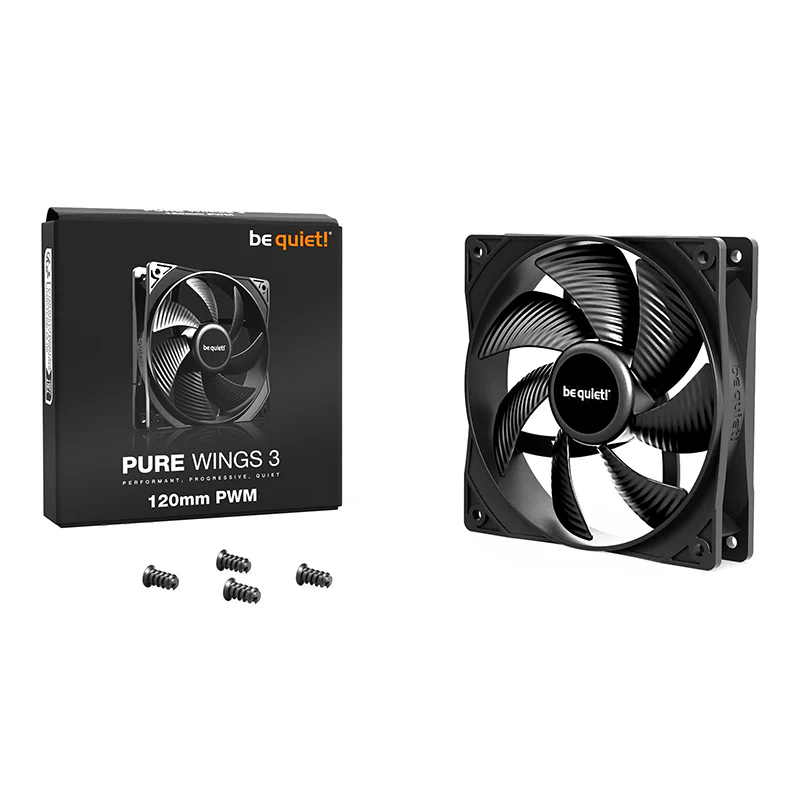

Be quiet! Pure Wings 3 120mm PWM Fan - Black (BL105)
SPECIFICATIONS:
GENERAL |
|
Dimensions (mm) |
120 |
Color option |
Black |
Fan speed @ 100% PWM / 12V (rpm) |
1600 |
Noise level @ 100% PWM / 12V (dB(A)) |
25.5 |
Air Flow @ 100% PWM / 12V (CFM / m3/h) |
49.9 / 84.8 |
Air Pressure @ 100% PWM / 12V (mm H2O) |
1.45 |
MECHANICAL SPECIFICATIONS |
|
Dimensions (L x W x H), (mm) |
120 x 120 x 25 |
Weight incl. fixed cables (g) |
148 |
Bearing technology |
Rifle |
Motor technology |
4-pole fan motor |
Screw fixing |
|
CABLES / CONNECTORS |
|
Connector |
4-pin PWM |
Cable length (mm) |
460 |
PERFORMANCE / NOISE |
|
Air Flow @ 100% PWM / 12V (CFM / m3/h) |
49.9 / 84.8 |
Air Pressure @ 100% PWM / 12V (mm H2O) |
1.45 |
Noise level @ 100% PWM / 12V (dB(A)) |
25.5 |
Lifespan (h / 25 °C) |
80,000 |
ELECTRICAL SPECIFICATIONS |
|
Rated Voltage DC (V) |
12 |
Operating Voltage DC (V) |
5 - 13.2 |
Current consumption (A) |
0.10 |
Safety current (A) |
0.20 |
Input power (W) |
2.4 |
ACCESSORIES |
|
Screws |
4 |
SAFETY CERTIFICATION |
|
Approvals |
CE / RoHS / RU / UKCA / WEEE |
ENVIRONMENTAL DIRECTIVES |
|
RoHS |
|
WEEE |
|
Triman |
|
