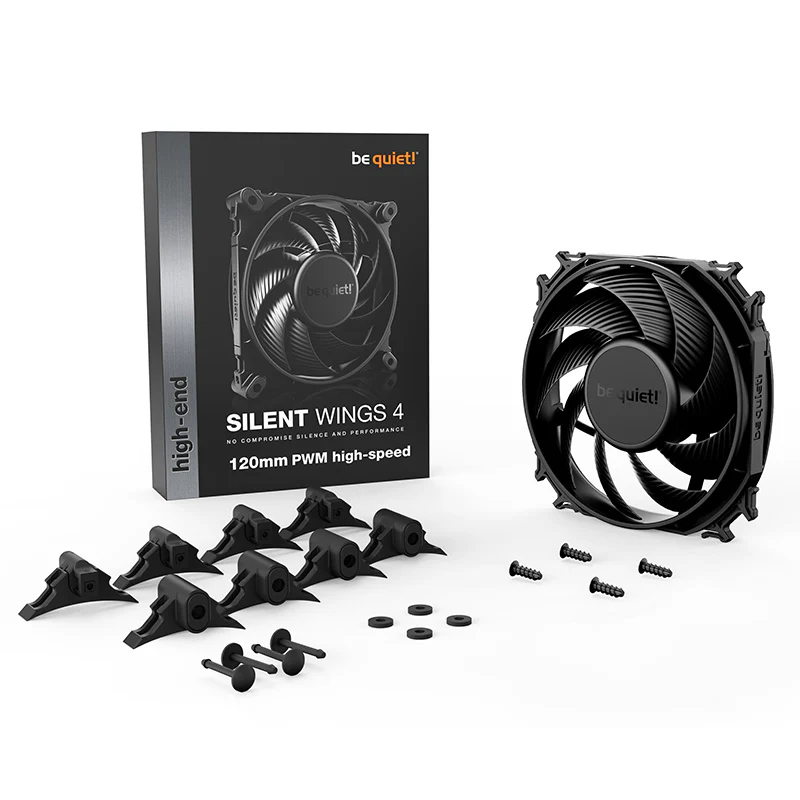

Be quiet! Silent Wings 4 120mm PWM High Speed Fan - Black (BL094)

Model

Silent Wings 4 120mm PWM high-speed

Dimensions (mm)

120

Color option

Black

Fan speed at 100% PWM / 12V (rpm)

2500

Noise level at 100% PWM / 12V (dB(A))

31.2

Airflow at 100% PWM / 12V (CFM / m3/h)

76.7 / 130.3

Air Pressure at 100% PWM / 12V (mm H2O)

3.96

MECHANICAL SPECIFICATIONS

Dimensions (L x W x H), (mm)

120 x 120 x 25

Weight incl. fixed cables (g)

190

Bearing technology

FDB

Motor technology

6-pole fan motor

Push pin fixing

œ“

Screw fixing

œ“

CABLES / CONNECTORS

Connector

4-pin PWM

Cable length (mm)

500

Cable sleeve

œ“

PERFORMANCE / NOISE

Airflow at 100% PWM / 12V (CFM / m3/h)

76.7 / 130.3

Air Pressure at 100% PWM / 12V (mm H2O)

3.96

Noise level at 100% PWM / 12V (dB(A))

31.2

Lifespan (h / 25 °C)

300,000

Zero RPM mode

œ“

ELECTRICAL SPECIFICATIONS

Rated Voltage DC (V)

12

Operating Voltage DC (V)

5 - 13.2

Current consumption (A)

0.20

Input current (A)

0.20

Safety current (A)

0.20

Input power (W)

2.4

ACCESSORIES

Screws

4

Push pins

4

hard plastic washer

4

Others

Rubber & hard plastic mountings
