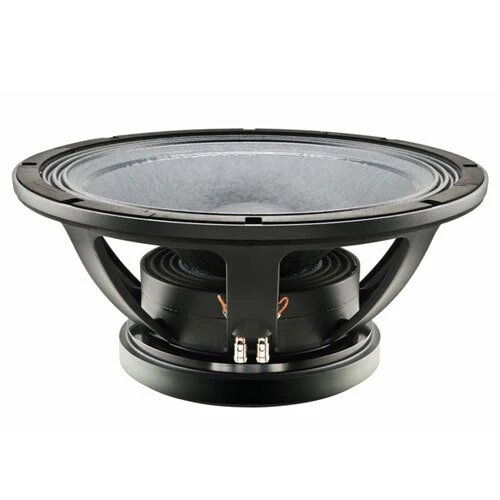

Celestion T5806: 18" 1600W Speaker 8OHM
18" ferrite magnet, cast aluminium chassis LF driver delivering 1600Wrms (AES Standard) power handling and 97dB sensitivity.
5" high temperature, dual layer, Inside/Outside voice coil for higher efficiency, preventing sensitivity loss through thermal compression.
Vented front plate increases airflow to provide enhanced cooling.
Twin demodulation rings reduce flux modulation, minimizing electromagnetic distortion.
Double suspension and "multi-roll" surround provide exceptional linearity at extremes of cone excursion.
Key Features:
- Nominal diameter 460mm/18in
- Power rating 1600Wrms
- Nominal impedance 8O
- Sensitivity 97dB
- Frequency range 25Hz-1500Hz
- Voice coil diameter 125mm/5in
- Chassis type Cast aluminium
- Magnet type Ferrite
- Coil material Round copper
- Former material Glass fibre
- Cone material Carbon and Kevlar loaded paper
- Surround material Cloth sealed
- Suspension Double
- Xmax 9mm/0.35in
- Gap depth 12mm/0.47in
- Voice coil winding width 30mm/1.18in
What's in the box:
-
1x Celestion 18" 1600W Speaker 8OHM
