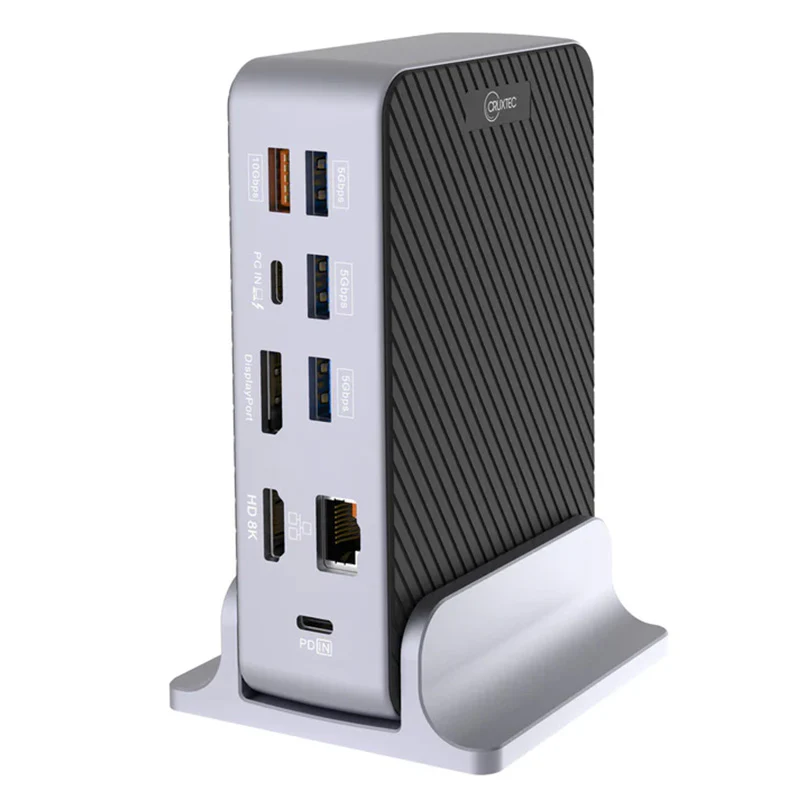

Cruxtec Universal 15-in-1 USB-C Multifunctional Docking Station (CDK15-BK)

Interface

1x HDMl Single Output Supports up to 8K@30Hz / 4k@120Hz

1x DP Single Output Supports up to 8K@30Hz / 4k@120Hz

1x 100W ( 20V5A MAX ) PD Charging Port

1x USB-C Port for Host Connection ( Supports 60W power charging output )

1x Gigabit Ethernet Port ( Support 10M/100M/1000M transmission rate )

4x USB3.0 5Gbps Type-A Ports

1x USB3.1 10Gbps Type-A Port

2x USB3.1 10Gbps Type-C Ports

1x Micro SD3.0 / 1xSD3.0 (Supports up to 130Mpbs/S transmission rate )

1x 3.5mm Audio Jack ( Supports 96 KHz 24-bit sample rate and external audio codecs )

Chipsets

VMM6210+GL3590Q8+GL3510*2+GL3231+RTL8153B+CS202

Material

Aluminum alloy+ABS

Cable Length

100cm

Colour

Metallic Grey + Black

Platforms

Windows / Mac OS / Chromebook

Supports MST on Windows; Supports resolution up to 4K@60Hz in multi-screen output; The device needs to support HBR3 bandwidth or above.

On Mac OS with M1 CPU only supports 1 external monitor display in USB-C Display Alt mode; Supports resolution up to 4K@120Hz.

On Mac OS with M2/M3 CPU supports multi-screen mirroring or extending; Supports resolution up to 4K@60Hz in multi-screen output.

Product comes with

1* USB4 20GBPS C to C Cable.
