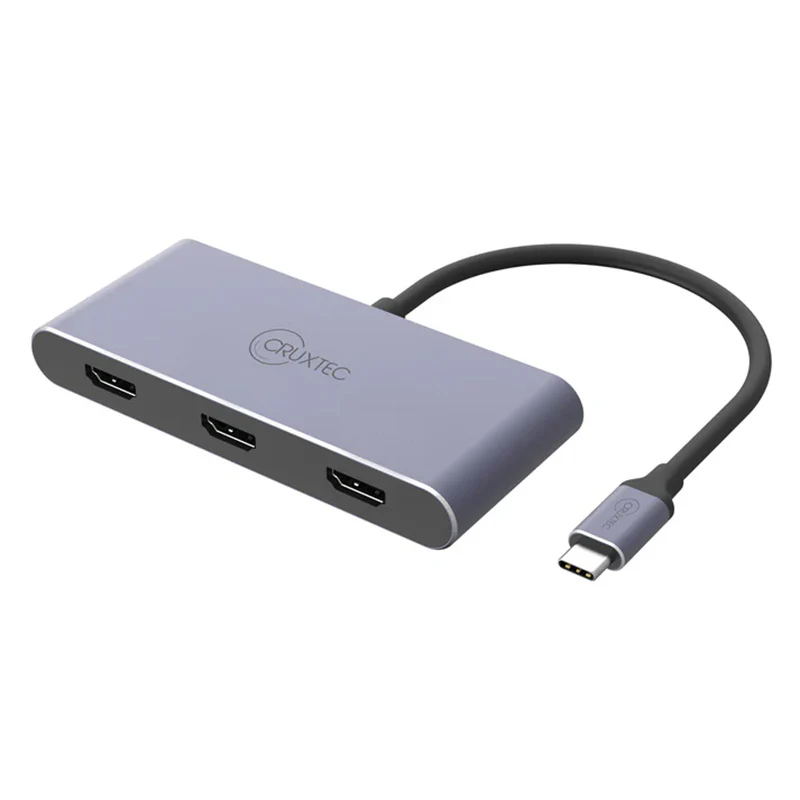

Cruxtec USB-C to 3 x HDMI Multi-Monitor 8K Adapter (CT3H-8K-SG)

Ports

1 x USB-C input for host connection

3 x HDMI outputs, each port supports up to 4K@144Hz/8K@60Hz

1 x Micro USB 5V1A Charging Port

Support

Supports Display Stream Compression (DSC).

Supports MST/SST on Windows; Supports resolution up to 4K@120Hz in dual-output or 4K@60Hz in triple-port output; The device needs to support HBR3 bandwidth or above.

On Mac OS with M1 CPU only supports 1 external monitor display; Supports resolution up to 4K@144Hz.

On Mac OS with M2/M3 CPU supports multi-screen mirroring or extending; Supports resolution up to 4K@144Hz in multi-port output.

Chip solution

Realtek

Cable length

15 cm

Notes

Using the same model of monitors, updating the graphics card driver will reduce compatibility issues
