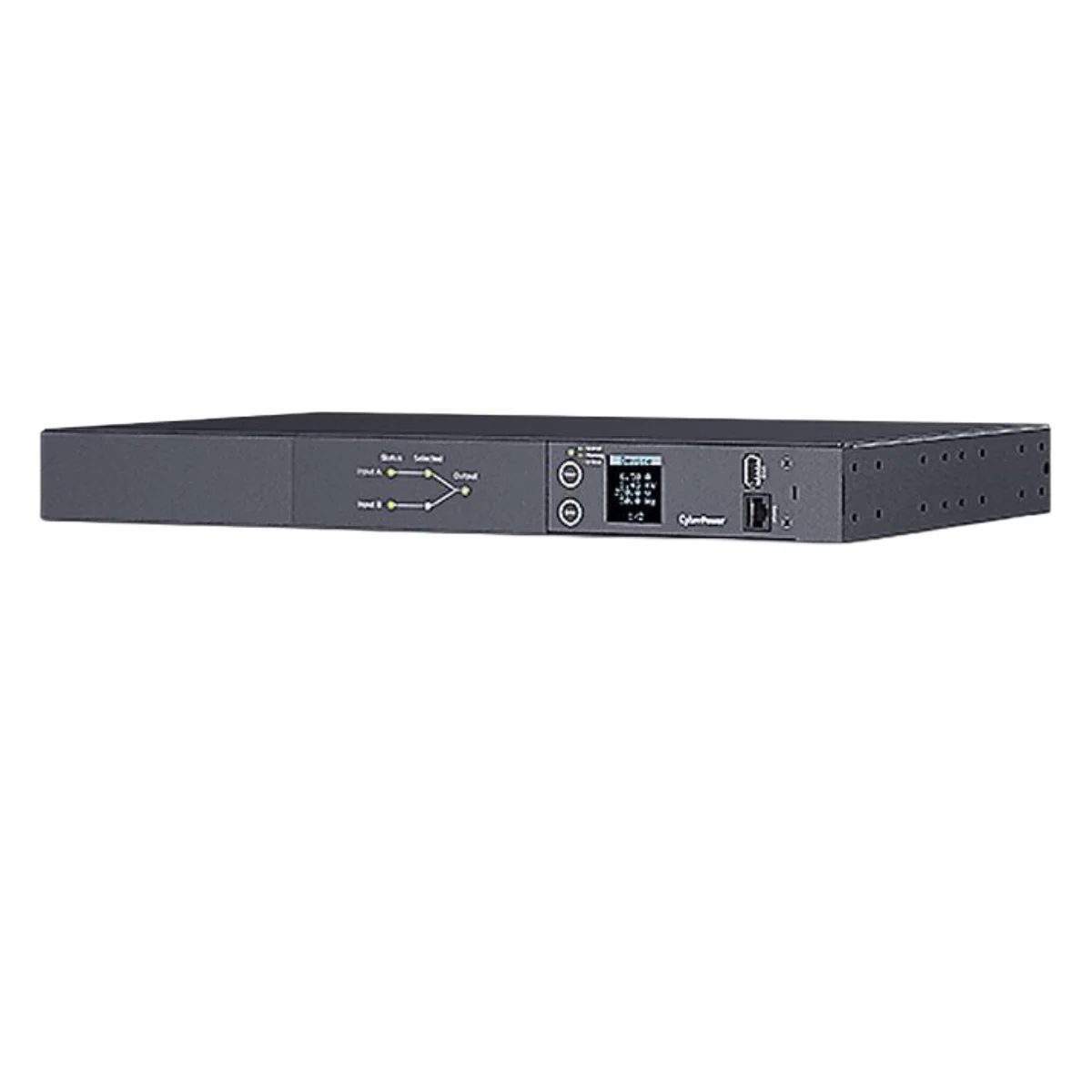

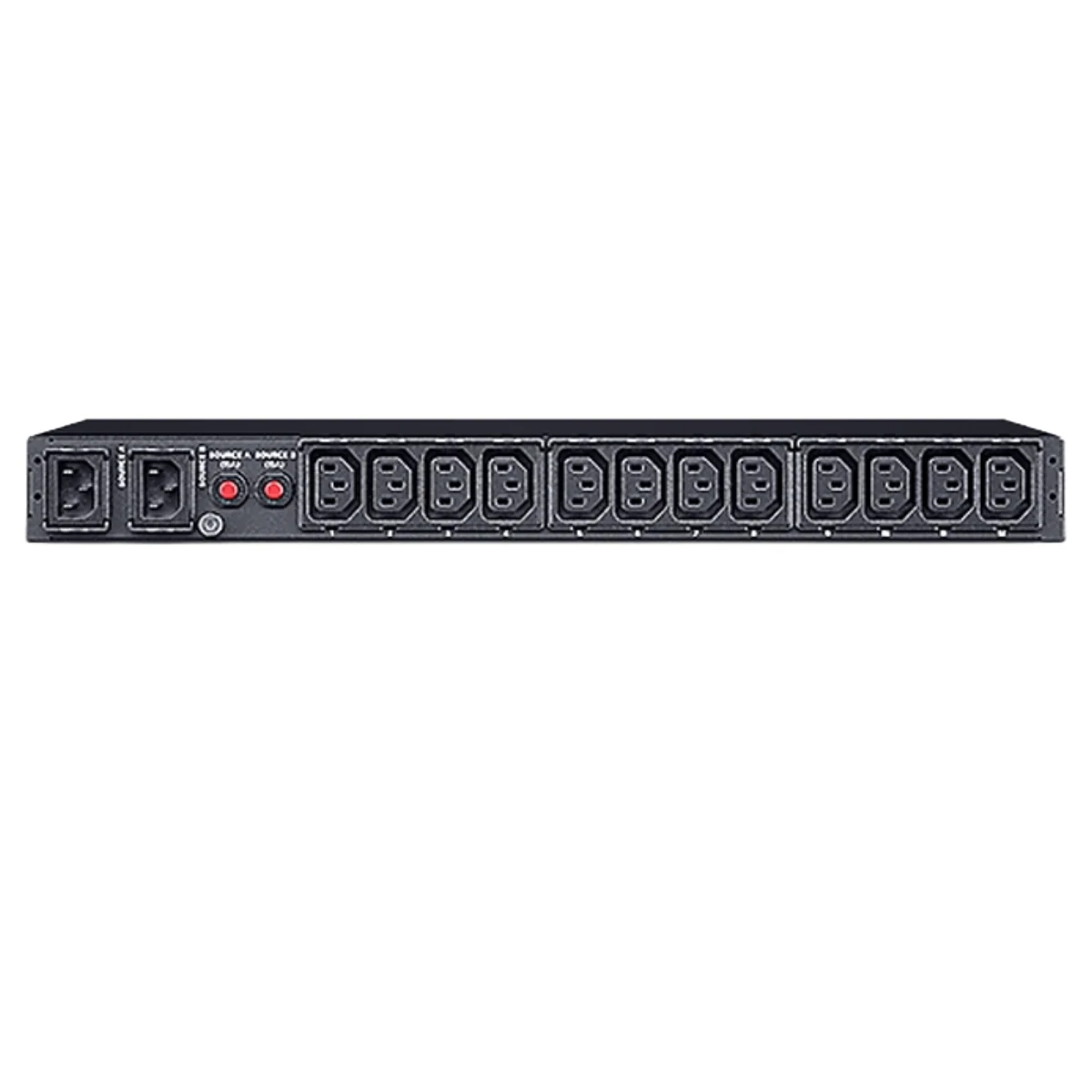

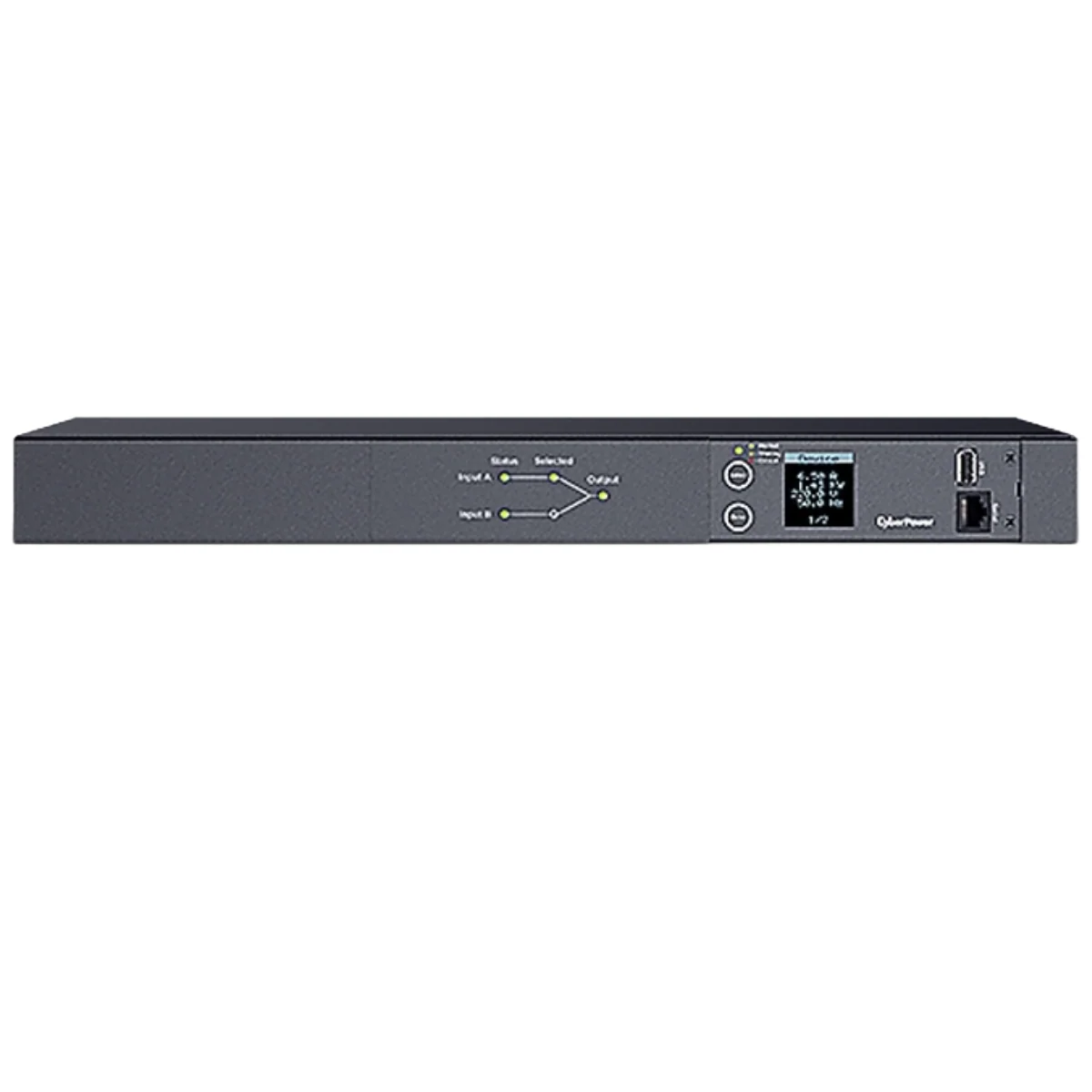

CyberPower PDU24004 Metered ATS Power Distribution Unit 10 Amp

CP Metered ATS 10amp

Features:

• Real-time Local Monitoring
• Quick Transfer Time (Total < 10 ms)
• Digital Real-time Load Display
• Hot-swappable LCD Design
• Firmware Upgrade via USB
• Adjustable Mounting Brackets
• IEC Receptacle Locking
• Dual Inputs
• Industrial-grade Metal Housing
• User Configurable Color LCD
• LED Status Indicator
• User-upgradeable Firmware
• Cord Retention Tray

What's in the box?

1 x PDU24004

1 x User Manual

1 x Cord Retention Tray

1 x Mounting Brackets

1 x Cable Ties

1 x Screw Kit

1 x Power Cord

1 x Serial Cable

• Phase: Single Phase
• Dual Power Inputs: Yes
• Nominal Input Voltage ( Vac ): 200 - 240
• Input Frequency ( Hz ): 50 / 60
• Maximum Input Current ( A ): 12 (UL) | 10 (CE)
• Overload Protection: Circuit Breaker
• Input Connector Type: IEC C14 x 2
• Power Cord Length: 3.05m
• Output Voltage ( V ): Depends on Input
• Outlets - # of Bank(s): 1
• Outlet(s) - Total: 12
• Outlet(s) - Rear: 12
• Outlet Type: IEC C13 x 12
• LCD Information Display: Input Voltage (Volts) | Input Frequency (Hz) | Current Level (Amps) | Power Consumption (Kilowatts) | Serial Number | Hardware Version | Firmware Version
• Hot-swappable LCD Module: Yes
• LCD Setting & Control: Preferred Source | Source Configuration | Load Configuration | LCD Settings | Reset / Reboot
• LED Indicators: PDU Status | Source Status | Load
• Connectivity Port: RJ45 (for Serial)
• User-upgradeable Firmware: Yes
• Installed Rack Height (U): 1
• Form Factor: 1U Horizontal Rackmount
• Enclosure Construction: Steel
• Cord Retention Tray: Yes
• IEC Receptacle Locking: Yes
• External Site Ground Pin: Yes
• Adjustable Mounting Brackets: 1 Set
• Dimensions: 433 x 44 x 215mm
• Weight: 3.5kg
• Certifications: CE | FCC Class A | UL62368 | EN 55032 Class A | IEC 62368 | RoHS
• SKU PDU24004
