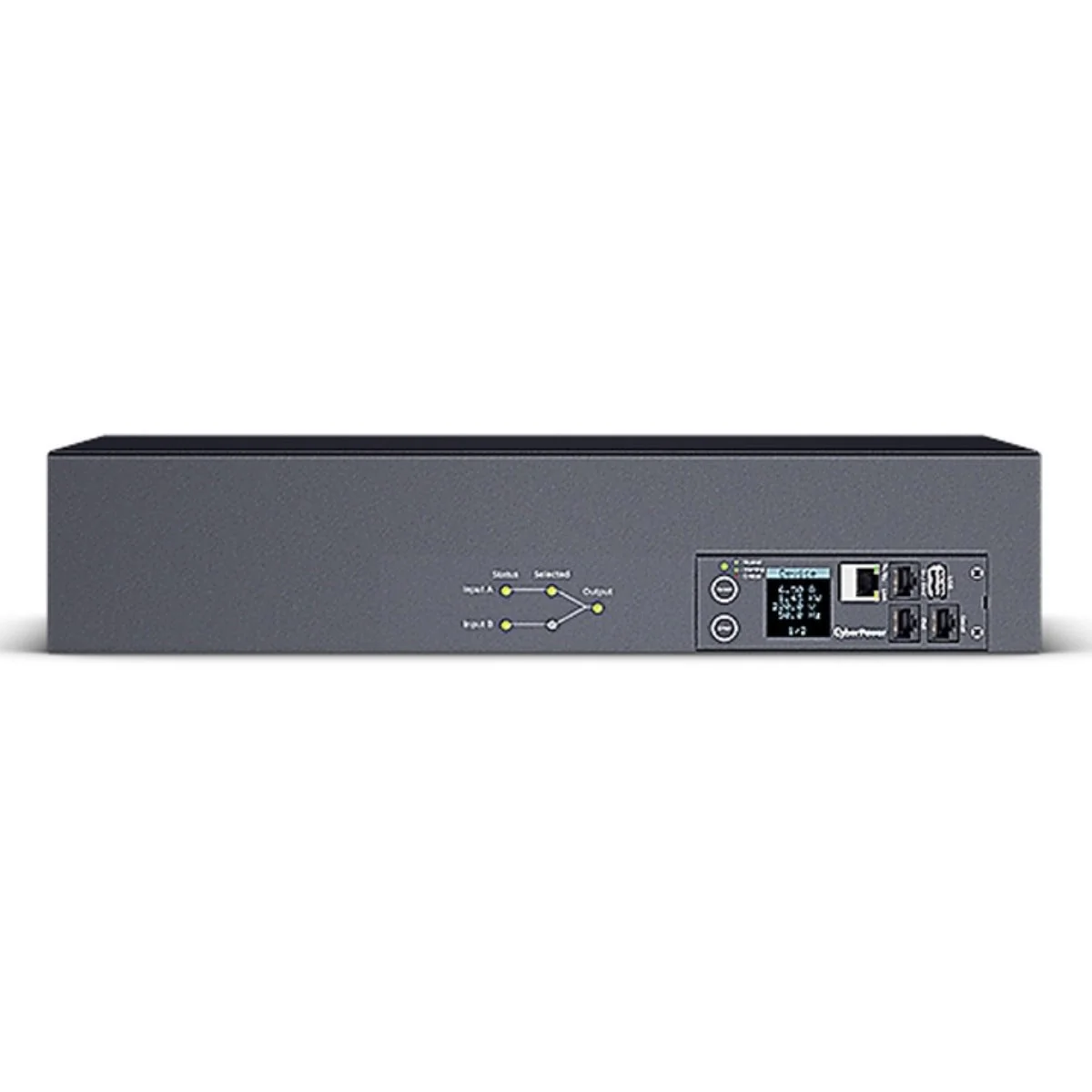

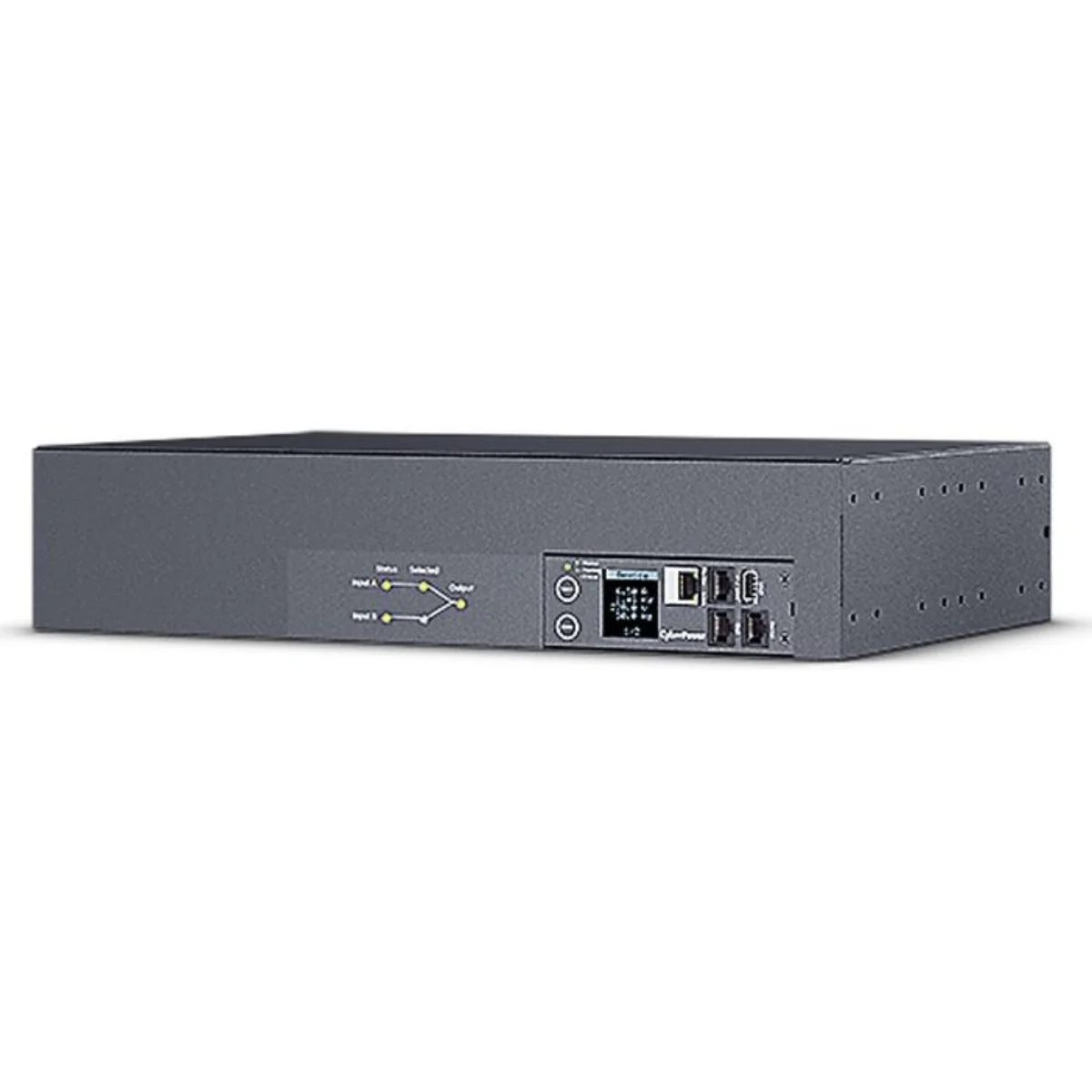

CyberPower PDU44302 Switched ATS Power Distribution Unit 32 Amp

CP Switched ATS 32Amp

Features:

• Phase: Single Phase
• Dual Power Inputs: Yes
• Nominal Input Voltage ( Vac ): 200 - 240
• Input Frequency ( Hz ): 50 / 60
• Maximum Input Current ( A ): 32
• Input Connector Type: IEC 60309 32A x 2
• Power Cord Length: 3.05m
• Output Voltage ( V ): Depends on Input
• Overload Protection: Circuit Breaker
• Over Current Protection (Each Bank) ( A ): 20
• Outlets - # of Bank(s): 2

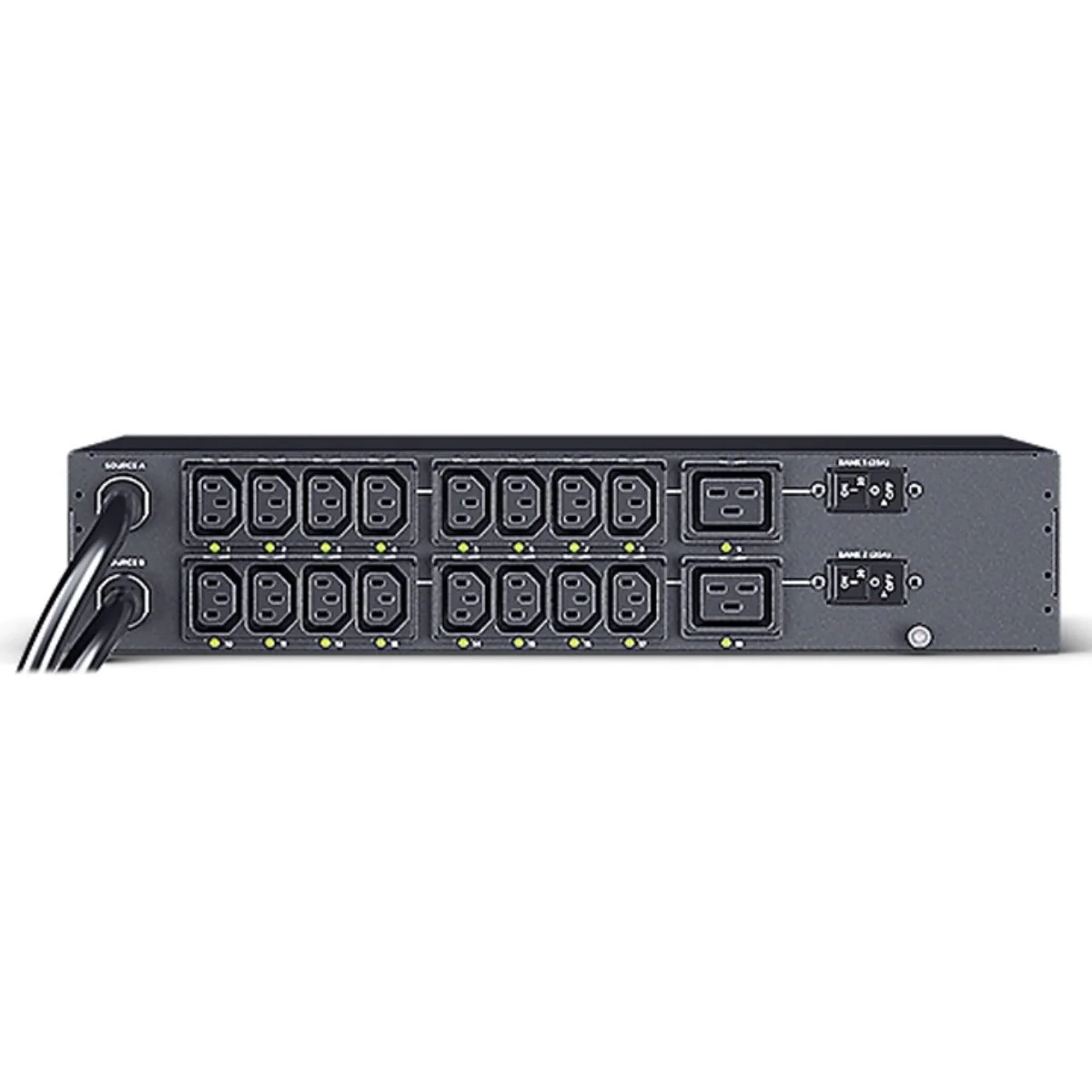

• Outlet(s) - Total: 18
• Outlet(s) - Rear: 18
• Outlet Type: IEC C19 x 2 | IEC C13 x 16
• Remote Individual Outlet Control: Yes
• LCD Information Display: Input Voltage (Volts) | Input Frequency (Hz) | Current Level (Amps) | Power Consumption (Kilowatts) | Network Information | Serial Number | Environment Status | Hardware Version | Firmware Version
• Hot-swappable LCD Module: Yes
• LCD Setting & Control: Preferred Source | Source Configuration | Load Configuration | Outlet Control | LCD Settings | Reset / Reboot
• LED Indicators: PDU Status | Source Status | Load | Tx/Rx | Link | Outlet
• A-type USB Port: Yes
• Connectivity Port: RJ45 | RJ45 (for Serial) | RJ45 (for ENVIROSENSOR/ Daisy Chain (In)) | RJ45 (for Daisy Chain (Out))
• Environmental Sensor Supported: Yes
• User-upgradeable Firmware: Yes
• Power Management Software: PowerPanel Business (Recommended for small-medium scale management) | PowerPanel Enterprise (Recommended for large scale management)


• Supported Protocols: IPv4/v6 | SNMPv1/v3 | HTTP/HTTPs | TCP/IP | UDP | DHCP | NTP | DNS | SMTP | SSH | SSL | TLS | Telnet | FTP | and Syslog
• Authentication: RADIUS | LDAP | LDAPS | Windows AD
• Installed Rack Height (U): 2
• Form Factor: 2U Horizontal Rackmount
• Enclosure Construction: Steel
• Cord Retention Tray: Yes
• IEC Receptacle Locking: Yes
• External Site Ground Pin: Yes
• Adjustable Mounting Brackets: 1 Set
• Dimensions: 433 x 88 x 215mm
• Weight: 7.8kg
• Certifications: CE | FCC Class A | UL62368 | EN 55032 Class A | IEC 62368 | RoHS
• Resources & Downloads
• SKU PDU44302
