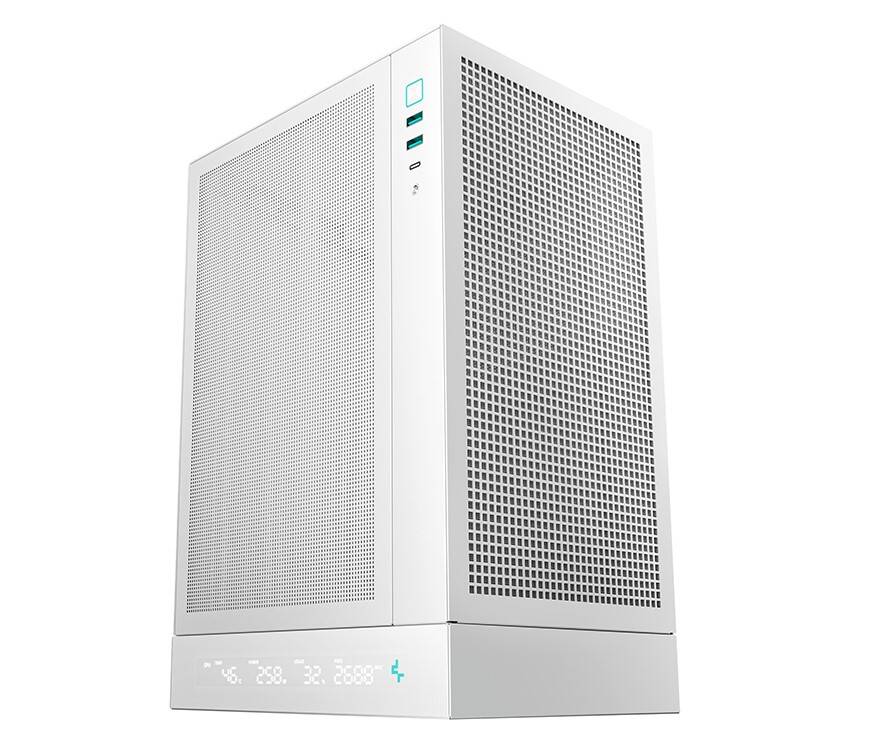

DeepCool CH170 DIGITAL WHT ITX Case with Digital Status Display

The CH170 DIGITAL WH is a vertical ITX case that has all the hallmarks of a high-airflow DeepCool case but in a tiny footprint. The internal layout provides a lot of flexibility for coolers and PSU options.

Technical Spec:

• Product Dimensions: 380x200x250mm(L×W×H)
• Net Weight: 3.5Kg Materials ABS+SPCC
• Motherboard Support: Mini-ITX
• Front I/O Ports: USB3.0×2、Audio×1、Gen2 TypeC×1
• 3.5' Drive Bays: 1（2.5 SSD / 3.5 HDD / Front 120 FAN :Choose one of the three）
• 2.5' Drive Bays: 1（2.5 SSD / 3.5 HDD / Front 120 FAN :Choose one of the three）
• Expansion Slots: 3 Slots
• Pre-Installed Fans: None

Fan Support:

• Top:1×120 mm
• Front: NA
• Rear: 2×120 mm
• Bottom:1×120 mm
• Side : 2×120 mm

Radiator Support:

• Side : 240mm

CPU Cooler Height Limit: 172mm

GPU Size Limit Length: SFX/SFX-L: 305mm / ATX: 230mm

Height: 138mm

Width: 65mm (3 Slots)

Power Supply Type: ATX PS2（maximum length: 140mm）/ SFX / SFX-L
