Name: DZOFilm Arles 5 Fullframe Lens Kit - Set A (feet)
Brand: JB Hi-Fi
SKU: dzofilm-arles-5-fullframe-lens-kit-set-a-feet
Availability: InStock

✨ New Arrivals Just Dropped!Explore

Home Store

DZOFilm Arles 5 Fullframe Lens Kit - Set A (feet)

Features

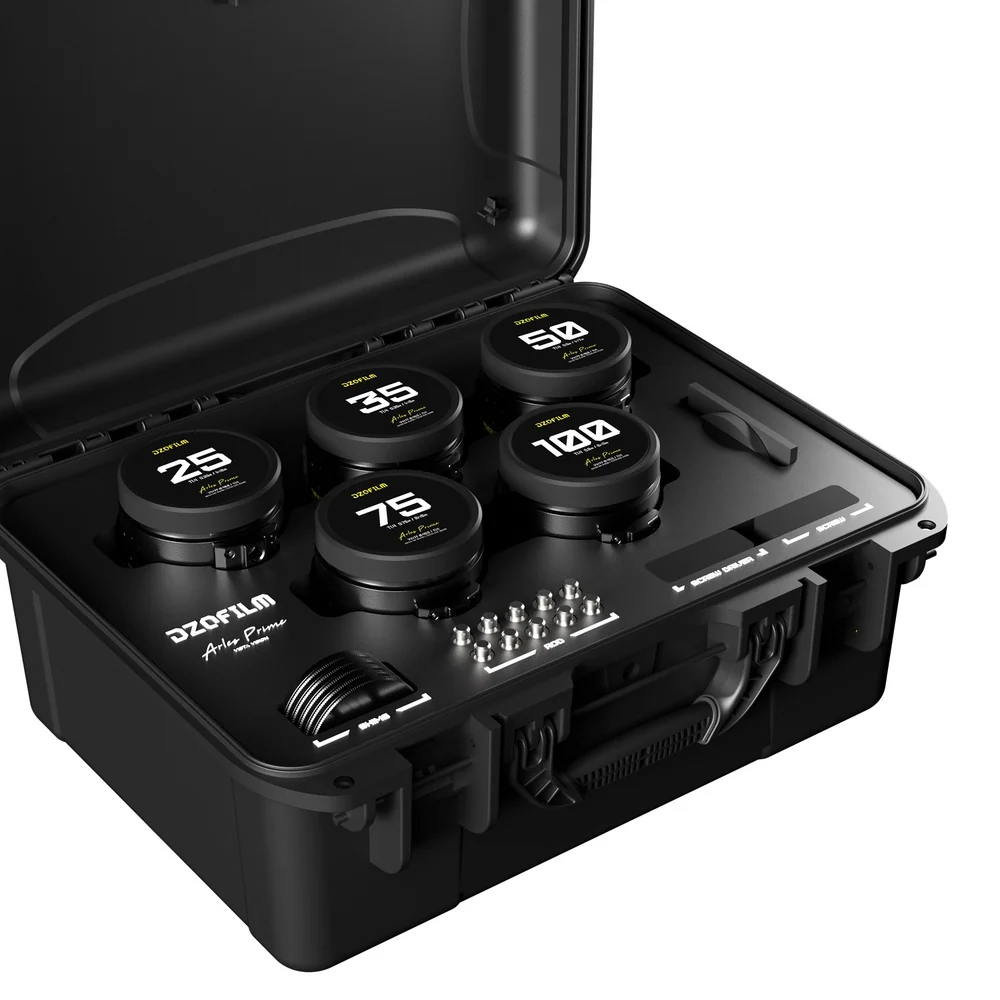

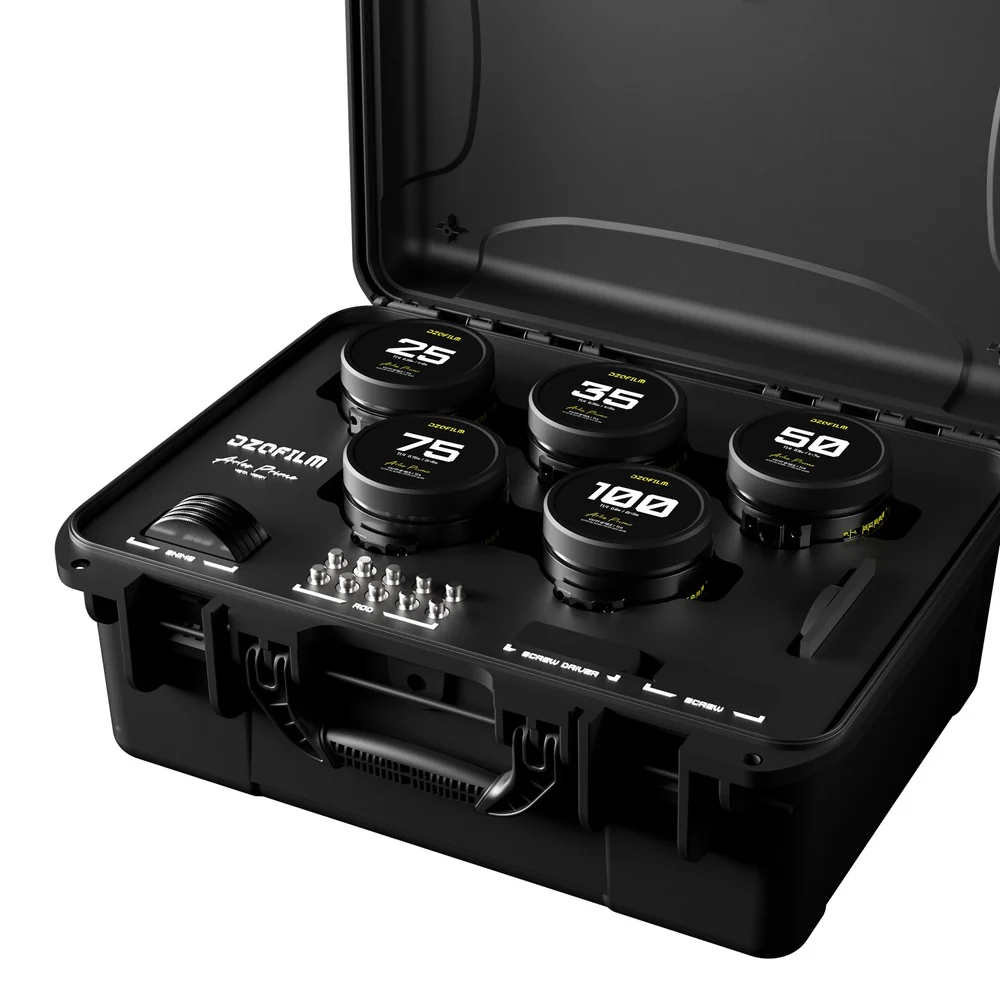

25, 35, 50, 75, and 100mm Lenses
All Lenses Cover Full-Frame Format
T1.4 to T22 Aperture Range
16-Blade Iris, M86 Filter Thread

Specs

Focal Length	25mm
Maximum Aperture	T1.4
Lens Mount	ARRI PL
Lens Format Coverage	Full Frame
Filter Thread	86 mm
Image Stabilization	No

Maximum Aperture	T1.4
Minimum Aperture	T22
Lens Mount	ARRI PL
Lens Format Coverage	Full Frame
Image Circle	46.5 mm
Angle of View	Full Frame Horizontal: 80.36° Vertical: 47.28° Diagonal: 87.44°
Focus Scales	Imperial
Optical Design	14 Elements in 12 Groups
Filter Thread	86 mm
Minimum Focus Distance	From Camera Sensor: 13.78" / 0.35 m
Diaphragm Blades	16
Image Stabilization	No
Gear Standard	Focus: 0.8 MOD Iris: 0.8 MOD
Gear Rotation	Focus 270° (Manual Only) Iris 77° (Manual Only)
Diameter	3.7" / 95 mm
Length	4.8" / 121 mm
Weight	3.3 lb / 1490 g

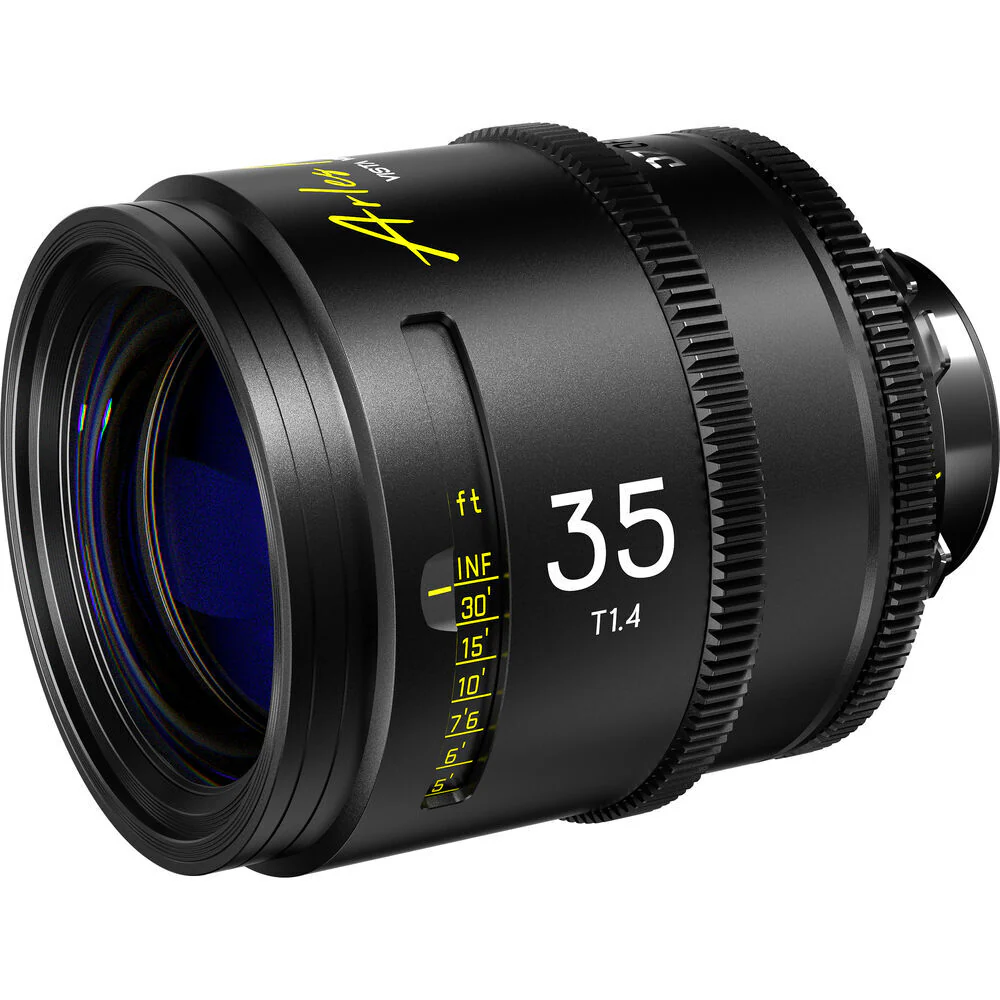

DZOFilm Arles 35mm T1.4 FF/VV Prime Cine Lens (ARRI PL) Specs

Key Specs

Focal Length	35mm
Maximum Aperture	T1.4
Lens Mount	ARRI PL
Lens Format Coverage	Full Frame
Filter Thread	86 mm
Image Stabilization	No

Maximum Aperture	T1.4
Minimum Aperture	T22
Lens Mount	ARRI PL
Lens Format Coverage	Full Frame
Image Circle	46.5 mm
Angle of View	Full Frame Horizontal: 61.1° Vertical: 34.23° Diagonal: 67.15°
Focus Scales	Imperial
Optical Design	14 Elements in 12 Groups
Filter Thread	86 mm
Minimum Focus Distance	From Camera Sensor: 13.78" / 0.35 m
Diaphragm Blades	16
Image Stabilization	No
Gear Standard	Focus: 0.8 MOD Iris: 0.8 MOD
Gear Rotation	Focus 270° (Manual Only) Iris 80° (Manual Only)
Coatings	Multi-Coating
Environmental Protection	No
Diameter	3.7" / 95 mm
Length	4.8" / 121 mm
Weight	3.6 lb / 1650 g

Packaging Info

Package Weight	5.73 lb
Box Dimensions (LxWxH)	12.9 x 7 x 6.9"

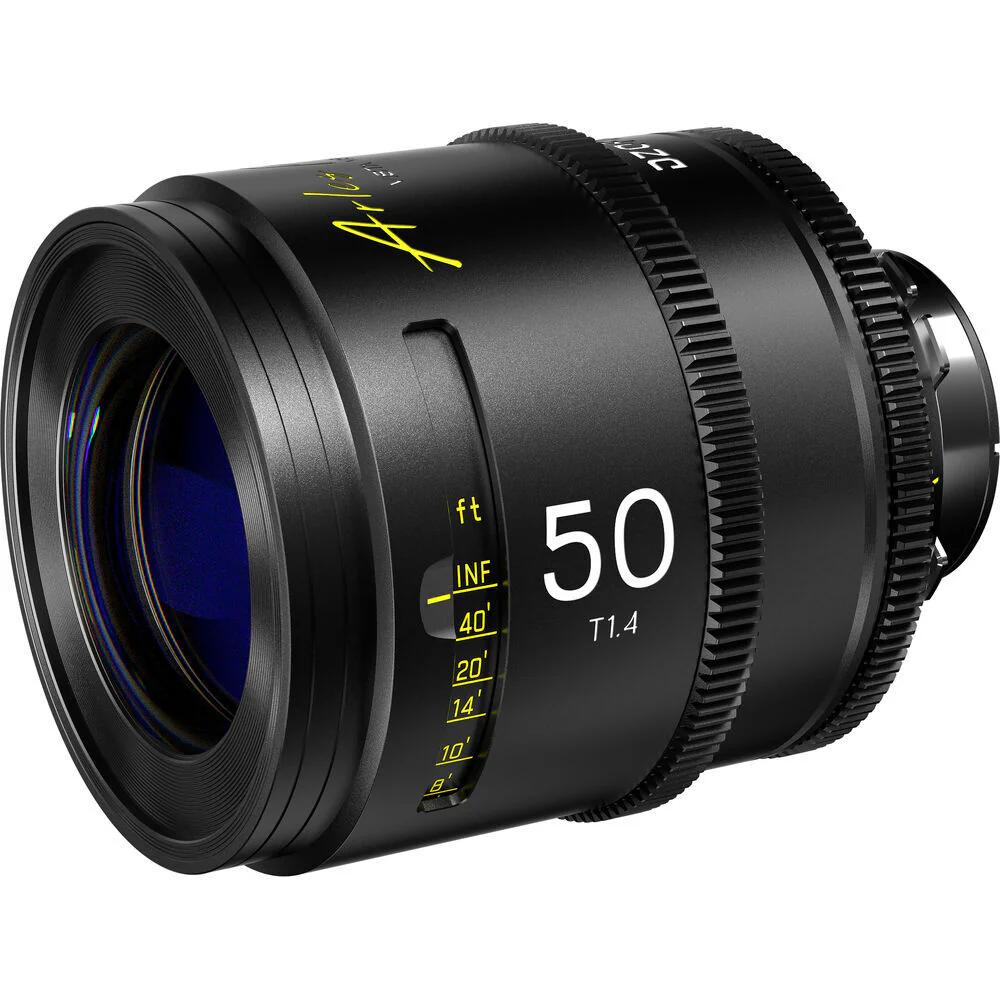

DZOFilm Arles 50mm T1.4 FF/VV Prime Cine Lens (ARRI PL) Specs

Key Specs

Focal Length	50mm
Maximum Aperture	T1.4
Lens Mount	ARRI PL
Lens Format Coverage	Full Frame
Filter Thread	86 mm
Image Stabilization	No

Maximum Aperture	T1.4
Minimum Aperture	T22
Lens Mount	ARRI PL
Lens Format Coverage	Full Frame
Image Circle	46.5 mm
Angle of View	Full Frame Horizontal: 45.17° Vertical: 24.61° Diagonal: 50.23°
Focus Scales	Imperial
Optical Design	13 Elements in 9 Groups
Filter Thread	86 mm
Minimum Focus Distance	From Camera Sensor: 19.7" / 0.5 m
Diaphragm Blades	16
Image Stabilization	No
Gear Standard	Focus: 0.8 MOD Iris: 0.8 MOD
Gear Rotation	Focus 270° (Manual Only) Iris 80° (Manual Only)
Coatings	Multi-Coating
Environmental Protection	No
Diameter	3.7" / 95 mm
Length	4.8" / 121 mm
Weight	3.7 lb / 1688 g

Packaging Info

Package Weight	5.875 lb
Box Dimensions (LxWxH)	12.9 x 6.9 x 6.8"

DZOFilm Arles 75mm T1.4 FF/VV Prime Cine Lens (ARRI PL) Specs

Key Specs

Focal Length	75mm
Maximum Aperture	T1.4
Lens Mount	ARRI PL
Lens Format Coverage	Full Frame
Filter Thread	86 mm
Image Stabilization	No

Maximum Aperture	T1.4
Minimum Aperture	T22
Lens Mount	ARRI PL
Lens Format Coverage	Full Frame
Image Circle	46.5 mm
Angle of View	Full Frame Horizontal: 30.45° Vertical: 16.35° Diagonal: 34.1°
Focus Scales	Imperial
Optical Design	13 Elements in 9 Groups
Filter Thread	86 mm
Minimum Focus Distance	From Camera Sensor: 2.46' / 0.75 m
Diaphragm Blades	16
Image Stabilization	No
Gear Standard	Focus: 0.8 MOD Iris: 0.8 MOD
Gear Rotation	Focus 270° (Manual Only) Iris 82° (Manual Only)
Coatings	Multi-Coating
Environmental Protection	No
Diameter	3.7" / 95 mm
Length	4.8" / 121 mm
Weight	3.7 lb / 1662 g

Packaging Info

Package Weight	5.795 lb
Box Dimensions (LxWxH)	12.9 x 6.7 x 6.6"

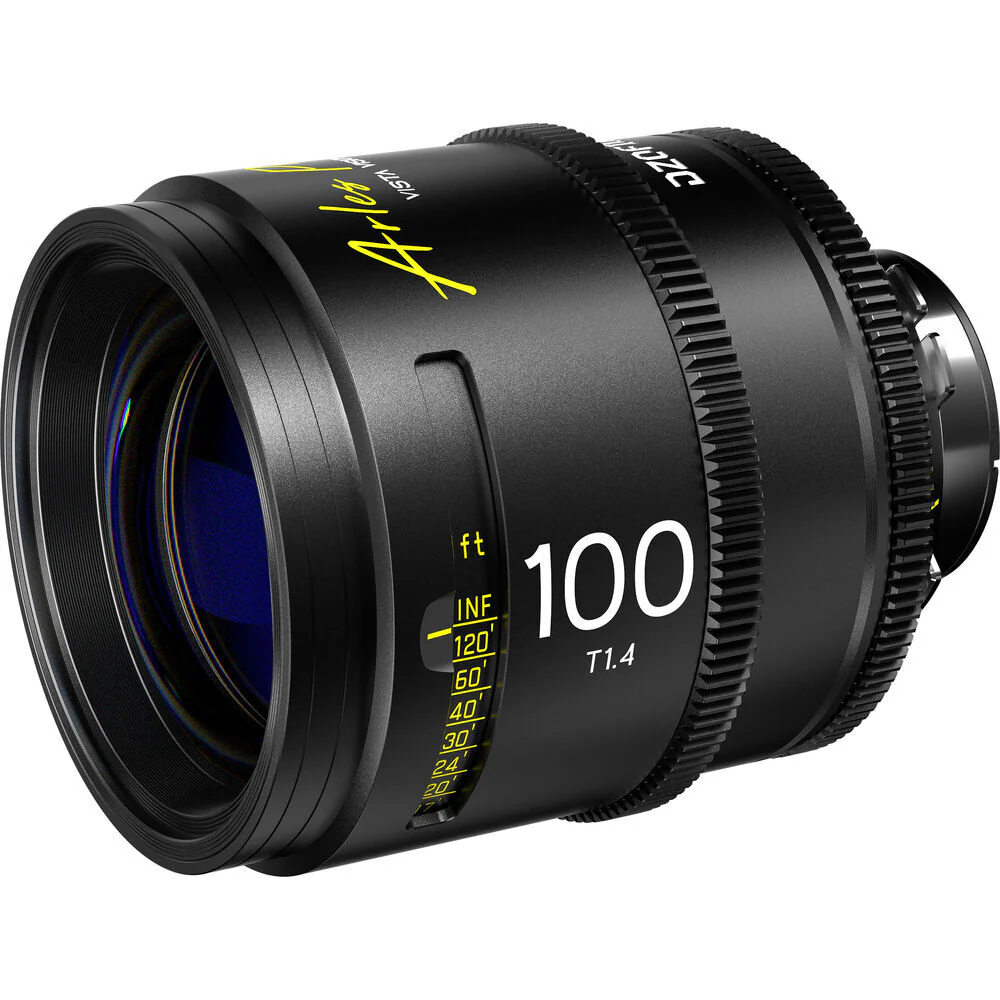

DZOFilm Arles 100mm T1.4 FF/VV Prime Cine Lens (ARRI PL) Specs

Key Specs

Focal Length	100mm
Maximum Aperture	T1.4
Lens Mount	ARRI PL
Lens Format Coverage	Full Frame
Filter Thread	86 mm
Image Stabilization	No

Maximum Aperture	T1.4
Minimum Aperture	T22
Lens Mount	ARRI PL
Lens Format Coverage	Full Frame
Image Circle	46.5 mm
Angle of View	Full Frame Horizontal: 23.12° Vertical: 12.34° Diagonal: 25.96°
Focus Scales	Imperial
Optical Design	13 Elements in 8 Groups
Filter Thread	86 mm
Minimum Focus Distance	From Camera Sensor: 3.0' / 0.9 m
Diaphragm Blades	16
Image Stabilization	No
Gear Standard	Focus: 0.8 MOD Iris: 0.8 MOD
Gear Rotation	Focus 270° (Manual Only) Iris 90° (Manual Only)
Coatings	Multi-Coating
Environmental Protection	No
Diameter	3.7" / 95 mm
Length	4.8" / 121 mm
Weight	4 lb / 1830 g
