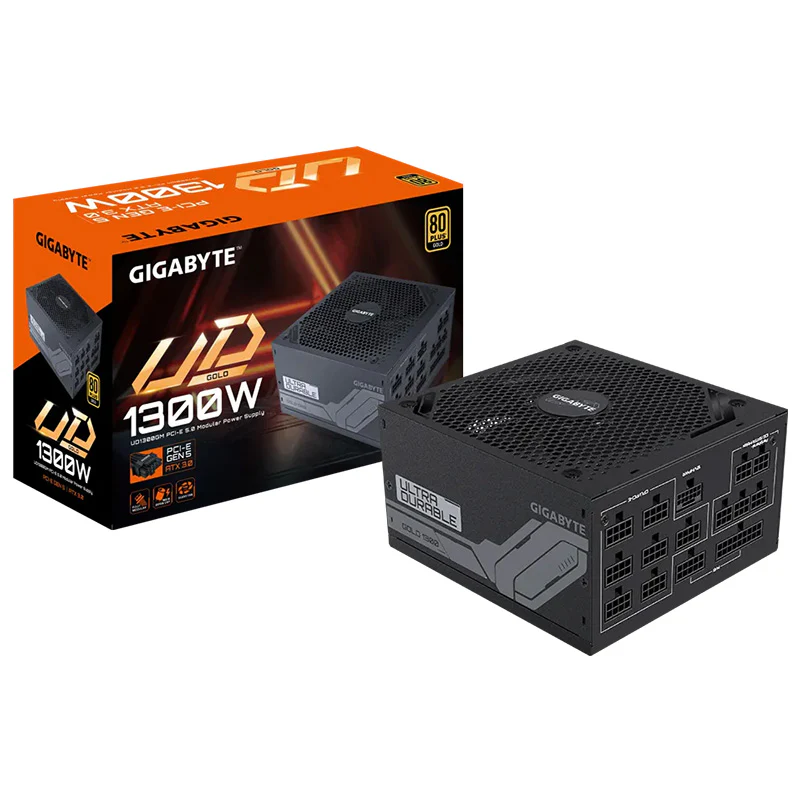

Gigabyte 80+ Gold Modular PCIe 5.0 PSU 1300W
Please note: This item requires a 15 Amp power input
SPECIFICATIONS:
|
Type |
Intel Form Factor ATX 12V v3.0 |
|
PFC |
Active PFC (>0.9 typical) |
|
Input Voltage |
100-240 Vac (full range) |
|
Input Current |
15-6.5A |
|
Input Frequency |
60-50 Hz |
|
Output Capacity |
1300W |
|
Dimension |
150 x 160 x 86 mm |
|
Fan Type |
140mm double ball bearing fan |
|
80 PLUS |
Gold |
|
Efficiency |
90% at typical load |
|
MTBF |
>100,000 hours |
|
Protection |
OVP/OPP/SCP/UVP/OCP/OTP |
|
Power Good Signal |
100-150ms |
|
Hold Up Time |
>16ms |
|
Cable Type |
Flat, All black |
|
Connectors |
ATX/MB 20+4 Pin x 1 : 610mm*1 CPU/EPS 4+4 Pin x 2 : 650mm*2 PCIe 16 Pin x 1: 700mm*1 PCIe 6+2 Pin x 8 : 650mm+150mm*3, 650mm*2 SATA x 12 : 650mm+150mm+150mm+150mm*3 4 Pin Peripheral x 6+4-Pin floppy x 2 : 600mm+150mm+150mm+150mm*2 |
Original: $261.26
-70%$261.26
$78.38Gigabyte 80+ Gold Modular PCIe 5.0 PSU 1300W
Please note: This item requires a 15 Amp power input
SPECIFICATIONS:
|
Type |
Intel Form Factor ATX 12V v3.0 |
|
PFC |
Active PFC (>0.9 typical) |
|
Input Voltage |
100-240 Vac (full range) |
|
Input Current |
15-6.5A |
|
Input Frequency |
60-50 Hz |
|
Output Capacity |
1300W |
|
Dimension |
150 x 160 x 86 mm |
|
Fan Type |
140mm double ball bearing fan |
|
80 PLUS |
Gold |
|
Efficiency |
90% at typical load |
|
MTBF |
>100,000 hours |
|
Protection |
OVP/OPP/SCP/UVP/OCP/OTP |
|
Power Good Signal |
100-150ms |
|
Hold Up Time |
>16ms |
|
Cable Type |
Flat, All black |
|
Connectors |
ATX/MB 20+4 Pin x 1 : 610mm*1 CPU/EPS 4+4 Pin x 2 : 650mm*2 PCIe 16 Pin x 1: 700mm*1 PCIe 6+2 Pin x 8 : 650mm+150mm*3, 650mm*2 SATA x 12 : 650mm+150mm+150mm+150mm*3 4 Pin Peripheral x 6+4-Pin floppy x 2 : 600mm+150mm+150mm+150mm*2 |
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Please note: This item requires a 15 Amp power input
SPECIFICATIONS:
|
Type |
Intel Form Factor ATX 12V v3.0 |
|
PFC |
Active PFC (>0.9 typical) |
|
Input Voltage |
100-240 Vac (full range) |
|
Input Current |
15-6.5A |
|
Input Frequency |
60-50 Hz |
|
Output Capacity |
1300W |
|
Dimension |
150 x 160 x 86 mm |
|
Fan Type |
140mm double ball bearing fan |
|
80 PLUS |
Gold |
|
Efficiency |
90% at typical load |
|
MTBF |
>100,000 hours |
|
Protection |
OVP/OPP/SCP/UVP/OCP/OTP |
|
Power Good Signal |
100-150ms |
|
Hold Up Time |
>16ms |
|
Cable Type |
Flat, All black |
|
Connectors |
ATX/MB 20+4 Pin x 1 : 610mm*1 CPU/EPS 4+4 Pin x 2 : 650mm*2 PCIe 16 Pin x 1: 700mm*1 PCIe 6+2 Pin x 8 : 650mm+150mm*3, 650mm*2 SATA x 12 : 650mm+150mm+150mm+150mm*3 4 Pin Peripheral x 6+4-Pin floppy x 2 : 600mm+150mm+150mm+150mm*2 |
