Gigabyte 850W 80+ Gold Fully Modular PCIe 5.0 ATX Power Supply (GP-UD850GM PG5)
HomeStore

Gigabyte 850W 80+ Gold Fully Modular PCIe 5.0 ATX Power Supply (GP-UD850GM PG5)

Gigabyte 850W 80+ Gold Fully Modular PCIe 5.0 ATX Power Supply (GP-UD850GM PG5)






SPECIFICATIONS:

Type

Intel Form Factor ATX 12V

PFC

Active PFC (>0.9 typical)

Input Voltage

100-240 Vac (full range)

Input Current

12-6A

Input Frequency

60-50 Hz

Output Capacity

850W

Dimension

150 x 140 x 86 mm

Fan Type

120mm Hydraulic Bearing(HYB)fan

80 PLUS

Gold

Efficiency

90% at typical load

MTBF

>100,000 hours

Protection

OVP/OPP/SCP/UVP/OCP/OTP

Power Good Signal

100-150ms

Hold Up Time

>16ms

Cable Type

Flat, All black

Connectors

ATX/MB 20+4 Pin x 1 : 610mm*1

CPU/EPS 4+4 Pin x 2 : 600mm+200mm*1

PCI-e 12+4 Pin x 1: 700mm*1

PCI-e 6+2 Pin x 4 : 600mm+150mm*2

SATA x 8 :

600mm+150mm+150mm+150mm*2

4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1


Select Seller
From $31.05

Original: $103.49

-70%
Gigabyte 850W 80+ Gold Fully Modular PCIe 5.0 ATX Power Supply (GP-UD850GM PG5)—

$103.49

$31.05

More Images

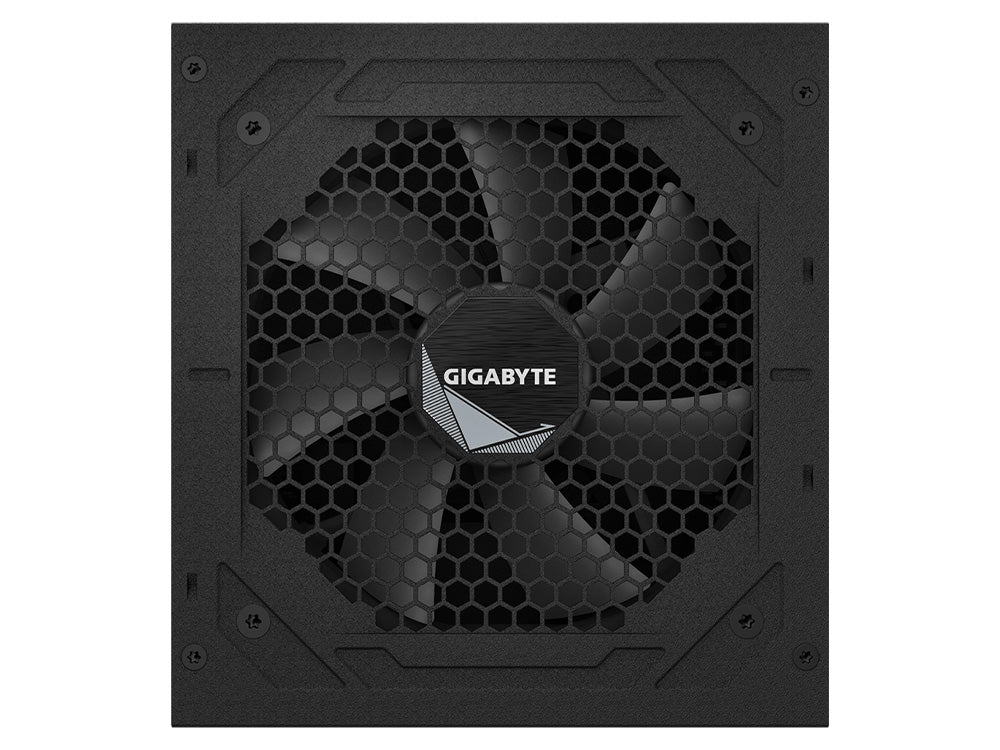

Gigabyte 850W 80+ Gold Fully Modular PCIe 5.0 ATX Power Supply (GP-UD850GM PG5) - Image 2

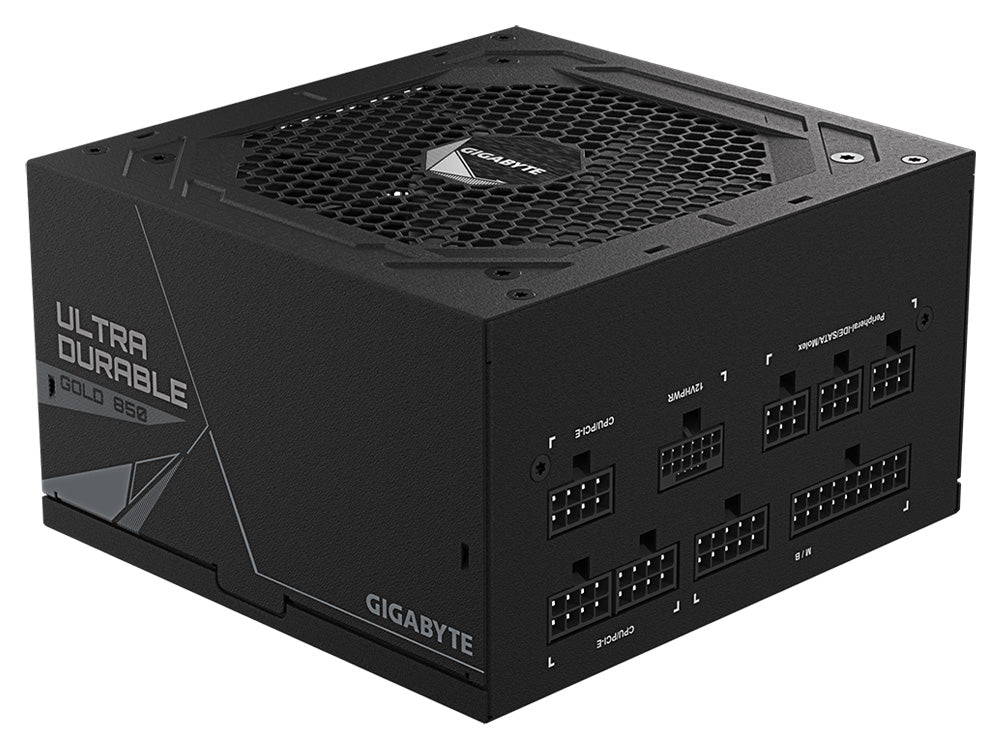

Gigabyte 850W 80+ Gold Fully Modular PCIe 5.0 ATX Power Supply (GP-UD850GM PG5) - Image 3

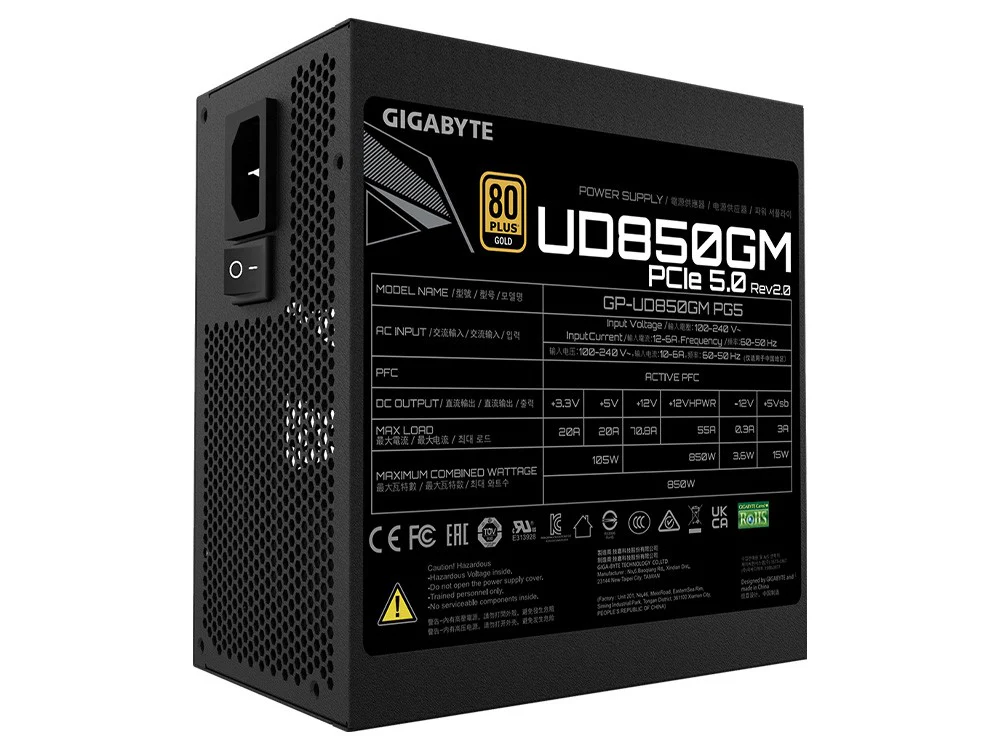

Gigabyte 850W 80+ Gold Fully Modular PCIe 5.0 ATX Power Supply (GP-UD850GM PG5) - Image 4

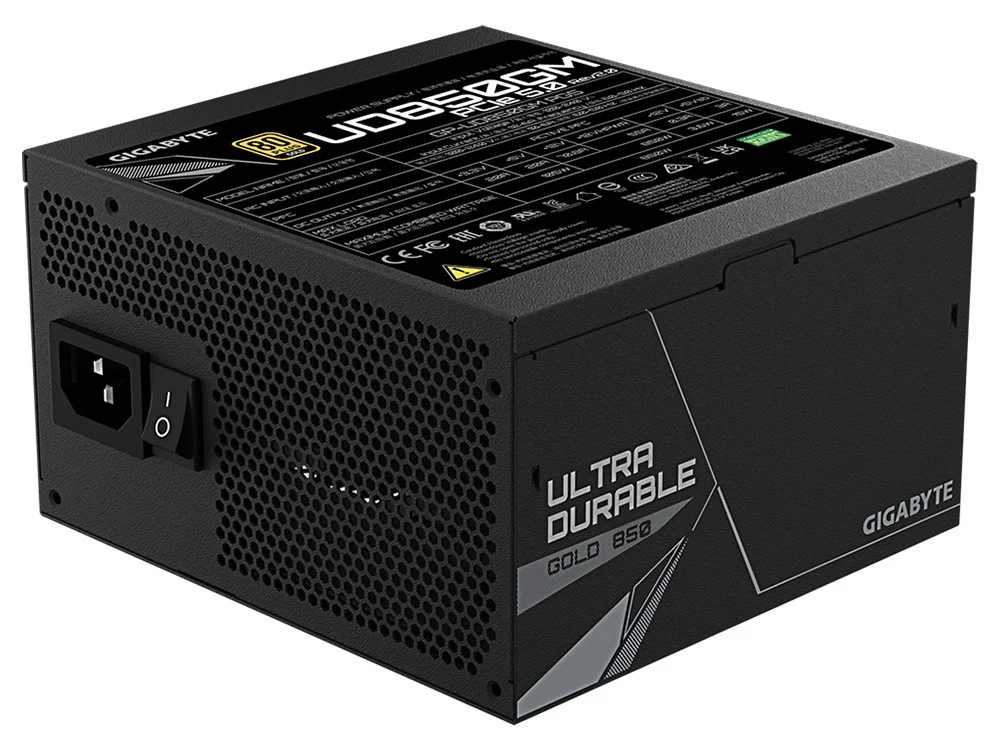

Gigabyte 850W 80+ Gold Fully Modular PCIe 5.0 ATX Power Supply (GP-UD850GM PG5) - Image 5

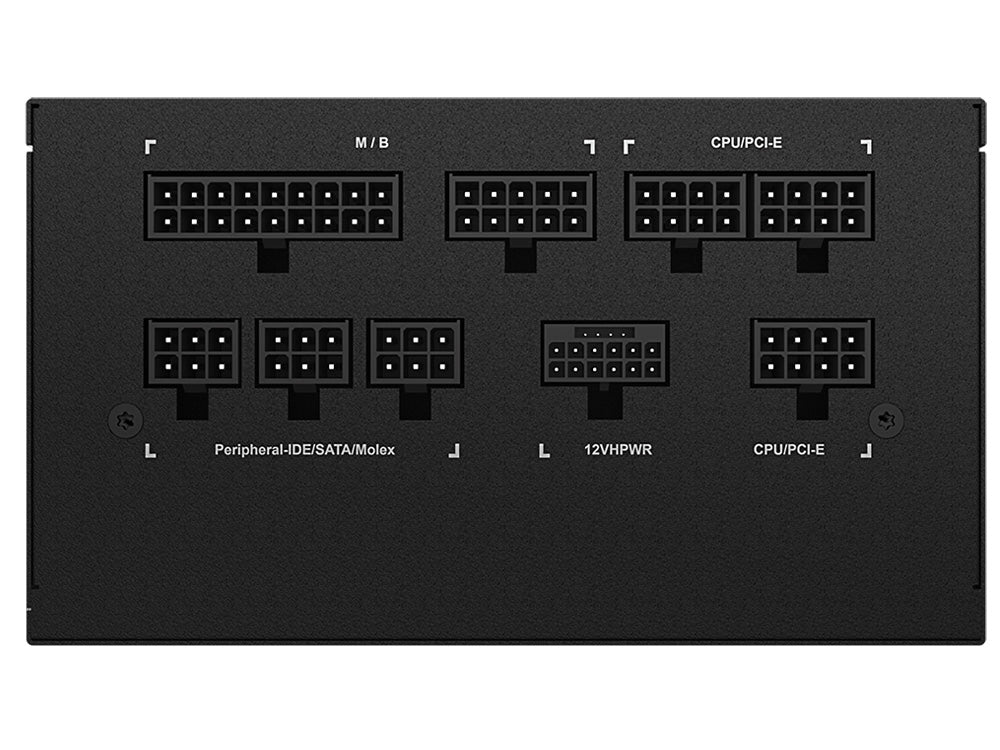

Gigabyte 850W 80+ Gold Fully Modular PCIe 5.0 ATX Power Supply (GP-UD850GM PG5) - Image 6

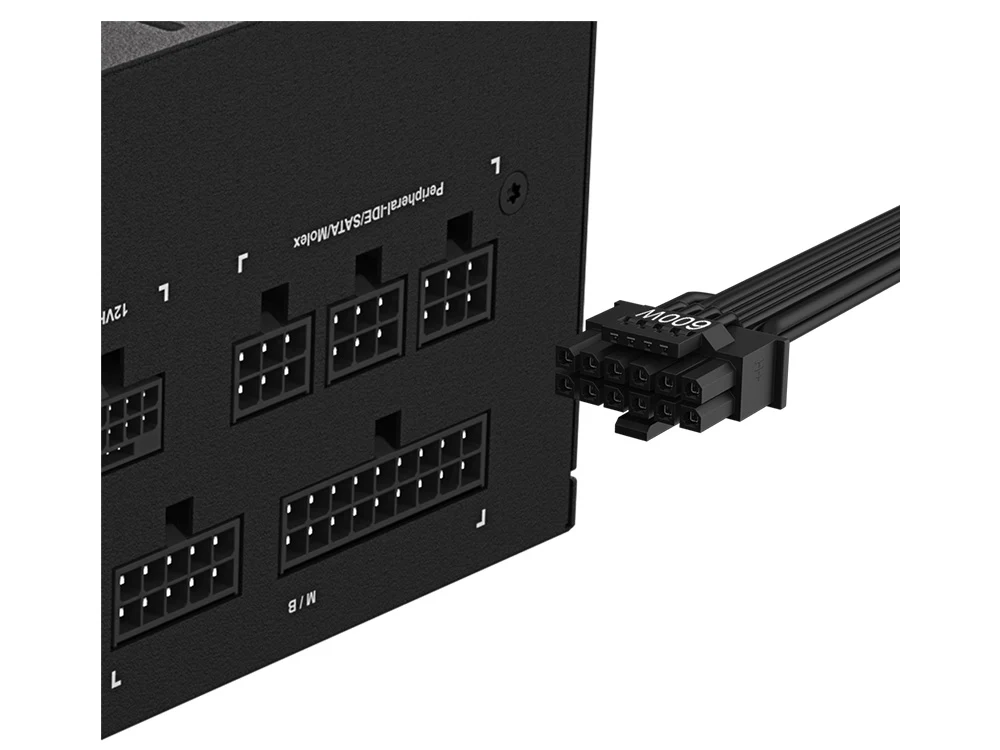

Gigabyte 850W 80+ Gold Fully Modular PCIe 5.0 ATX Power Supply (GP-UD850GM PG5) - Image 7

Gigabyte 850W 80+ Gold Fully Modular PCIe 5.0 ATX Power Supply (GP-UD850GM PG5)






SPECIFICATIONS:

Type

Intel Form Factor ATX 12V

PFC

Active PFC (>0.9 typical)

Input Voltage

100-240 Vac (full range)

Input Current

12-6A

Input Frequency

60-50 Hz

Output Capacity

850W

Dimension

150 x 140 x 86 mm

Fan Type

120mm Hydraulic Bearing(HYB)fan

80 PLUS

Gold

Efficiency

90% at typical load

MTBF

>100,000 hours

Protection

OVP/OPP/SCP/UVP/OCP/OTP

Power Good Signal

100-150ms

Hold Up Time

>16ms

Cable Type

Flat, All black

Connectors

ATX/MB 20+4 Pin x 1 : 610mm*1

CPU/EPS 4+4 Pin x 2 : 600mm+200mm*1

PCI-e 12+4 Pin x 1: 700mm*1

PCI-e 6+2 Pin x 4 : 600mm+150mm*2

SATA x 8 :

600mm+150mm+150mm+150mm*2

4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1


Product Information

Shipping & Returns

Description






SPECIFICATIONS:

Type

Intel Form Factor ATX 12V

PFC

Active PFC (>0.9 typical)

Input Voltage

100-240 Vac (full range)

Input Current

12-6A

Input Frequency

60-50 Hz

Output Capacity

850W

Dimension

150 x 140 x 86 mm

Fan Type

120mm Hydraulic Bearing(HYB)fan

80 PLUS

Gold

Efficiency

90% at typical load

MTBF

>100,000 hours

Protection

OVP/OPP/SCP/UVP/OCP/OTP

Power Good Signal

100-150ms

Hold Up Time

>16ms

Cable Type

Flat, All black

Connectors

ATX/MB 20+4 Pin x 1 : 610mm*1

CPU/EPS 4+4 Pin x 2 : 600mm+200mm*1

PCI-e 12+4 Pin x 1: 700mm*1

PCI-e 6+2 Pin x 4 : 600mm+150mm*2

SATA x 8 :

600mm+150mm+150mm+150mm*2

4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1
