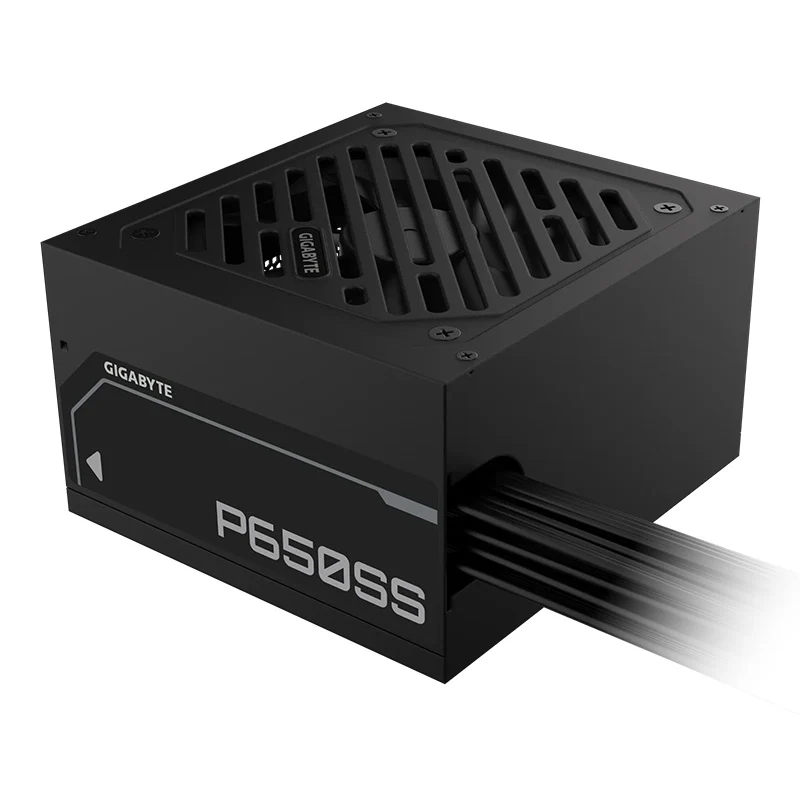

Gigabyte P650SS 650W 80+ Silver Non-Modular ATX 3.0 Power Supply (GP-P650SS)
SPECIFICATIONS:
|
Type |
Intel Form Factor ATX 12V v3.0 |
|
PFC |
Active PFC (>0.9 typical) |
|
Input Voltage |
155-240 Vac |
|
Input Current |
6.3A |
|
Input Frequency |
50-60 Hz |
|
Output Capacity |
650W |
|
Dimension |
150 x 140 x 86 mm |
|
Fan Type |
120mm Fluid Dynamic Bearing (FDB) fan |
|
80 PLUS |
Silver |
|
Efficiency |
90% at typical load (230V EU) |
|
MTBF |
>100,000 hours |
|
Protection |
OVP/OPP/SCP/UVP/OCP/OTP |
|
Power Good Signal |
100-150ms |
|
Hold Up Time |
>16ms |
|
Cable Type |
Flat, All black |
|
Connectors |
ATX/MB 20+4 Pin x 1 : 600mm*1 CPU/EPS 4+4 Pin x 2 : 650mm+120mm*1 PCI-e 6+2 Pin x 2 : 600mm*2 SATA x 3 + 4 Pin Peripheral x 1 : 500mm+120mm+120mm+120mm*1 SATA x 2 + 4 Pin Peripheral x 2 : 500mm+120mm+120mm+120mm*1 |
Original: $57.90
-70%$57.90
$17.37Gigabyte P650SS 650W 80+ Silver Non-Modular ATX 3.0 Power Supply (GP-P650SS)
SPECIFICATIONS:
|
Type |
Intel Form Factor ATX 12V v3.0 |
|
PFC |
Active PFC (>0.9 typical) |
|
Input Voltage |
155-240 Vac |
|
Input Current |
6.3A |
|
Input Frequency |
50-60 Hz |
|
Output Capacity |
650W |
|
Dimension |
150 x 140 x 86 mm |
|
Fan Type |
120mm Fluid Dynamic Bearing (FDB) fan |
|
80 PLUS |
Silver |
|
Efficiency |
90% at typical load (230V EU) |
|
MTBF |
>100,000 hours |
|
Protection |
OVP/OPP/SCP/UVP/OCP/OTP |
|
Power Good Signal |
100-150ms |
|
Hold Up Time |
>16ms |
|
Cable Type |
Flat, All black |
|
Connectors |
ATX/MB 20+4 Pin x 1 : 600mm*1 CPU/EPS 4+4 Pin x 2 : 650mm+120mm*1 PCI-e 6+2 Pin x 2 : 600mm*2 SATA x 3 + 4 Pin Peripheral x 1 : 500mm+120mm+120mm+120mm*1 SATA x 2 + 4 Pin Peripheral x 2 : 500mm+120mm+120mm+120mm*1 |
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
SPECIFICATIONS:
|
Type |
Intel Form Factor ATX 12V v3.0 |
|
PFC |
Active PFC (>0.9 typical) |
|
Input Voltage |
155-240 Vac |
|
Input Current |
6.3A |
|
Input Frequency |
50-60 Hz |
|
Output Capacity |
650W |
|
Dimension |
150 x 140 x 86 mm |
|
Fan Type |
120mm Fluid Dynamic Bearing (FDB) fan |
|
80 PLUS |
Silver |
|
Efficiency |
90% at typical load (230V EU) |
|
MTBF |
>100,000 hours |
|
Protection |
OVP/OPP/SCP/UVP/OCP/OTP |
|
Power Good Signal |
100-150ms |
|
Hold Up Time |
>16ms |
|
Cable Type |
Flat, All black |
|
Connectors |
ATX/MB 20+4 Pin x 1 : 600mm*1 CPU/EPS 4+4 Pin x 2 : 650mm+120mm*1 PCI-e 6+2 Pin x 2 : 600mm*2 SATA x 3 + 4 Pin Peripheral x 1 : 500mm+120mm+120mm+120mm*1 SATA x 2 + 4 Pin Peripheral x 2 : 500mm+120mm+120mm+120mm*1 |
