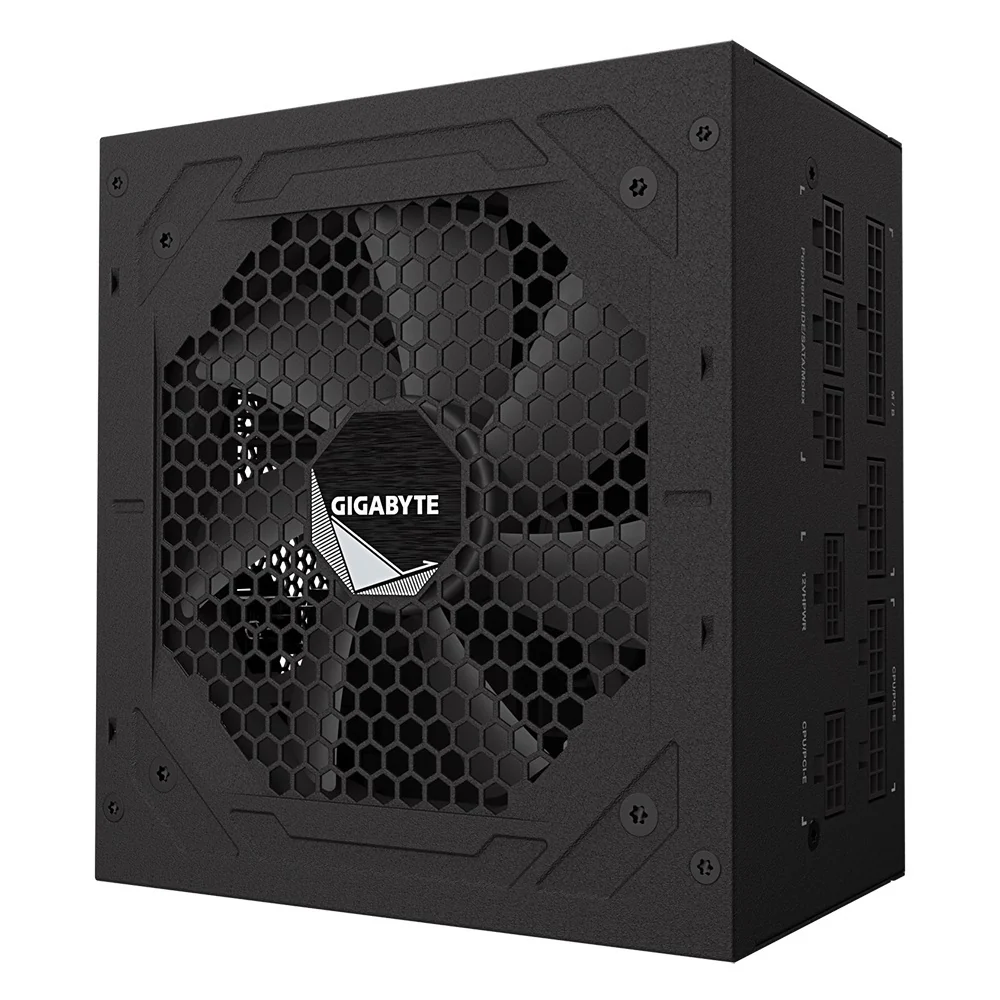

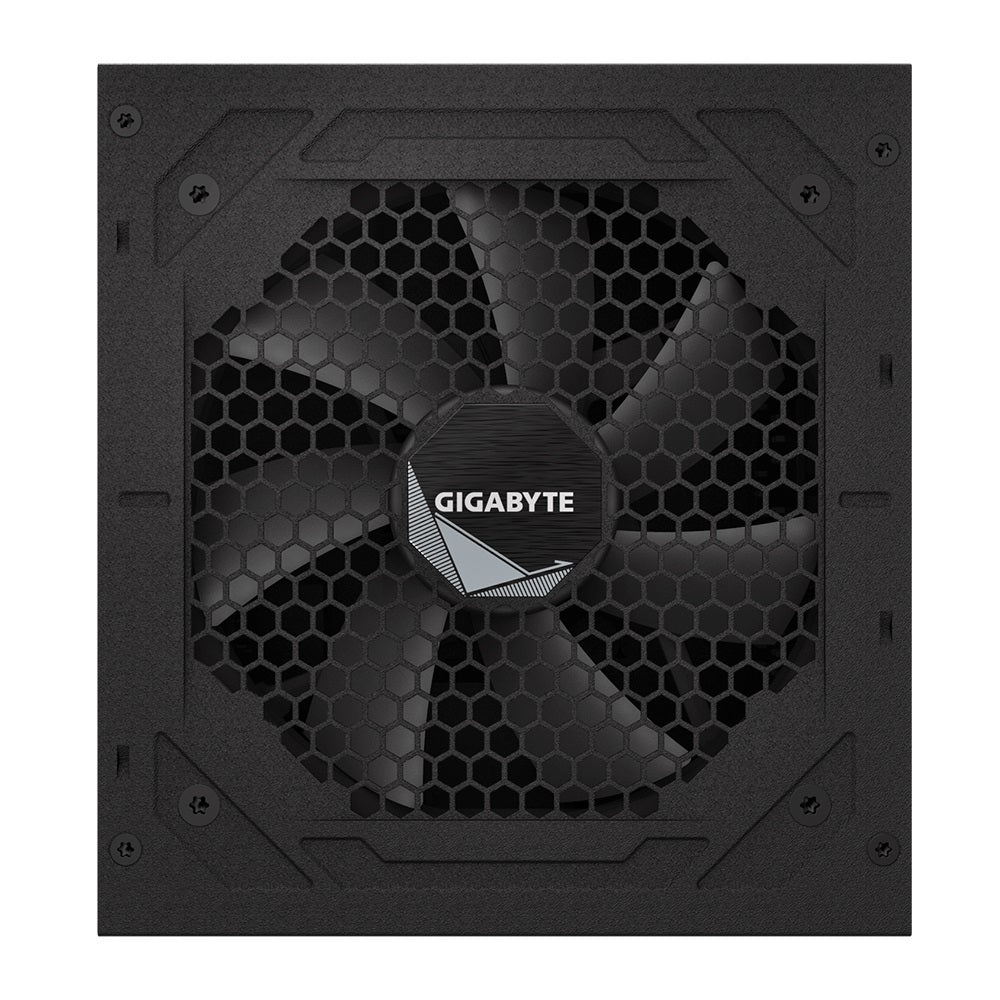

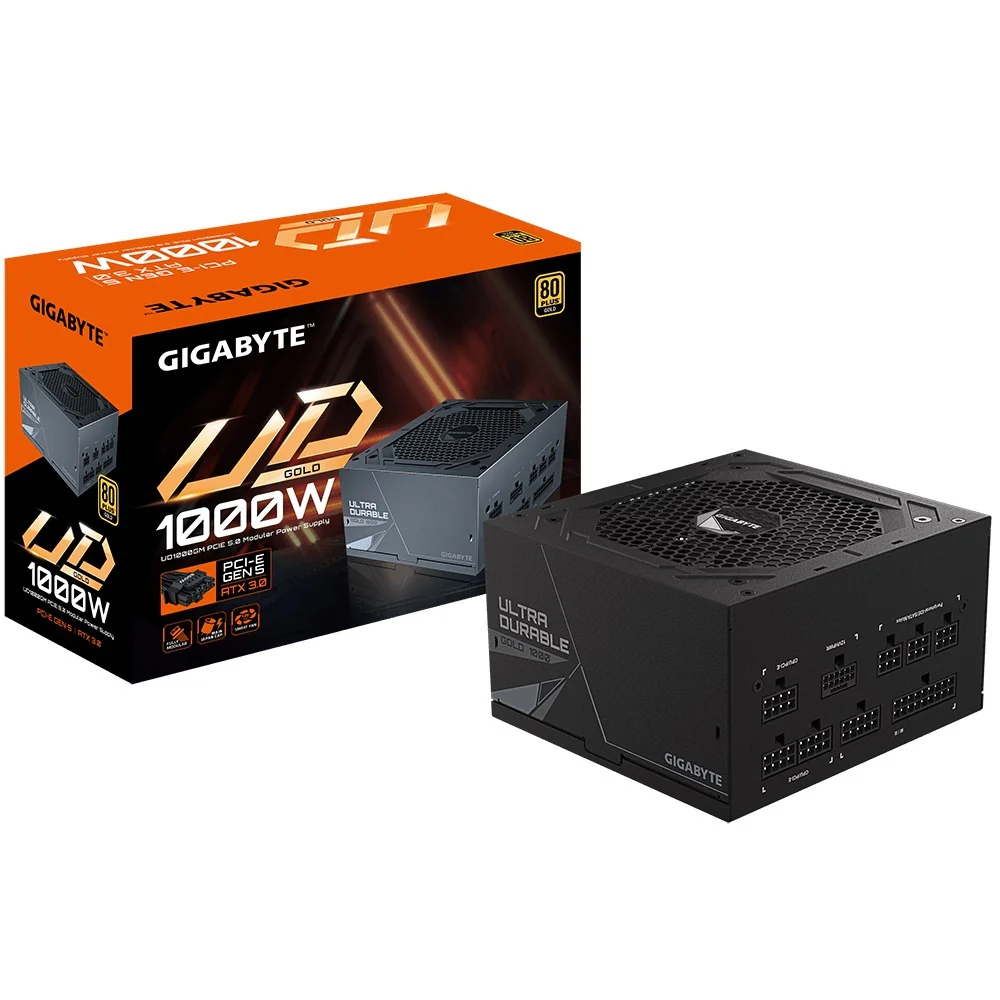

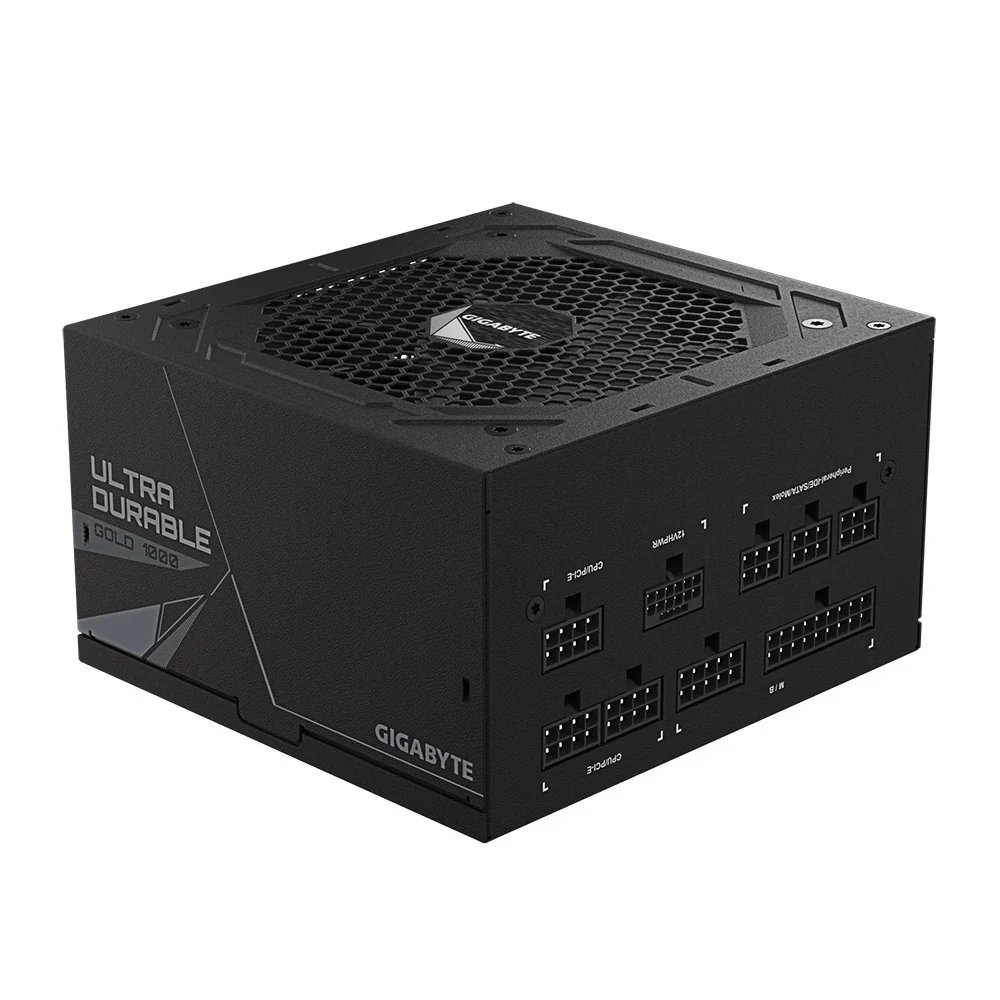

Gigabyte UD1000GM PG5 2.0 1000W ATX 80+ Gold Power Supply Unit

Key Features:

• Ultra Durable
• Main Japanese capacitors
• Enhanced thermal solution
• 120mm smart hydraulic bearing (HYB) fan
• OVP/OPP/SCP/UVP/OCP/OTP protection
• Support PCIe Gen 5.0 graphics cards
• Support Intel ATX 3.0 standard
• 80 PLUS Gold certified
• Fully modular design
• Compact design
• 10 years warranty (Adjusted according to different regions)

SPECIFICATION:

• Model GP-UD1000GM PG5
• Type Intel Form Factor ATX 12V v3.0
• PFC Active PFC (>0.9 typical)
• Input Voltage 100-240 Vac (full range)
• Input Current 15-6.5A
• Input Frequency 60-50 Hz
• Output Capacity 1000W
• Dimension 150 x 140 x 86 mm
• Fan Type 120mm Hydraulic Bearing(HYB)fan
• 80 PLUS Gold
• Efficiency 90% at typical load
• MTBF >100,000 hours
• Protection OVP/OPP/SCP/UVP/OCP/OTP
• Power Good Signal 100-150ms
• Hold Up Time >16ms
• Cable Type Flat, All black
• Connectors:
• ATX/MB 20+4 Pin x 1 : 610mm*1
• CPU/EPS 4+4 Pin x 2 : 600mm+200mm*1
• PCI-e 16 Pin x 1: 700mm*1
• PCI-e 6+2 Pin x 4 : 600mm+150mm*2
• SATA x 8 :
• 600mm+150mm+150mm+150mm*2
• 4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1
