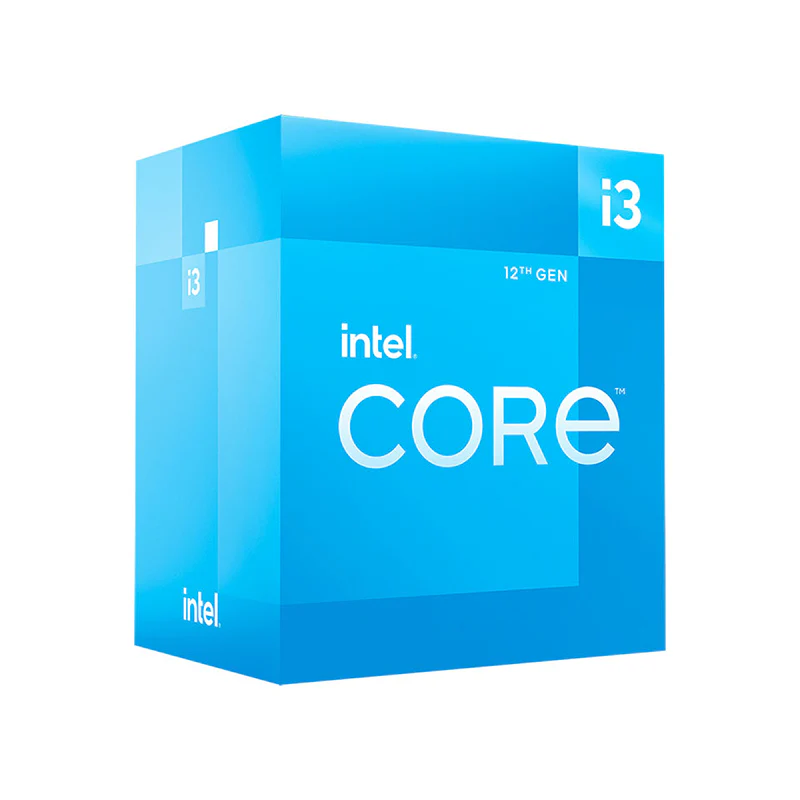

Intel Core i3 12100 4 Core LGA 1700 4.30 GHz CPU Processor (BX8071512100)

Product Collection

12th Generation Intel ® Core „¢ i3 Processors

Code Name

Products formerly Alder Lake

Vertical Segment

Desktop

Processor Number

i3-12100

Lithography

Intel 7

CPU SPECIFICATIONS

Total Cores

4

# of Performance-cores

4

# of Efficient-cores

0

Total Threads

8

Max Turbo Frequency

4.30 GHz

Performance-core Max Turbo Frequency

4.30 GHz

Performance-core Base Frequency

3.30 GHz

Cache

12 MB Intel ® Smart Cache

Total L2 Cache

5 MB

Processor Base Power

60 W

Maximum Turbo Power

89 W

MEMORY SPECIFICATIONS

Max Memory Size (dependent on memory type)

128 GB

Memory Types

Up to DDR5 4800 MT/s

Up to DDR4 3200 MT/s

Max # of Memory Channels

2

Max Memory Bandwidth

76.8 GB/s

PROCESSOR GRAPHICS

Processor Graphics*

Intel ® UHD Graphics 730

Graphics Base Frequency

300 MHz

Graphics Max Dynamic Frequency

1.40 GHz

Graphics Output

eDP 1.4b, DP 1.4a, HDMI 2.1

Execution Units

24

Max Resolution (HDMI)*

4096 x 2160 @ 60Hz

Max Resolution (DP)*

7680 x 4320 @ 60Hz

Max Resolution (eDP - Integrated Flat Panel)*

5120 x 3200 @ 120Hz

DirectX Support

12

OpenGL Support

4.5

Multi-Format Codec Engines

1

Intel ® Quick Sync Video

Yes

Intel ® Clear Video HD Technology

Yes

# of Displays Supported*

4

Device ID

0x4692

OpenCL Support

2.1

EXPANSION OPTIONS

Direct Media Interface (DMI) Revision

4.0

Max # of DMI Lanes

8

Scalability

1S Only

PCI Express Revision

5.0 and 4.0

PCI Express Configurations*

Up to 1x16+4, 2x8+4

Max # of PCI Express Lanes

20

PACKAGE SPECIFICATIONS

Max CPU Configuration

1

Thermal Solution Specification

PCG 2020C

T JUNCTION

100 °C

Package Size

45.0 mm x 37.5 mm

ADVANCED TECHNOLOGIES

Intel ® Gaussian & Neural Accelerator

3.0

Intel ® Thread Director

No

Intel ® Deep Learning Boost (Intel ® DL Boost)

Yes

Intel ® Optane „¢ Memory Supported*

Yes

Intel ® Speed Shift Technology

Yes

Intel ® Turbo Boost Max Technology 3.0*

No

Intel ® Turbo Boost Technology*

2.0

Intel ® Hyper-Threading Technology*

Yes

Intel ® Virtualization Technology (VT-x)*

Yes

Intel ® Virtualization Technology for Directed I/O (VT-d)*

Yes

Intel ® VT-x with Extended Page Tables (EPT)*

Yes

Intel ® 64*

Yes

Instruction Set

64-bit

Instruction Set Extensions

Intel ® SSE4.1, Intel ® SSE4.2, Intel ® AVX2

Idle States

Yes

Enhanced Intel SpeedStep ® Technology

Yes

Thermal Monitoring Technologies

Yes

Intel ® Volume Management Device (VMD)

Yes

SECURITY & RELIABILITY

Intel ® AES New Instructions

Yes

Secure Key

Yes

Intel ® OS Guard

Yes

Execute Disable Bit*

Yes

Intel ® Boot Guard

Yes

Mode-based Execute Control (MBE)

Yes

Intel ® Control-Flow Enforcement Technology

Yes
