Ionmax Q10 Indoor Air Quality Monitor

The Ionmax Q10 Air Quality Monitor

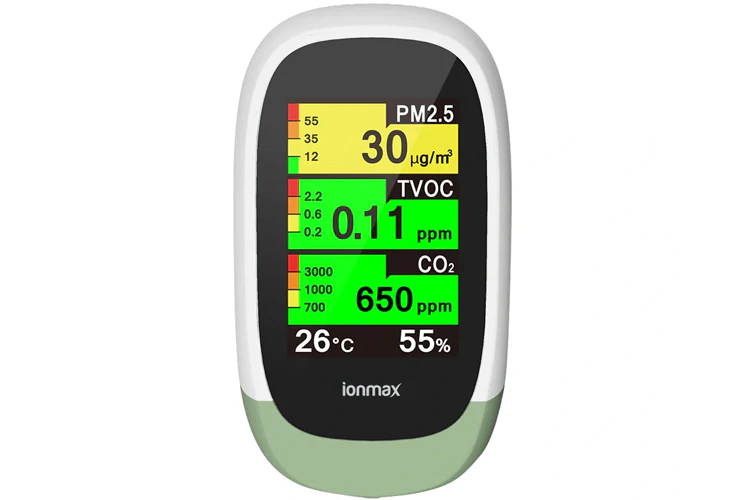

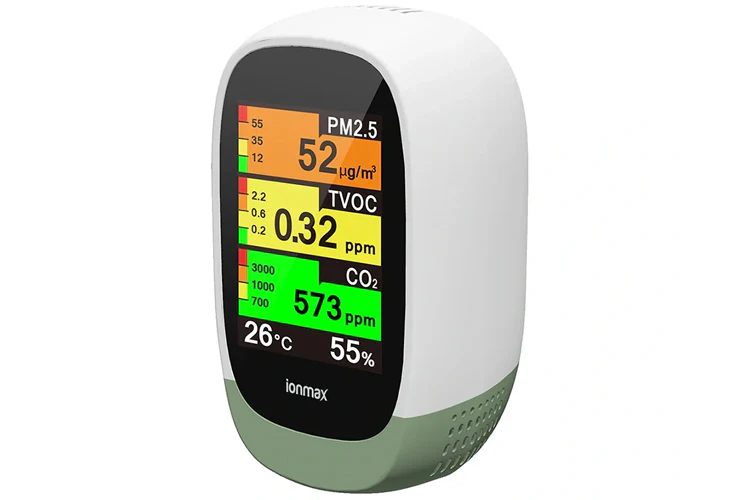

The Ionmax Q10 is a compact and stylish indoor air quality monitor that provides real-time measurements of PM2.5, TVOC, CO₂ (calculated), temperature, and humidity. Featuring a high-contrast 3.5" TFT display with a 160° wide viewing angle, it offers rapid detection times and a fan-less design for silent operation. Ideal for homes and offices, the Q10 helps you maintain a healthier indoor environment.

Features:

• Real-time monitoring of PM2.5, TVOC, CO₂ (calculated), temperature, and humidity
• High-contrast 3.5" TFT display with 160° wide viewing angle
• Rapid detection times: PM2.5 in 2 seconds, TVOC and CO₂ in 1 second
• Four-colour air quality index for easy interpretation
• Fan-less design ensures silent operation and low energy consumption
• Compact and portable design suitable for various indoor spaces
• USB-C power input (5V DC)

Specifications:

• Model: ION-AQM-Q10
• Display: 3.5" 320 x 480 TFT LCM with 160° wide viewing angle
• Detection Ranges:
  • PM2.5: 0 ~ 500 µg/m³
  • TVOC: 0 ~ 20 ppm (0.01–2.99 ppm displayed in 2 decimals; 3.0–20.0 in 1 decimal)
  • CO₂ (calculated): 400 ~ 3500 ppm
  • Temperature: 0 ~ 60°C
  • Humidity: 0 ~ 99% RH
• Response Times:
  • PM2.5: 2 seconds
  • TVOC: 1 second
  • CO₂: 1 second
• Power Input: 5V DC via USB-C
• Dimensions: 146 x 75 x 84 mm
• Weight: 0.215 kg
• What's in the Box:
  • 1 × Ionmax Q10 Air Quality Monitor
  • 1 × USB Type-C Cable
  • 1 × User Manual
