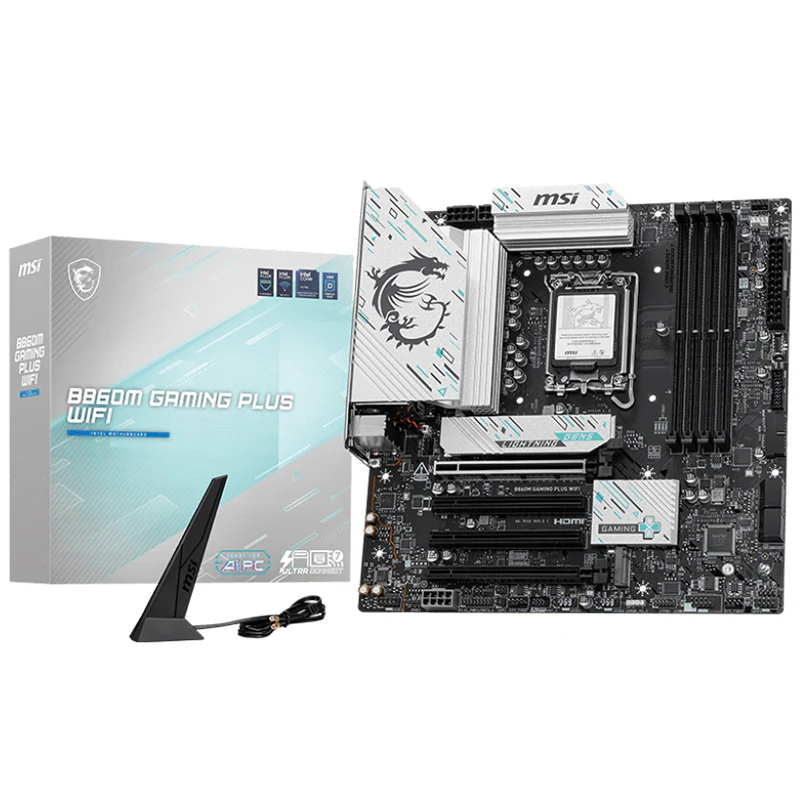

MSI B860M Gaming Plus WIFI LGA 1851 DDR5 mATX Motherboard (B860M GAMING PLUS WIFI)

CPU

Supports Intel ® Core „¢ Ultra Processors (Series 2)
LGA 1851

Memory

4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Max. overclocking frequency:
€¢ 1DPC 1R Max speed up to 8800+ MT/s
€¢ 1DPC 2R Max speed up to 7200+ MT/s
€¢ 2DPC 1R Max speed up to 6400+ MT/s
€¢ 2DPC 2R Max speed up to 5600+ MT/s

Supports Intel ^® POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel ^® XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM

€¢ The DIMM slots on this motherboard only have single-sided latches.
€¢ Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product €™s Support page or visit https://www.msi.com/support/.

Onboard Graphics

1x HDMI „¢
Support HDMI „¢ 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DisplayPort 1.4, maximum resolution of 4K 60Hz*
1x Type-C DisplayPort
Thunderbolt „¢ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Slot

4x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)

Audio

Realtek ^® ALC897 Codec
7.1-Channel High Definition Audio

Storage

3x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280 devices
4x SATA 6G

*Please refer to the manual for M.2 SSD heatsink restrictions.

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

Onboard Thunderbolt

1x Thunderbolt4 ports (Rear)
Supports up to 40Gbps transfer rate with Thunderbolt devices
Supports up to 20Gbps transfer rate with USB4 devices
Supports up to 10Gbps transfer rate with USB 3.2 devices
Supports up to 5V/3A,15W power charging
Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
Supports up to 8K display

USB

2x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
1x USB 5Gbps Type C (Rear)
4x USB 5Gbps Type A (Front)
1x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)

LAN

Intel ^® Killer „¢ E5000 5Gbps LAN

Internal IO

1x Thunderbolt5 card connector(JTBT5, support RTD3)
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
3x System Fan
1x EZ Conn-header (JAF_1)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports

Wireless LAN & Bluetooth

Intel ^® Killer „¢ BE1750x Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth ^® 5.4**, MLO, 4KQAM

* 6GHz band support may depend on every country €™s regulations and Wi-Fi 7 will be ready in Windows 11 SV3.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.

LED Feature

4x EZ Debug LED

Back Panel Ports

Display Port

Clear CMOS Button

5G LAN

Wi-Fi / Bluetooth

Audio Connectors

HDMI „¢

Thunderbolt „¢ 4 40Gbps (Type-C)

USB 2.0

USB 5Gbps (Type-A)

USB 5Gbps (Type-C)

USB 10Gbps (Type-A)

Operating System

Support for Windows ^® 11 64-bit

Box Content

MSI B860M GAMING PLUS WIFI Motherboard

Quick Installation Guide

European Union Regulatory Notice

EZ Wi-Fi Antenna

1 to 2 EZ Conn-Cable (V1)

SATA Cable

EZ M.2 Clip II

EZ M.2 Clip II Remover

2 x M.2 Screw and Standoff Sets

PCB Info

mATX
243.84mmx243.84mm
