MSI MAG A850GL PCIE5 850W PSU
HomeStore

MSI MAG A850GL PCIE5 850W PSU

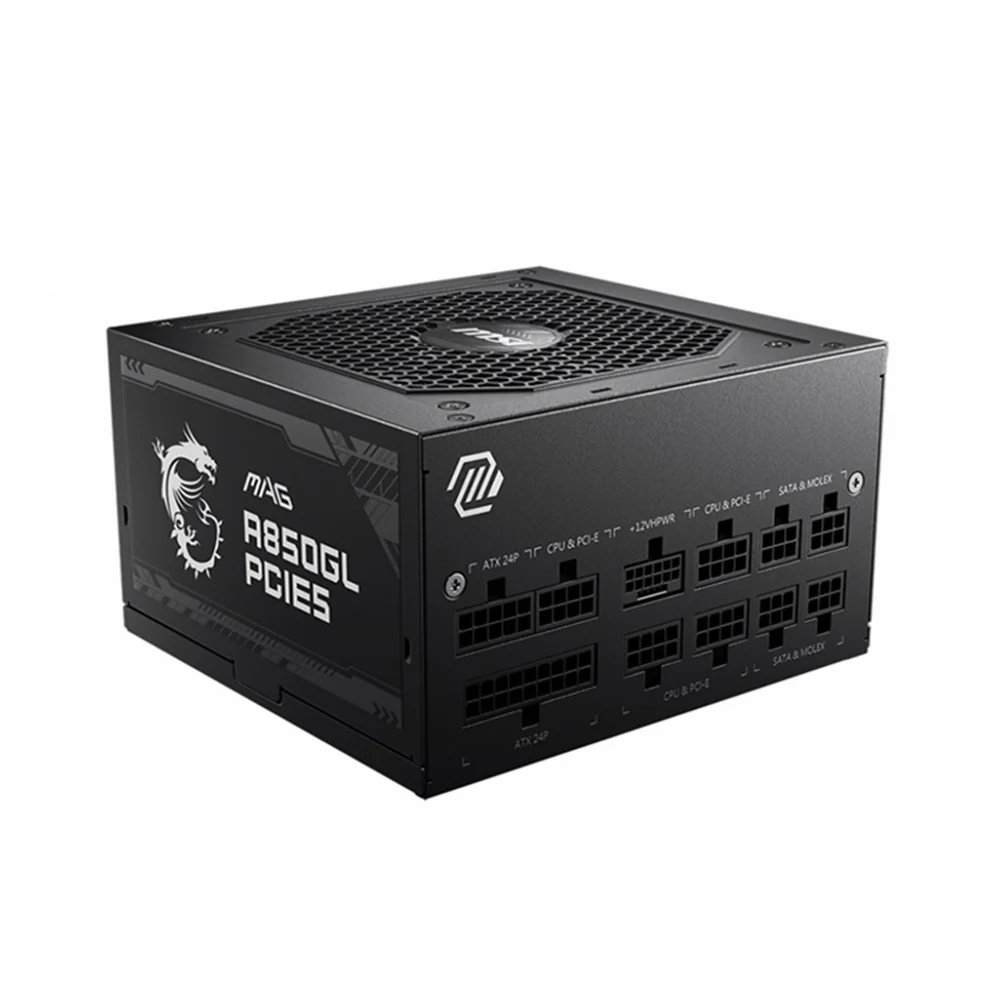

MSI MAG A850GL PCIE5 850W PSU

MSI MAG A850GL PCIE5 850W Up to 90% (80 Plus Gold) ATX Power Supply Unit

FEATURES:

  • ATX 3.0 compatible, native PCIe 5.0 connector
  • Supports NVIDIA® GeForce RTX™ 40 Series graphics cards
  • Full modular design,Flat cables
  • 80 Plus Gold certified for high efficiency
  • Active PFC design,Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
  • 120mm Fluid Dynamic Bearing Fan
  • LLC Full Bridge Topology with DC-DC module design

SPECIFICATIONS:

  • EFFICIENCY RATING 80 PLUS Gold (up to 90%)
  • MODULAR Yes (full modular)
  • FAN SIZE 120 mm
  • FAN BEARING Fluid Dynamic Bearing
  • DIMENSIONS (DXWXH) 140 x 150 x 86 mm
  • PFC TYPE Active PFC
  • INPUT VOLTAGE RANGE 100~240 VAC
  • POWER WATT 850W
  • POWER EXCURSION 1700W (*up to 200% of the PSU's rated power for 100μs)
  • INPUT FREQUENCY RANGE 47-63Hz
  • PROTECTION OCP / OVP / OPP / OTP / SCP / UVP
  • ATX (24 PIN) 1
  • EPS (4+4 PIN) 2
  • PCI-E 5.0 (16 PIN) 1 (600W)
  • PCI-E (6+2 PIN) 4
  • SATA (15 PIN) 8
  • MOLEX (4 PIN) 4
  • FDD (4 PIN) 1
$141.81
MSI MAG A850GL PCIE5 850W PSU
$141.81

More Images

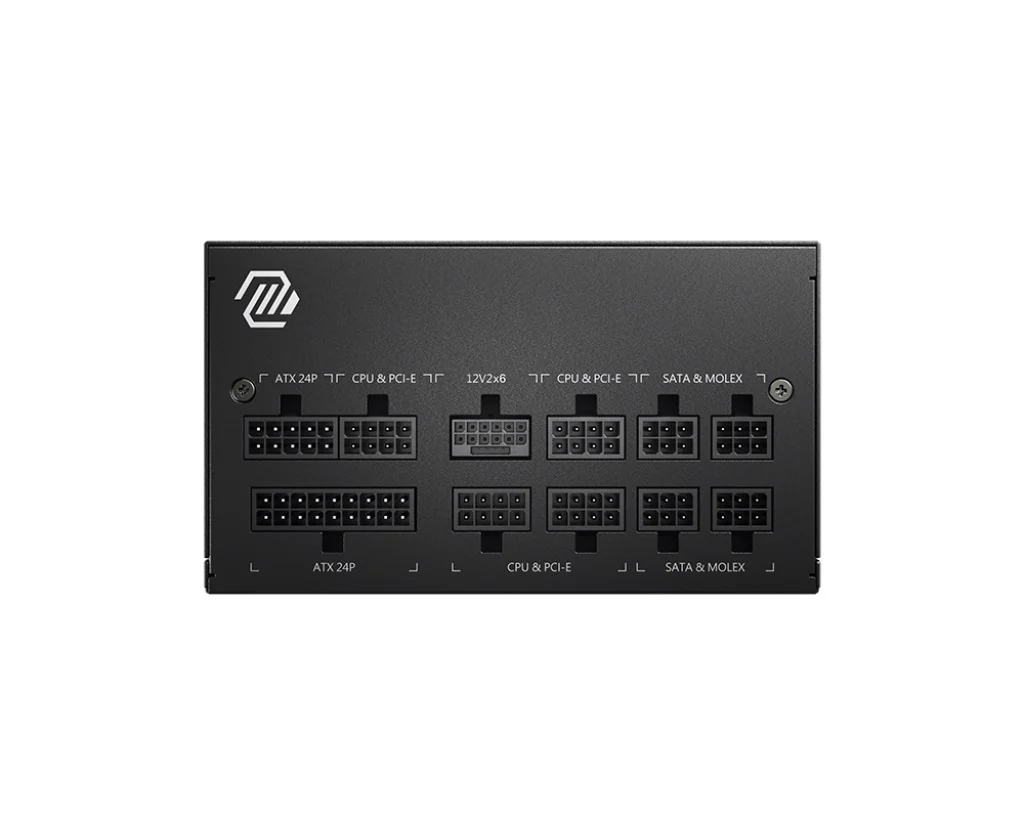

MSI MAG A850GL PCIE5 850W PSU - Image 2

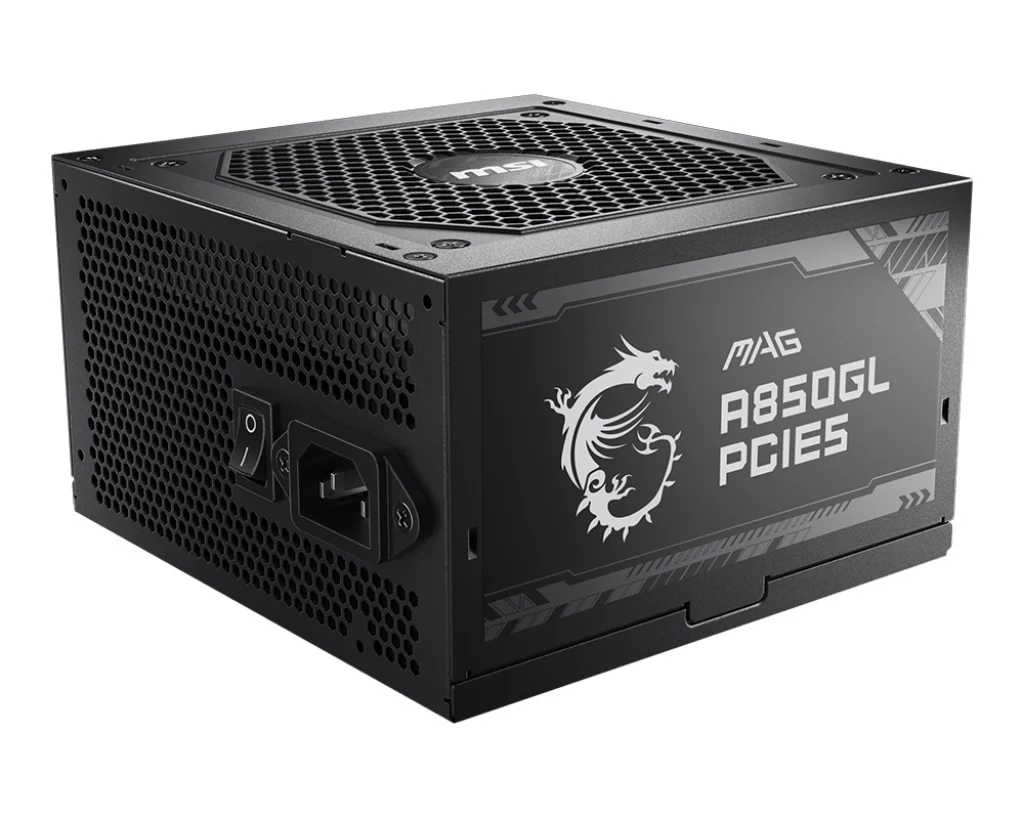

MSI MAG A850GL PCIE5 850W PSU - Image 3

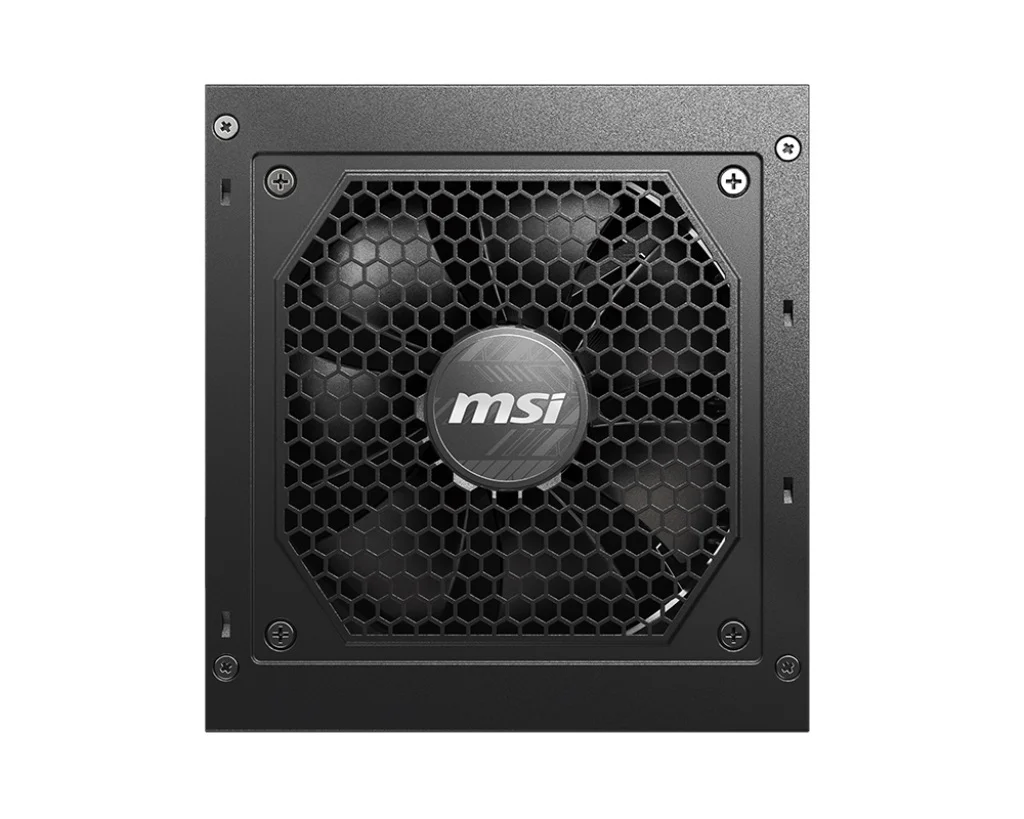

MSI MAG A850GL PCIE5 850W PSU - Image 4

MSI MAG A850GL PCIE5 850W PSU

MSI MAG A850GL PCIE5 850W Up to 90% (80 Plus Gold) ATX Power Supply Unit

FEATURES:

  • ATX 3.0 compatible, native PCIe 5.0 connector
  • Supports NVIDIA® GeForce RTX™ 40 Series graphics cards
  • Full modular design,Flat cables
  • 80 Plus Gold certified for high efficiency
  • Active PFC design,Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
  • 120mm Fluid Dynamic Bearing Fan
  • LLC Full Bridge Topology with DC-DC module design

SPECIFICATIONS:

  • EFFICIENCY RATING 80 PLUS Gold (up to 90%)
  • MODULAR Yes (full modular)
  • FAN SIZE 120 mm
  • FAN BEARING Fluid Dynamic Bearing
  • DIMENSIONS (DXWXH) 140 x 150 x 86 mm
  • PFC TYPE Active PFC
  • INPUT VOLTAGE RANGE 100~240 VAC
  • POWER WATT 850W
  • POWER EXCURSION 1700W (*up to 200% of the PSU's rated power for 100μs)
  • INPUT FREQUENCY RANGE 47-63Hz
  • PROTECTION OCP / OVP / OPP / OTP / SCP / UVP
  • ATX (24 PIN) 1
  • EPS (4+4 PIN) 2
  • PCI-E 5.0 (16 PIN) 1 (600W)
  • PCI-E (6+2 PIN) 4
  • SATA (15 PIN) 8
  • MOLEX (4 PIN) 4
  • FDD (4 PIN) 1

Product Information

Shipping & Returns

Description

MSI MAG A850GL PCIE5 850W Up to 90% (80 Plus Gold) ATX Power Supply Unit

FEATURES:

  • ATX 3.0 compatible, native PCIe 5.0 connector
  • Supports NVIDIA® GeForce RTX™ 40 Series graphics cards
  • Full modular design,Flat cables
  • 80 Plus Gold certified for high efficiency
  • Active PFC design,Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
  • 120mm Fluid Dynamic Bearing Fan
  • LLC Full Bridge Topology with DC-DC module design

SPECIFICATIONS:

  • EFFICIENCY RATING 80 PLUS Gold (up to 90%)
  • MODULAR Yes (full modular)
  • FAN SIZE 120 mm
  • FAN BEARING Fluid Dynamic Bearing
  • DIMENSIONS (DXWXH) 140 x 150 x 86 mm
  • PFC TYPE Active PFC
  • INPUT VOLTAGE RANGE 100~240 VAC
  • POWER WATT 850W
  • POWER EXCURSION 1700W (*up to 200% of the PSU's rated power for 100μs)
  • INPUT FREQUENCY RANGE 47-63Hz
  • PROTECTION OCP / OVP / OPP / OTP / SCP / UVP
  • ATX (24 PIN) 1
  • EPS (4+4 PIN) 2
  • PCI-E 5.0 (16 PIN) 1 (600W)
  • PCI-E (6+2 PIN) 4
  • SATA (15 PIN) 8
  • MOLEX (4 PIN) 4
  • FDD (4 PIN) 1
