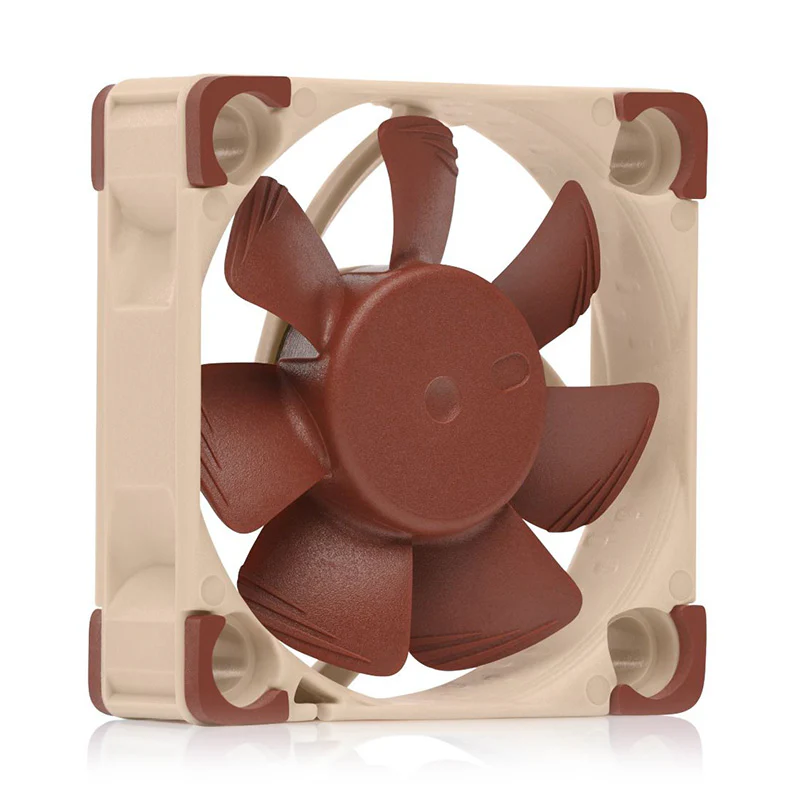

Noctua 40mm NF-A4x10 24V PWM Fan (NF-A4x10 24V PWM)
SPECIFICATIONS:
Size |
40x40x10 mm |
Mounting hole spacing |
32x32 mm |
Connector & pin-configuration |
4-pin PWM |
Cable length |
20cm + 30cm NA-EC1 extension cable |
Bearing |
SSO2 |
Blade geometry |
A-Series with Flow Acceleration Channels |
Frame technology |
AAO (Advanced Acoustic Optimisation) |
Material |
Fibre-glass reinforced PBT |
Rotational speed (+/- 10%) |
5000 RPM |
Airflow |
8,9 m ³/h |
Acoustical noise |
19,6 dB(A) |
Static pressure |
1,95 mm H O |
Input power (max.) |
1,08 W |
Max. input current |
0,045 A |
Operating voltage |
24 V |
MTTF |
> 150.000 h |
Scope of delivery |
NA-AC9 4-pin molex to 2-pin adaptor cable OmniJoin ¢ adaptor set NA-EC1 30cm extension cable NA-RC8 Low-Noise Adaptor (L.N.A) 4x NA-AV3 anti-vibration mounts Fan screws |
Notes and warnings |
Caution: Being a 24V fan, the NF-A4x10 24V cannot be run at 12V and requires a starting voltage of at least 17V. It is therefore not suitable for standard PC applications. |
