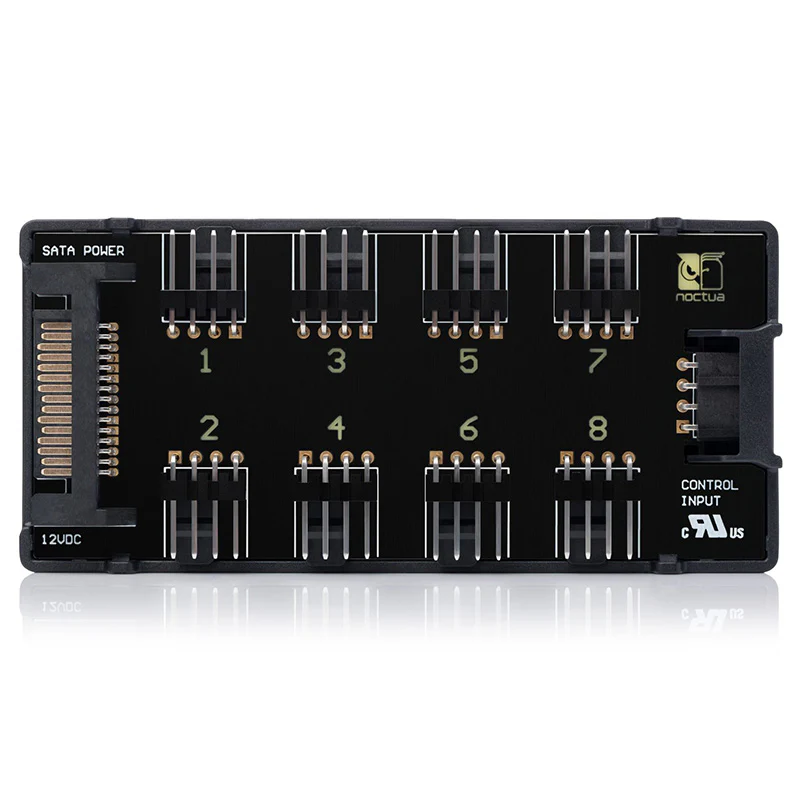

Noctua 8 Port Fan Hub (NA-FH1)
SPECIFICATIONS:
Output connectors |
8x 4-pin PWM |
Input connectors |
1x S-ATA (for 12V fans only), 1x 4-pin PWM |
Max. power via S-ATA input |
54 W |
Max. power via 4-pin PWM input |
24 W |
Operating voltage |
5-12 V |
Operating temperature |
-40 °C to +60 °C |
Flammability class |
UL-94 V-0 |
Safety standards |
EN 62368-1, EN 55035, EN 55032, UL-507 |
Certifications |
CE, UKCA, UL |
Size |
93x43x12.5 mm |
Weight |
31 g |
Fan compatibility |
All Noctua 12V and 5V fans, many third party fans |
Scope of delivery |
NA-FH1 fan hub NA-EC1 4-pin PWM input cable |
Notes |
Caution: Do not place directly on hard disk drives, keep at least 5cm distance. When powering via the 4-pin input from a PC motherboard, please check your motherboard manual for the maximum current of the fan header and make sure not to exceed it. |
