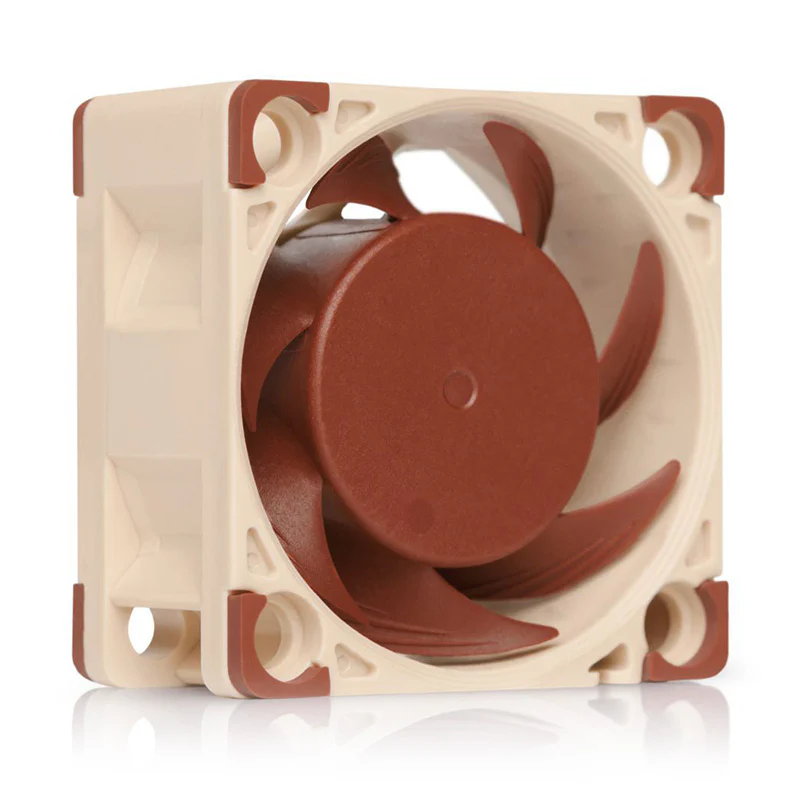

Noctua NF-A4X20-FLX FLX 40mm Fan
SPECIFICATIONS:
|
Size |
40x40x20 mm |
|
Mounting hole spacing |
32x32 mm |
|
Connector & pin-configuration |
3-pin |
|
Cable length |
20cm + 30cm NA-EC1 extension cable |
|
Bearing |
SSO2 |
|
Blade geometry |
A-Series with Flow Acceleration Channels |
|
Frame technology |
AAO (Advanced Acoustic Optimisation) |
|
Rotational speed (+/- 10%) |
5000 RPM |
|
Rotational speed with L.N.A. (+/- 10%) |
4400 RPM |
|
Rotational Speed with U.L.N.A. (+/- 10%) |
3700 RPM |
|
Airflow |
9,4 m³/h |
|
Airflow with L.N.A. |
8,3 m³/h |
|
Airflow with U.L.N.A. |
6,9 m³/h |
|
Acoustical noise |
14,9 dB(A) |
|
Acoustical noise with L.N.A. |
12,2 dB(A) |
|
Acoustical noise with U.L.N.A. |
8,5 dB(A) |
|
Static pressure |
2,26 mm H‚‚O |
|
Static pressure with L.N.A. |
1,75 mm H‚‚O |
|
Static pressure with U.L.N.A. |
1,23 mm H‚‚O |
|
Input power (typical) |
0,46 W |
|
Input power (max.) |
0,6 W |
|
Input current (typical) |
0,04 A |
|
Max. input current |
0,05 A |
|
Operating voltage |
12 V |
|
MTTF |
> 150.000 h |
|
Scope of delivery |
Low-Noise Adaptor (L.N.A.) Ultra-Low-Noise Adaptor (U.L.N.A.) 30cm extension cable OmniJoin„¢ adaptor set NA-AV3 anti-vibration mounts Fan screws |
Original: $27.50
-70%$27.50
$8.25Noctua NF-A4X20-FLX FLX 40mm Fan
