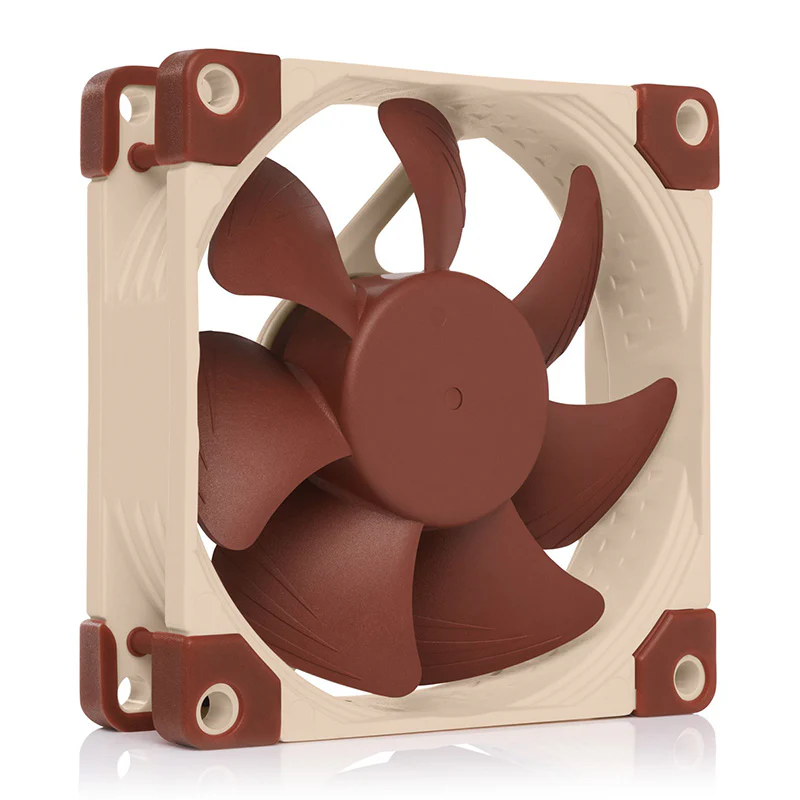

Noctua NF-A8-PWM 80mm PWM Fan

Size

80x80x25 mm

Mounting hole spacing

71,5x71,5 mm

Connector & pin-configuration

4-pin PWM

Cable length

20cm + 30cm NA-EC1 extension cable

Bearing

SSO2

Blade geometry

A-Series with Flow Acceleration Channels

Frame technology

AAO (Advanced Acoustic Optimisation)

Rotational speed (+/- 10%)

2200 RPM

Rotational speed with L.N.A. (+/- 10%)

1750 RPM

Min. rotational speed @ 20% PWM (+/-20%)

450 RPM

Airflow

55,5 m³/h

Airflow with L.N.A.

43,9 m³/h

Acoustical noise

17,7 dB(A)

Acoustical noise with L.N.A.

13,8 dB(A)

Static pressure

2,37 mm

Static pressure with L.N.A.

1,54 mm

Input power (typical)

0,75 W

Input power (max.)

0,96 W

Input current (typical)

0,06 A

Max. input current

0,08 A

Operating voltage

12 V

MTTF

> 150.000 h

Scope of delivery

Low-Noise Adaptor (L.N.A.)

4-Pin Y-Cable

30cm Extension Cable

4 Vibration-Compensators

4 Fan Screws
