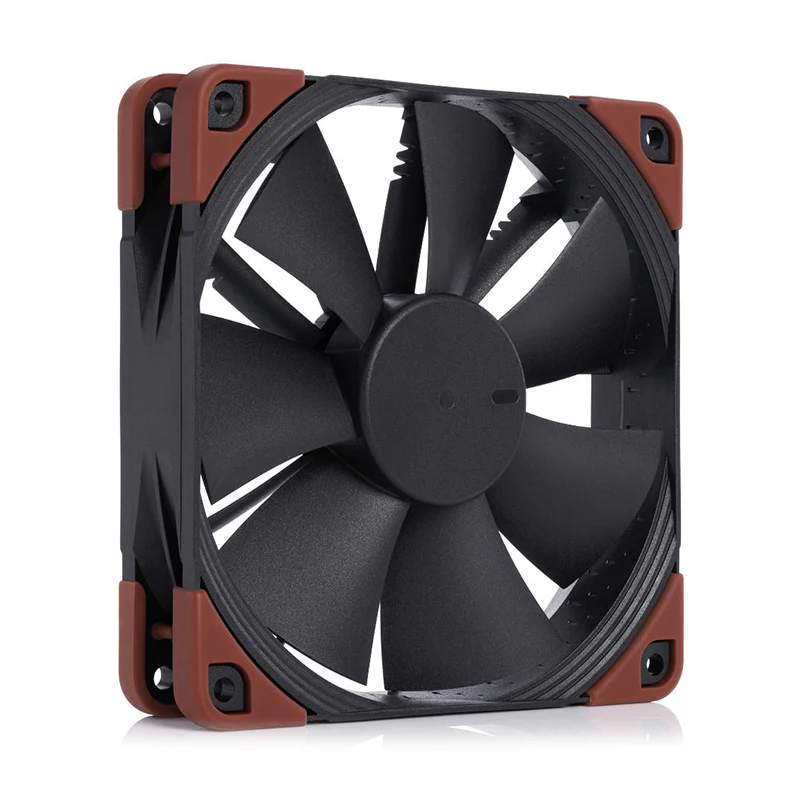

Noctua NF-F12 iPPC 2000 IP67 PWM 120mm Fan (NF-F12-IPPC-2000-IP67-PWM)

Mounting hole spacing

105x105 mm

Connector & pin-configuration

4-pin PWM

Cable length

40cm

Bearing

SSO2

Blade geometry

Heptaperf „¢

Frame technology

FocusedFlow „¢

Material

Fibre-glass reinforced polyamide

Ingress protection

IP67

Motor type

Three-phase

Rotational speed (+/- 10%)

2000 RPM

Min. rotational speed @ 20% PWM (+/-20%)

450 RPM

Airflow

121,8 m ³/h

Acoustical noise

29,7 dB(A)

Static pressure

3,94 mm H ‚‚O

Input power (typical)

1,06 W

Input power (max.)

1,2 W

Input current (typical)

0,09 A

Max. input current

0,1 A

Operating voltage

12 V

MTTF

> 150.000 h

Scope of delivery

Fan

4 Fan Screws

Notes and warnings

The industrialPPC models are high-speed fans for industrial applications. As such, they are not as quiet as other Noctua fans and less suited for low-noise PC builds. Unless you specifically require the higher speeds and performance of the industrialPPC versions, we recommend using models of our other product lines (chromax if you prefer black fans) instead.
