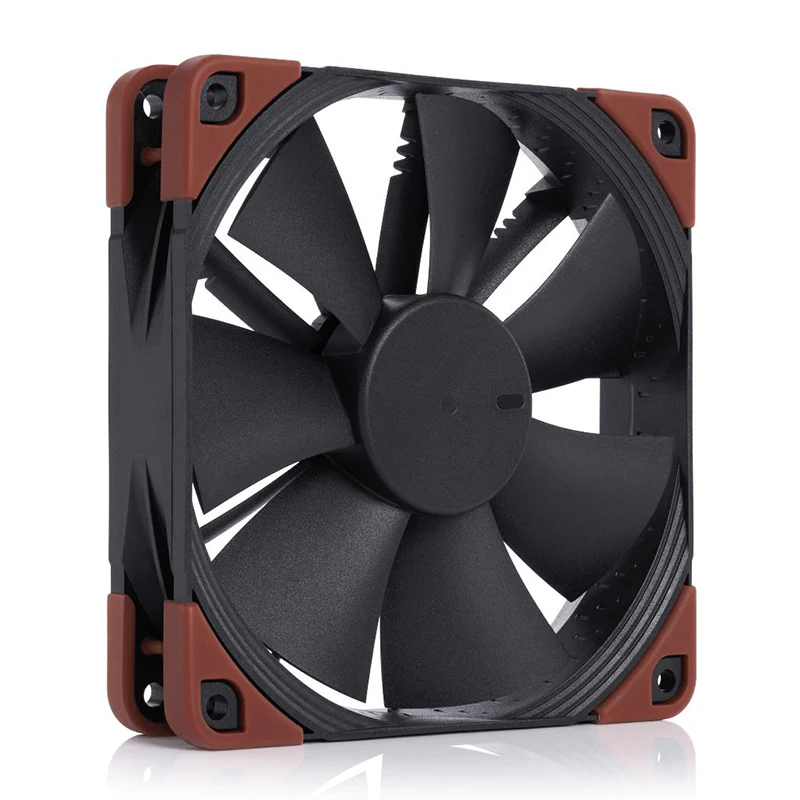

Noctua NF-F12-iPPC-2000-PWM 120mm IndustrialPPC IP52 2000RPM PWM Fan

Size

120x120x25 mm

Mounting hole spacing

105x105 mm

Connector & pin-configuration

4-pin PWM

Cable length

40cm

Bearing

SSO2

Blade geometry

Heptaperf™

Frame technology

FocusedFlow™

Material

Fibre-glass reinforced polyamide

Ingress protection

IP52

Motor type

Three-phase

Rotational speed (+/- 10%)

2000 RPM

Min. rotational speed @ 20% PWM (+/-20%)

450 RPM

Airflow

121,8 m³/h

Acoustical noise

29,7 dB(A)

Static pressure

3,94 mm H₂O

Input power (typical)

1,06 W

Input power (max.)

1,2 W

Input current (typical)

0,09 A

Max. input current

0,1 A

Operating voltage

12 V

MTTF

> 150.000 h

Scope of delivery

Fan

4 Fan Screws
