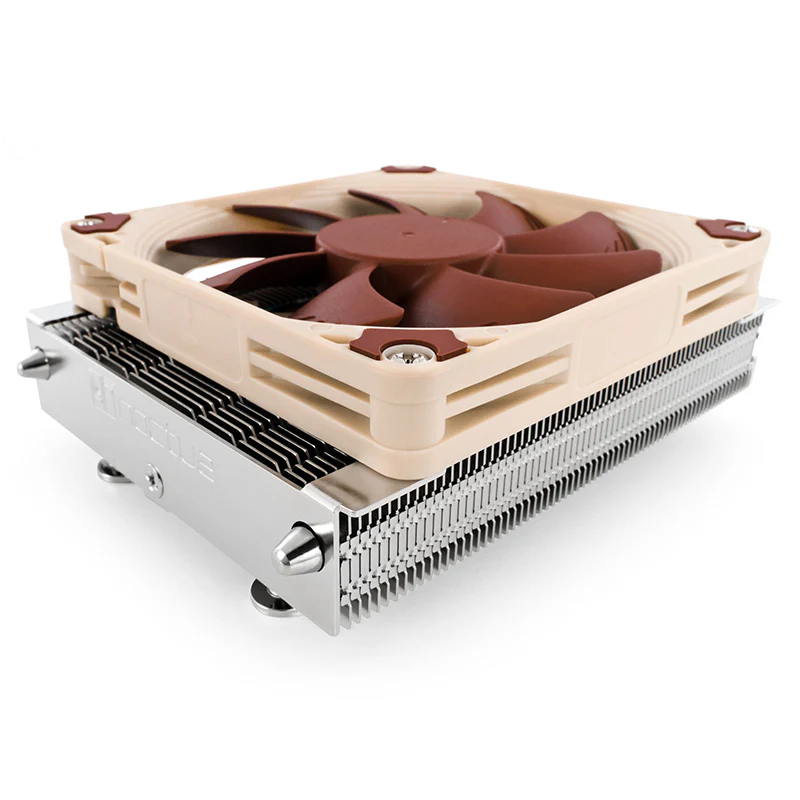

Noctua NH-L9a-AM4Low Profile AMD CPU Cooler
SPECIFICATIONS:
|
COOLER SPECIFICATION |
|
|
Socket compatibility |
AMD AM4 |
|
Height (without fan) |
23 mm |
|
Width (without fan) |
114 mm |
|
Depth (without fan) |
92 mm |
|
Weight (without fan) |
390 g |
|
Height (with fan) |
37 mm |
|
Width (with fan) |
114 mm |
|
Depth (with fan) |
92 mm |
|
Weight (with fan) |
465 g |
|
Material |
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating |
|
NSPR |
61 |
|
Max. TDP |
see NSPR |
|
Fan compatibility |
92x92x14mm, 92x92x25mm |
|
Scope of delivery |
NF-A9x14 PWM premium fan Low-Noise Adaptor (L.N.A.) NT-H1 high-grade thermal compound SecuFirm2™ AM4 mounting kit Screws for 92x92x25mm fans Noctua metal case-badge |
|
FAN SPECIFICATION |
|
|
Model Noctua |
NF-A9x14 PWM |
|
Bearing |
SSO2 |
|
Max. rotational speed (+/- 10%) |
2500 RPM |
|
Max. rotational speed with L.N.A. (+/- 10%) |
1800 RPM |
|
Min. rotational speed @ 20% PWM (+/-20%) |
600 RPM |
|
Max. airflow |
57,5 m³/h |
|
Max. airflow with L.N.A. |
40,8 m³/h |
|
Max. acoustical noise |
23,6 dB(A) |
|
Max. acoustical noise with L.N.A. |
14,8 dB(A) |
|
Input power (max.) |
2,52 W |
|
Voltage range |
12 V |
|
MTTF |
> 150.000 h |
|
OTHERS |
|
|
Notes and warnings |
The NH-L9a-AM4 is a highly compact, quiet low-profile cooler designed for use in small form factor cases and HTPC environments. While it provides first-rate performance in its class, it is not suitable for overclocking and or CPUs that create high heat loads. Please consult our CPU compatibility list to find out whether the NH-L9a-AM4 is recommended for your CPU/APU. |
