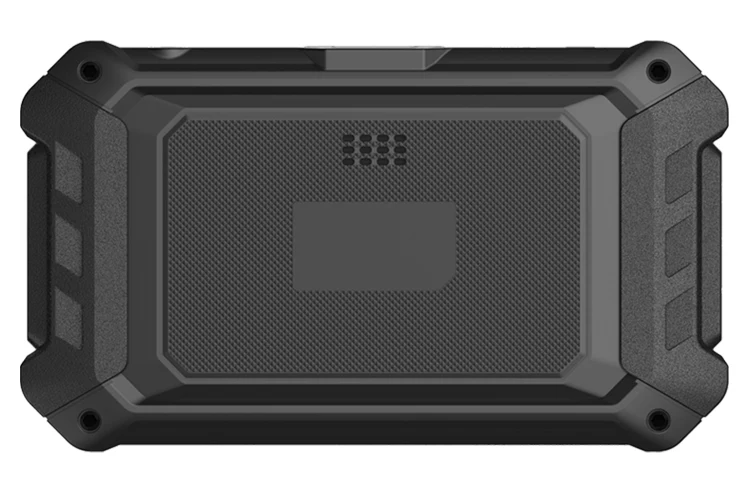

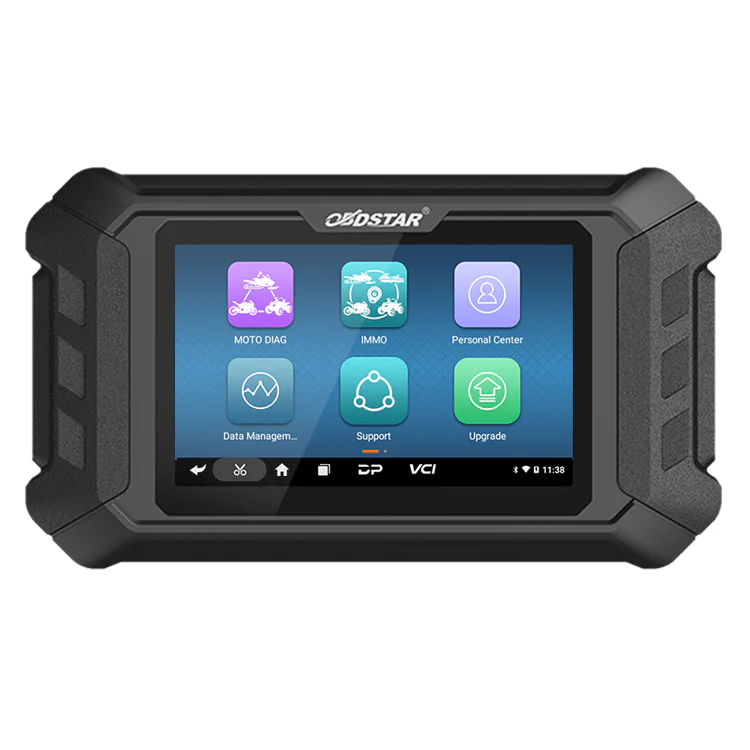

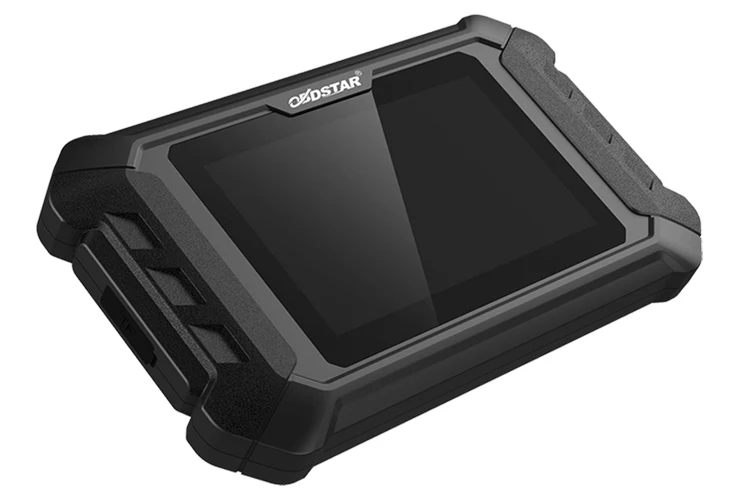

OBDSTAR iScan Diagnostic Scan Tool For Harley Davidson Motorcycle

OBDSTAR ISCAN Harley Davidson Motorcycle Scanner

• New Android 5.1.1 operating system
• Quick menu for easy selection
• Record and play back real-time data
• Simple and intuitive menu guidance
• Locate sensor and component faults
• Complete diagnostic functions
• Wi-Fi connectivity
• One-click software upgrade
• One-click remote function

Specifications:

• Operating system: Android 5.1.1
• CPU: RK3128 quad-core ARM Cortex A7
• Battery: 2600mAh rechargeable lithium polymer
• Extension memory: Supports 32GB microSD (TF) card
• LCD: 5.0-inch capacitive touchscreen
• Resolution: 800×480
• Wi-Fi: Supported
• Working temperature: -20°C to 55°C (14°F to 131°F)
• Storage temperature: -20°C to 70°C (-4°F to 158°F)
• Weight: Approx. 700g
• Dimensions: 198mm × 115mm × 31mm

Advanced Functions:

• Fault guidance, help data, technical bulletins, and diagnostic socket aid for accurate diagnosis
• Diversified data display modes (text, waveform diagram, instrument diagram) for easy fault analysis
• Automatic scanning, VIN recognition, control module programming & coding
• ECU settings, instrument coding, tire pressure monitoring, maintenance light reset
• CO adjustment, idle speed adjustment, A/F value reset
• ABS control unit settings, EOL mode, transmission memory reset, clearing computer memory
