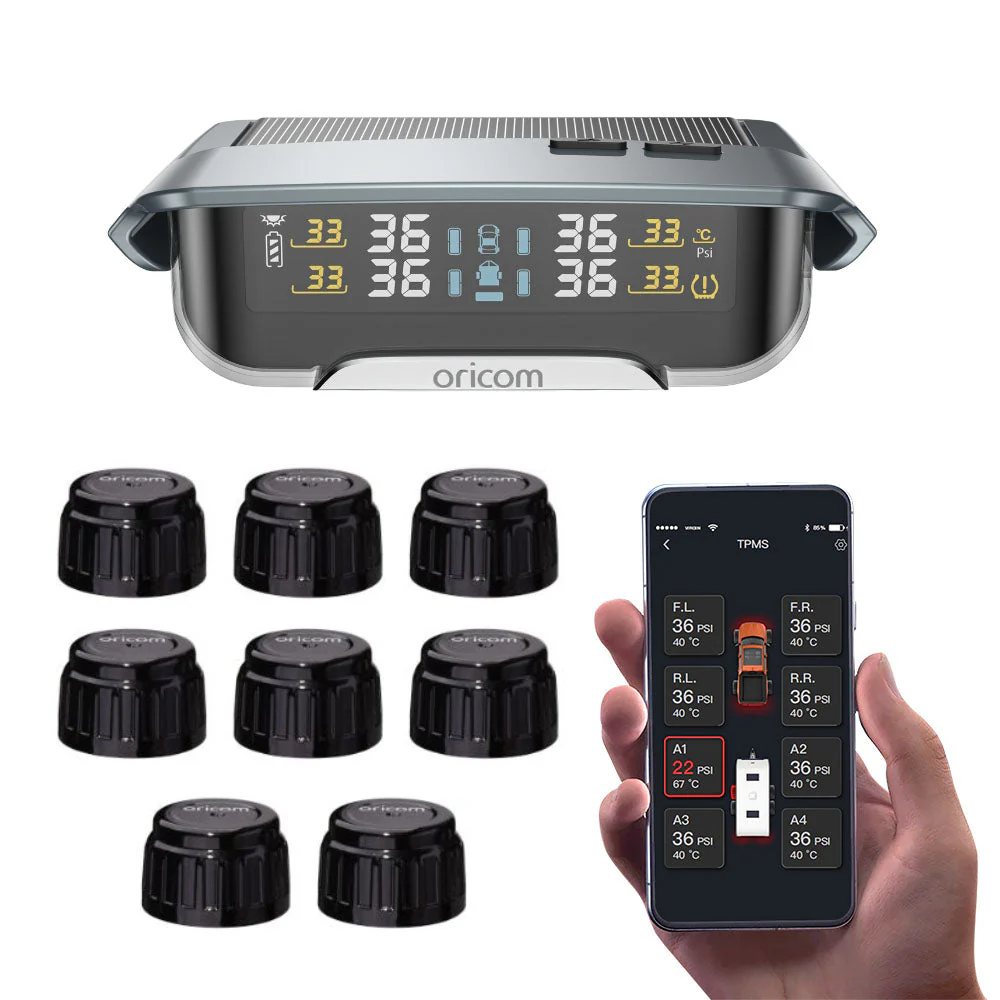

Oricom TPMS10-8E Tyre Pressure Monitoring System Including 8 External Sensors (with APP Functionality)
Oricom TPMS10-8E Tyre Pressure Monitoring System Including 8 External Sensors (with APP Functionality)
Key Features:
* Compatible with up to 10 tyre sensors
* Easy setup with the free app
* Switch between Offroad and Normal modes to
save tyre pressure settings

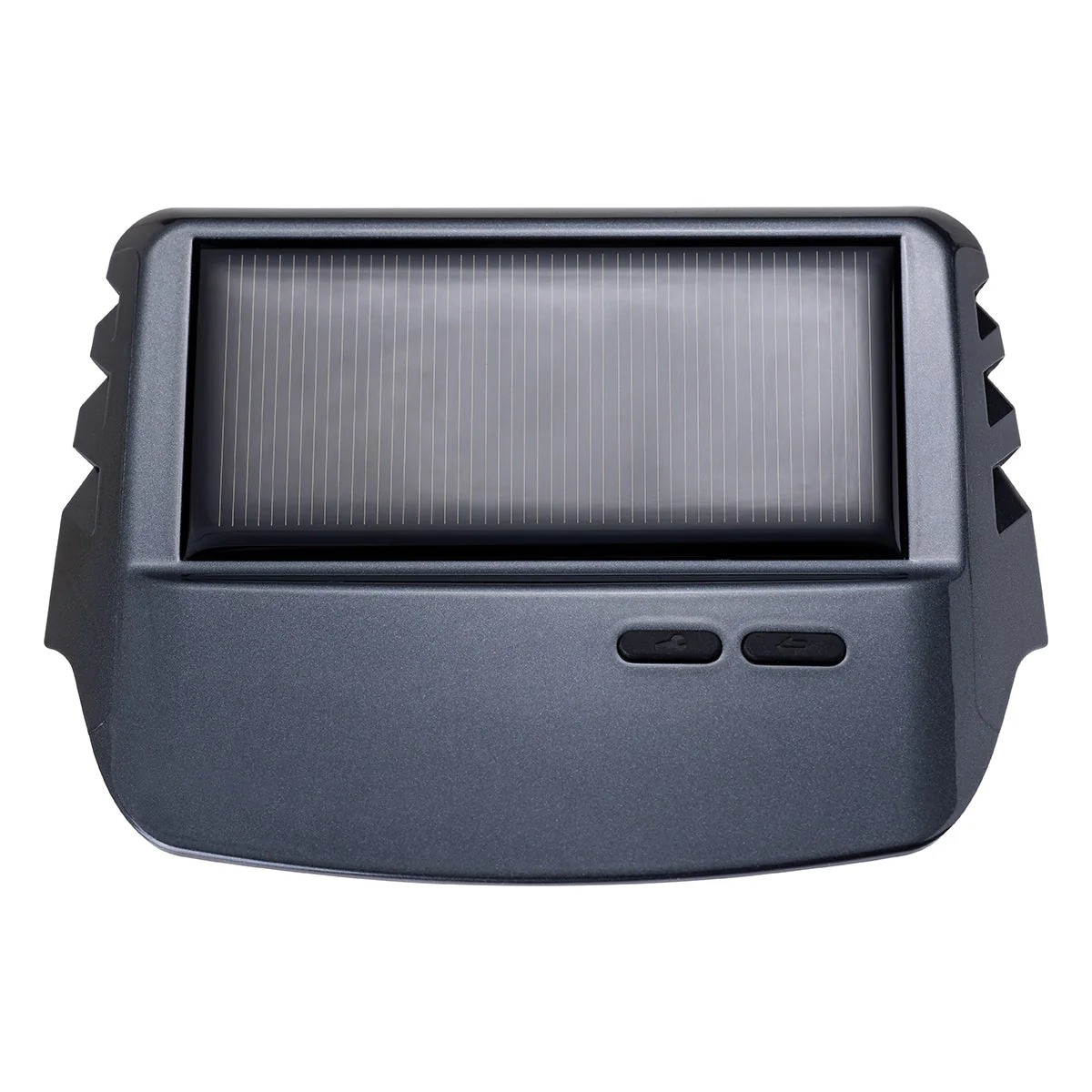

* Compact solar powered display unit
* Long lasting display unit battery life
* Wireless transmission between sensor
and display unit
* Adjustable threshold value
* Auto brightness on display
* Monitors pressure and temperature
* Visual and audio alarm

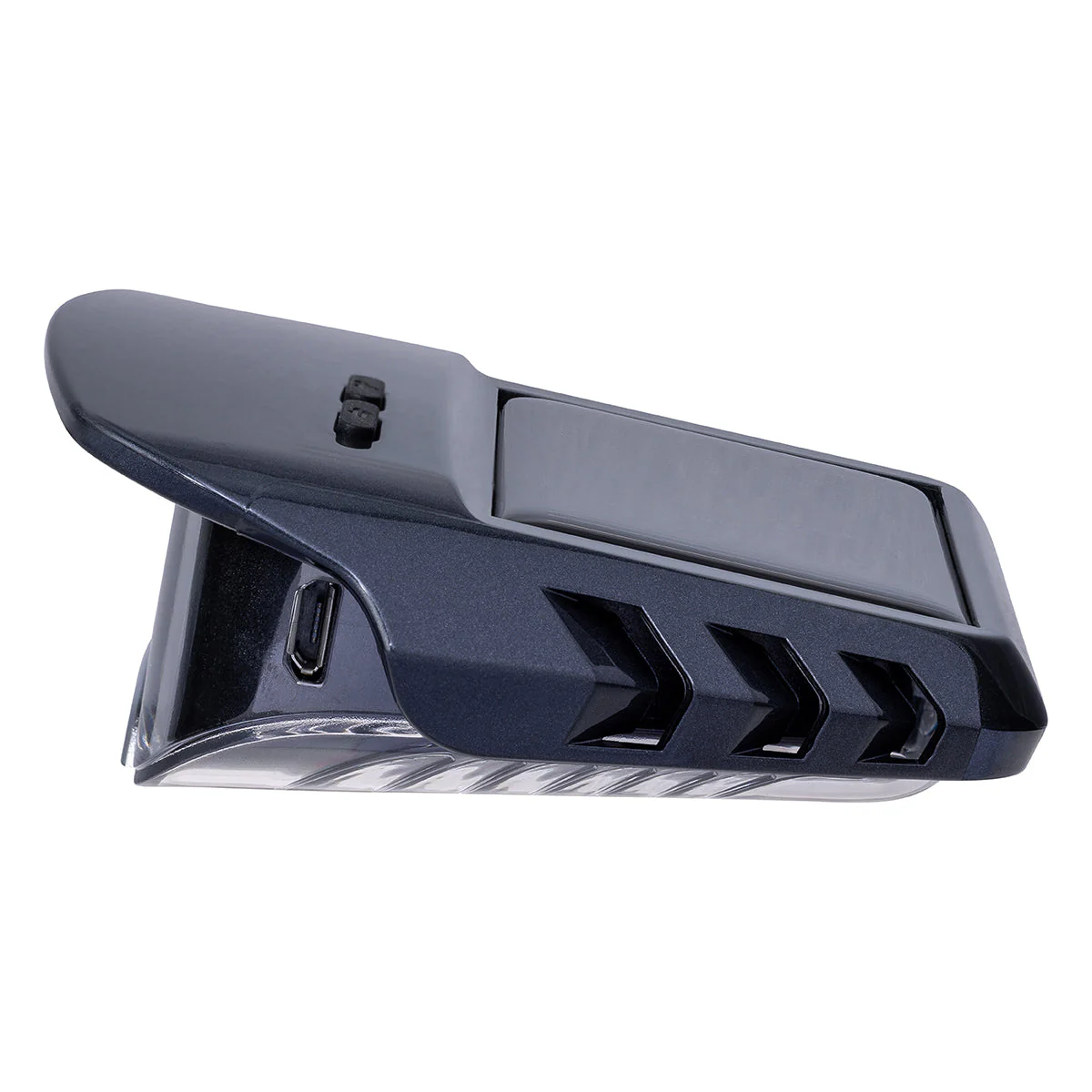

* Optional micro USB input
* Intelligent sleeping mode for power saving
* High/ low pressure warning
* Sensor failure warning
* 12 Month warranty
Technical Specifications:
Sensor:
Operating frequency: 433.92MHz 0.05MHz
Operating voltage: 2.3 ~ 3.3V
Operating current: 1 2mA
Static current: 0.5uA
Operating temperature: -20 C ~ +80 C
Storage temperature: -40 C ~ +80 C
Battery model: CR1632
Display:
Operating frequency: 433.92MHz 0.05MHz, 2.4GHz BLE
Operating current: 32mA
Static current: 45uA
Operating voltage: 2.6 ~ 3.6V
Operating temperature: -20 C ~ +70 C
Storage temperature: -40 C ~ +95 C
Built-in battery capacity: 500mAh
Charging temperature: -10 C ~ 65 C
Solar charging current: 15mA (at 5500LX 25 C)
USB Charging current: 70mA
Product contains button battery/(ies).
WARNING - KEEP BUTTON BATTERIES OUT OF REACH OF CHILDREN
- Button/coin cell batteries are hazardous and must be kept out of reach of children at all times, whether the battery is new or used.
- If it is suspected a button/coin cell battery has been swallowed or placed inside any part of the body, seek medical attention immediately or contact the Australian Poisons Information Centre on 131126 for 24/7 fast, expert advice. These batteries can cause severe or fatal injuries in 2 hours or less if swallowed or placed inside any part of the body.
- Regularly examine devices and make sure the battery compartment is correctly secured, e.g. that the screw or other mechanical fastener is tightened. Do not use if compartment is not secure.
- Dispose of used button batteries immediately and safely out of the reach of children. A battery can still be dangerous even when it can no longer operate the device.
- Tell others about the risk associated with button batteries and how to keep their children safe.
