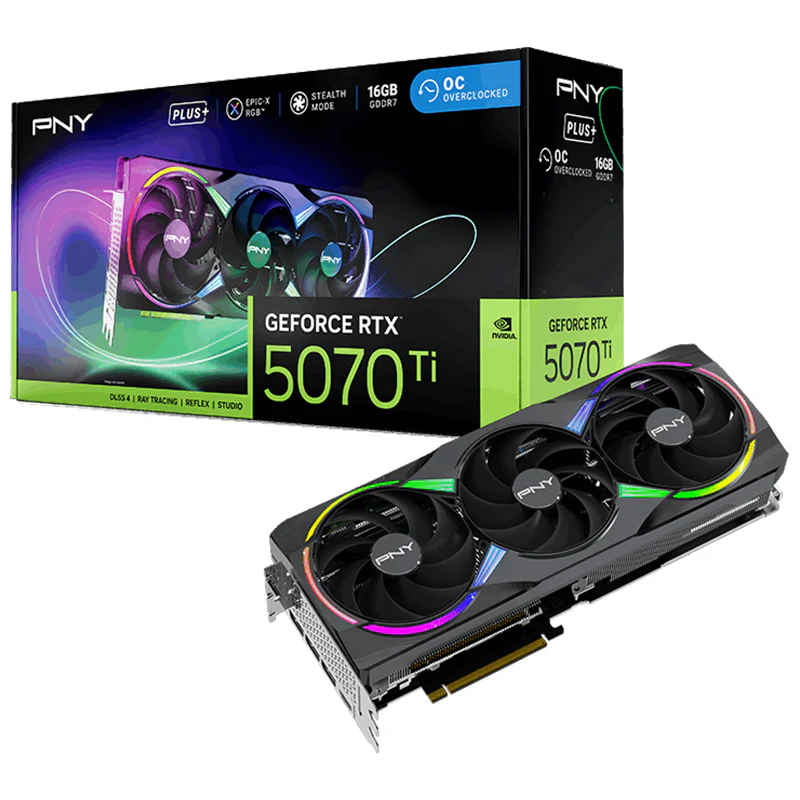

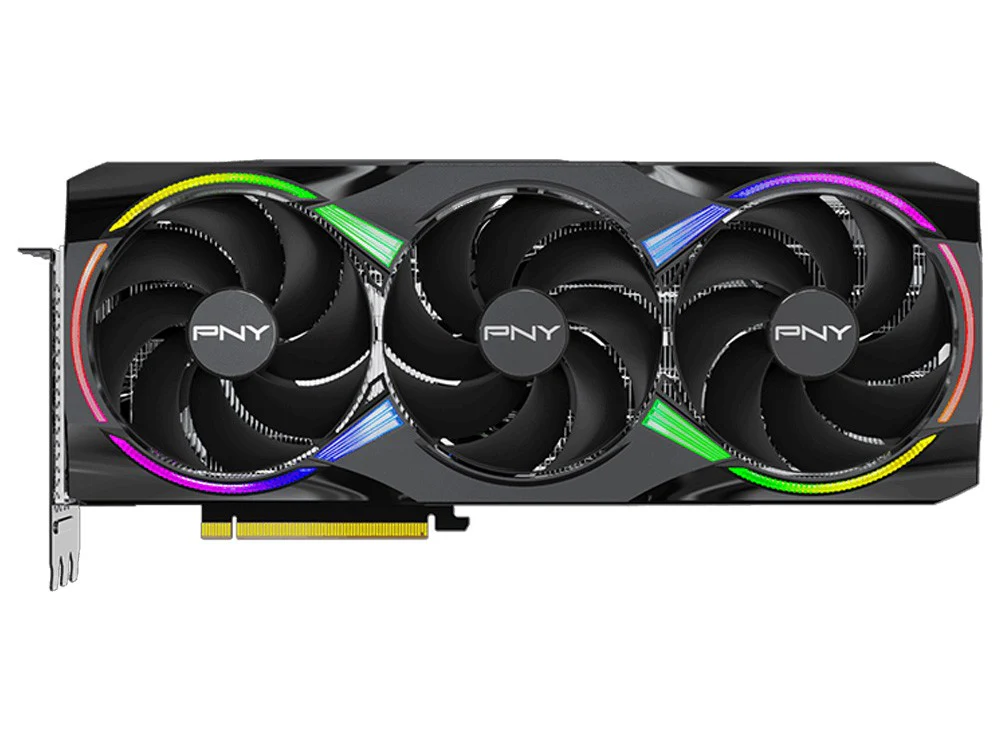

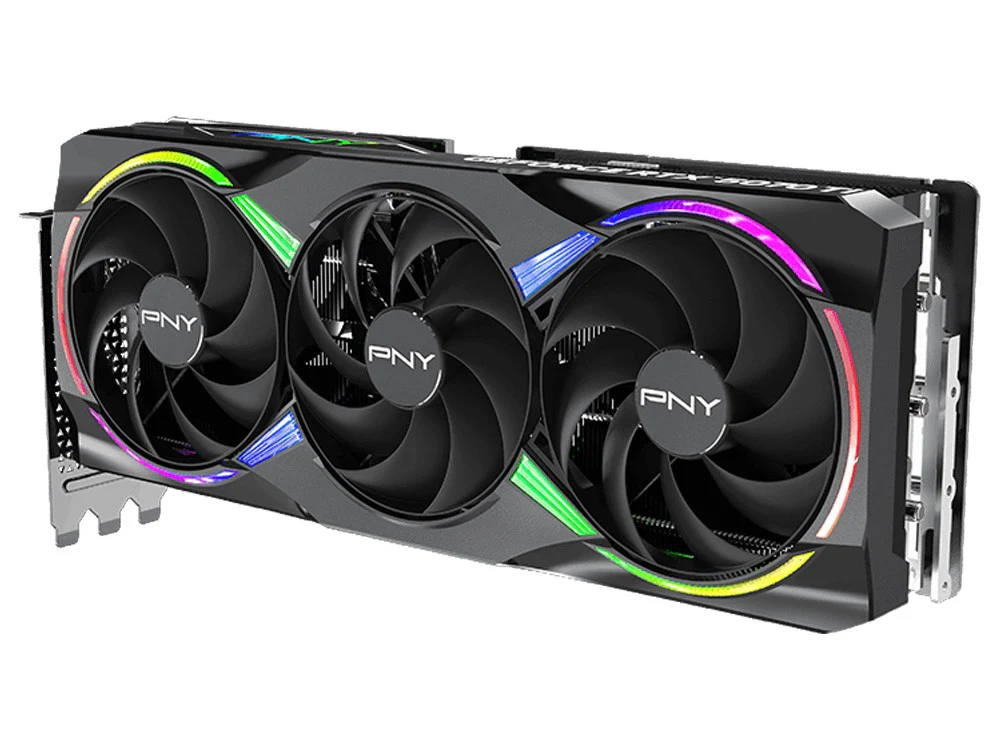

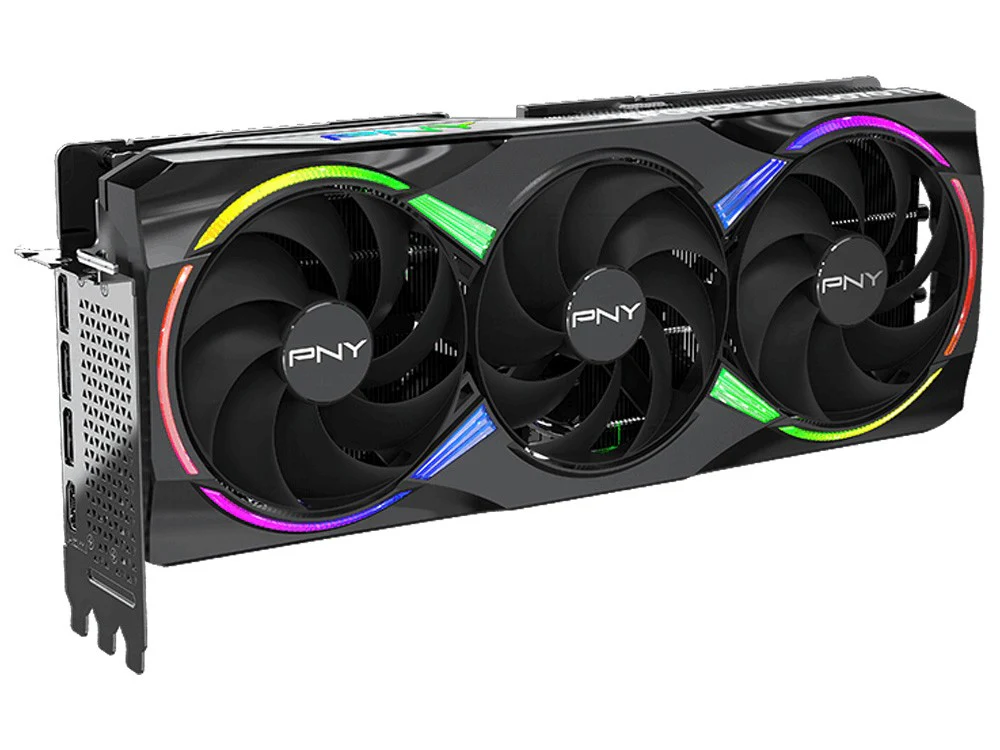

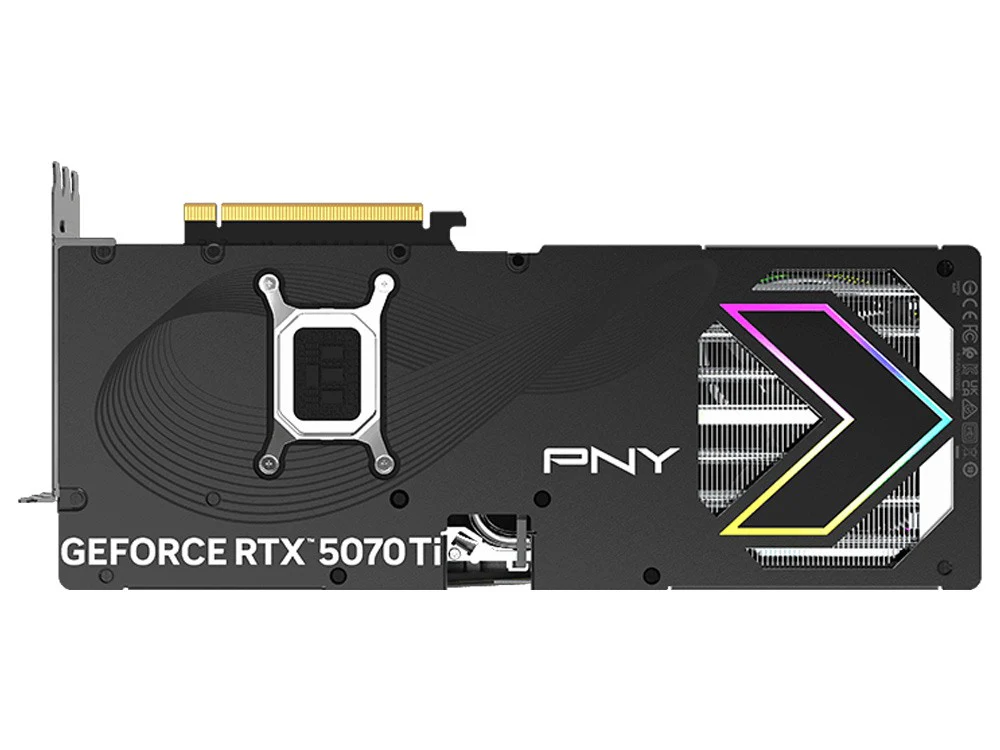

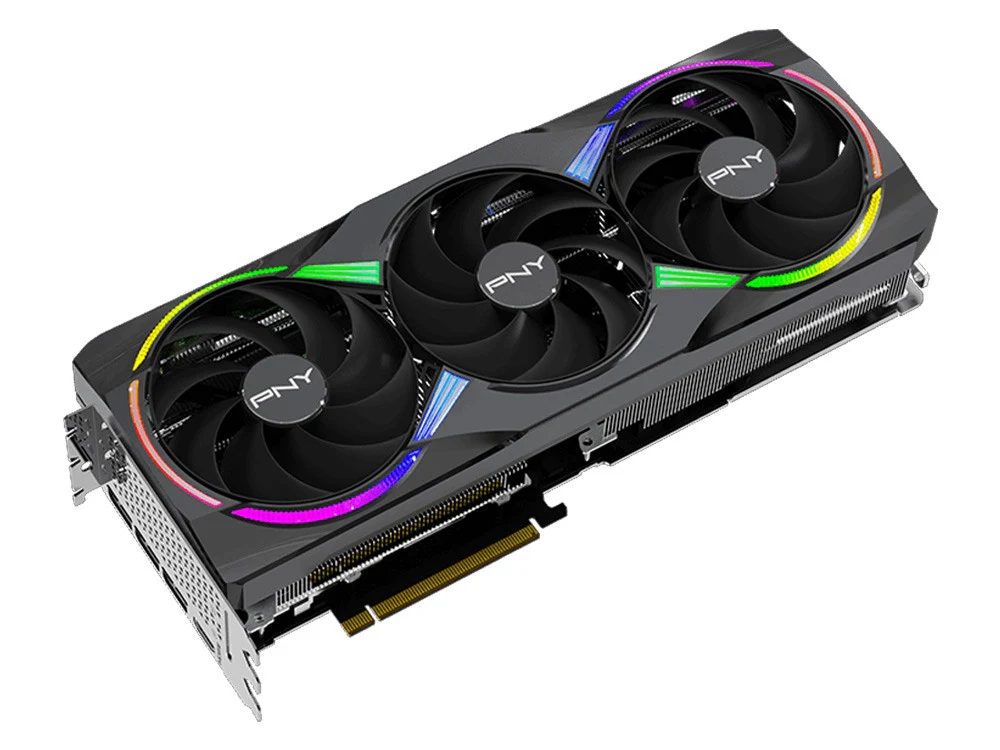

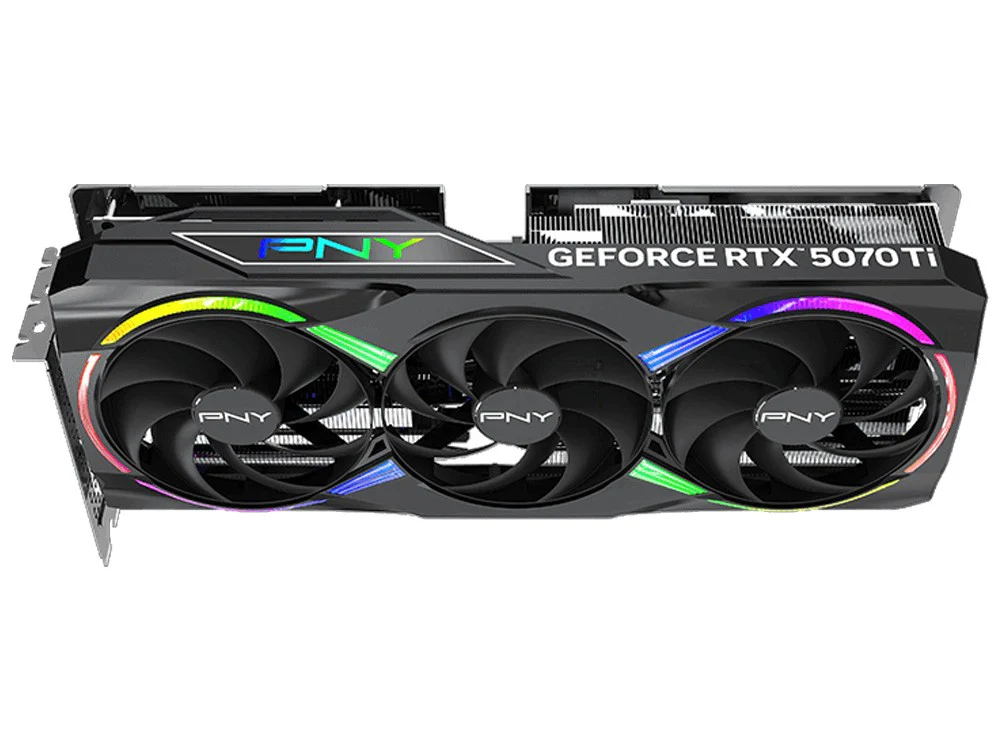

PNY GeForce RTX 5070 Ti ARGB Triple Fan OC 16G

CUDA Cores

8,960

Clock Speed

2295 GHz

Boost Speed

2640 GHz

Memory Speed (Gbps)

28

Memory Size

16GB GDDR7

Memory Interface

256-bit

Memory Bandwidth (GB/sec)

Up to 896

TDP

300 W

NVLink

Not Supported

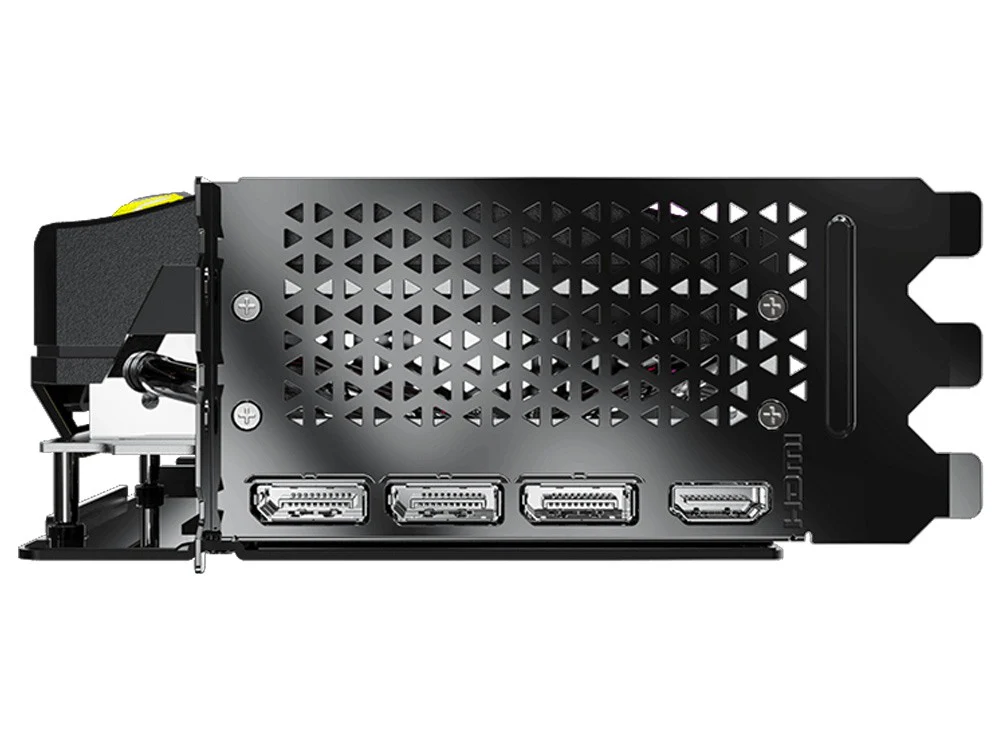

Outputs

DisplayPort 2.1b (x3), HDMI 2.1b

Multi-Screen

4

Resolution

4K at 480Hz or 8K at 165Hz with DSC*

* Up to 4K 12-bit HDR at 480Hz with DP 2.1b + DSC or HDMI 2.1b +DSC. Up to 8K 12-bit HDR at 165Hz with DP 2.1b + DSC. Up to 8K 12-bit HDR at 120Hz With HDMI 2.1b + DSC. With dual DP 2.1b + DSC, up to 8K HDR at 100Hz

Power Input

16-pin (One 16-pin to Three 8-pin)

Bus Type

PCI-Express 5.0 x16

Card Dimensions

12.93" x 5.42" x 2.35"; 3 Slot

Box Dimensions

15.94" x 7.83" x 4.06"

System Requirements

PCI Express-compliant motherboard with one 3-width x16 graphics slot

Three 8-pin supplementary power connectors

750 W or greater system power supply*

Microsoft Windows 11 64-bit, Windows 10 (November 2018 or later) 64-bit, Linux 64-bit

Internet connection*

*Minimum is based on a PC configured with a Ryzen 9 5900X processor. Power requirements can be different depending on system configuration.

*Graphics Card driver is not included in the box; GeForce Experience will download the latest GeForce driver from the Internet after install.

Package Contents

PNY GeForce RTX 5070 Ti ARGB OC Triple Fan Plus

1 x Auxiliary Power Cable

1x GPU Support Kit
