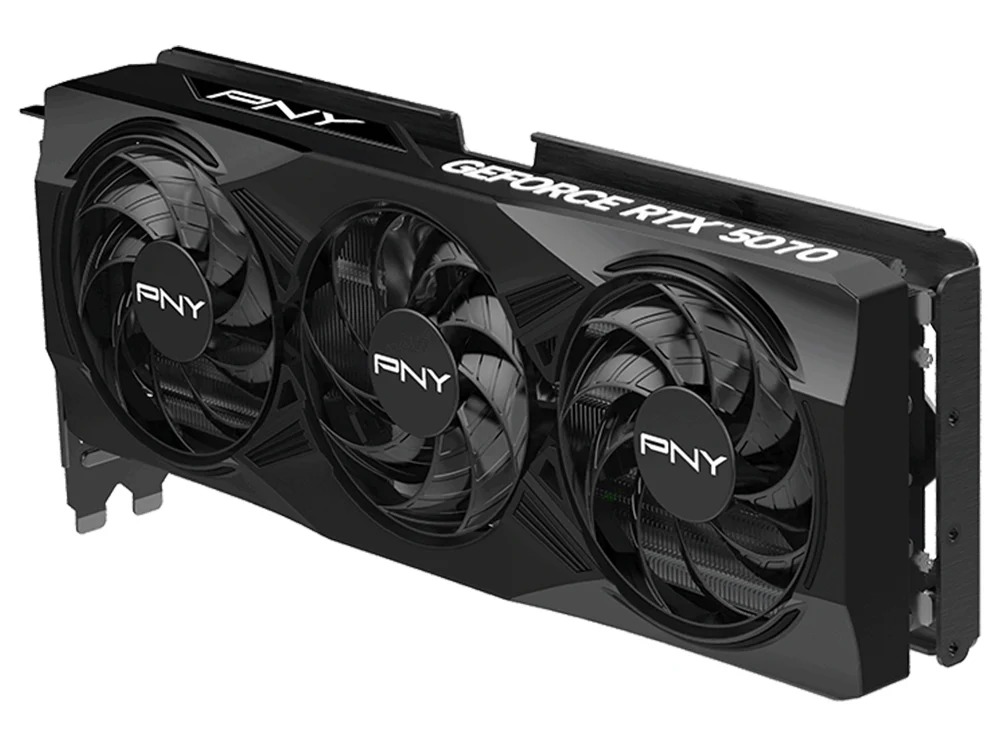

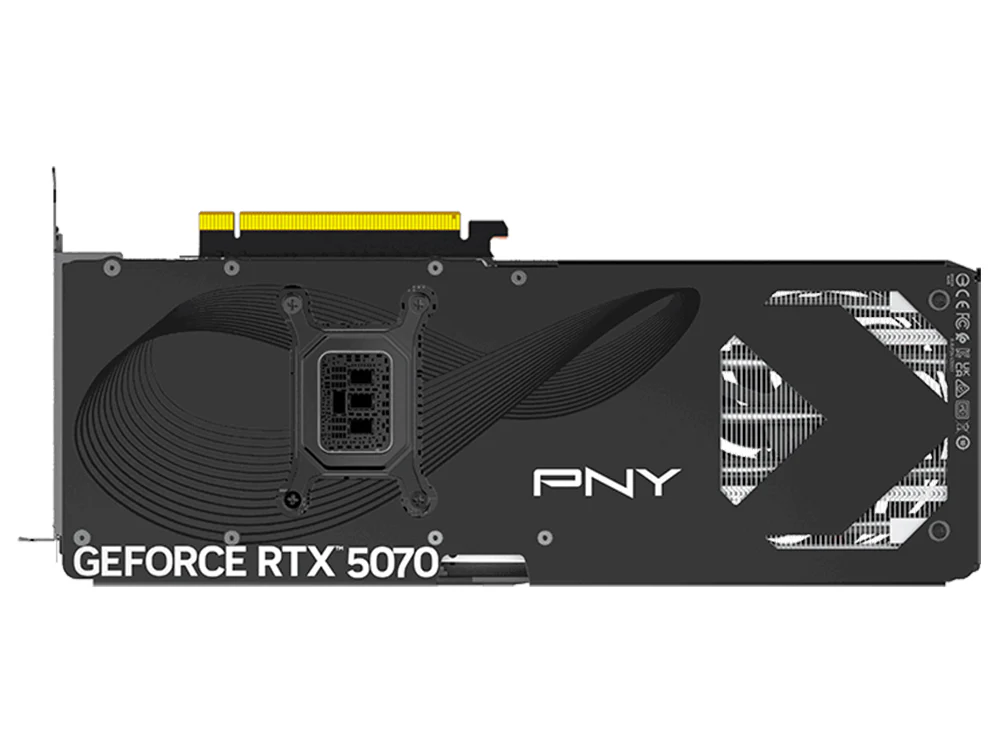

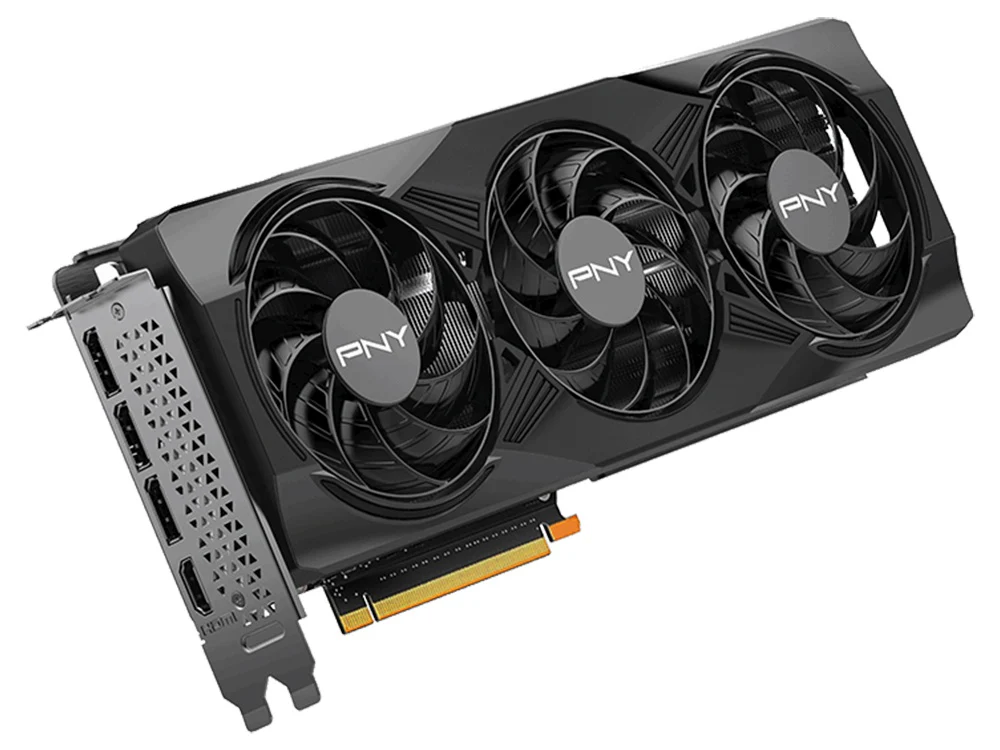

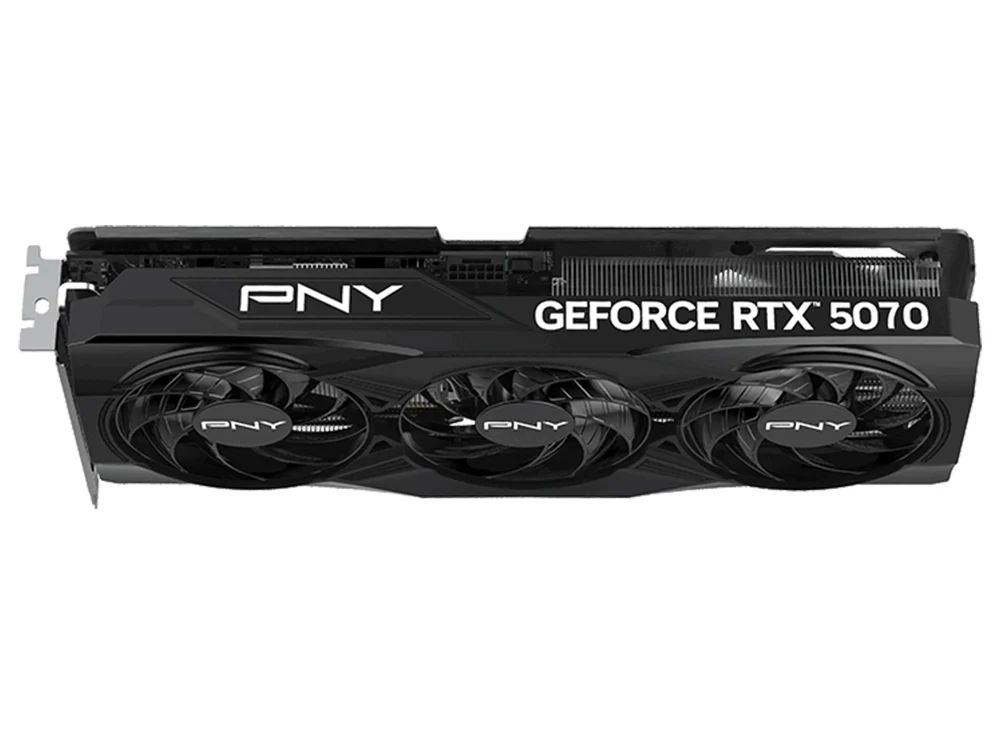

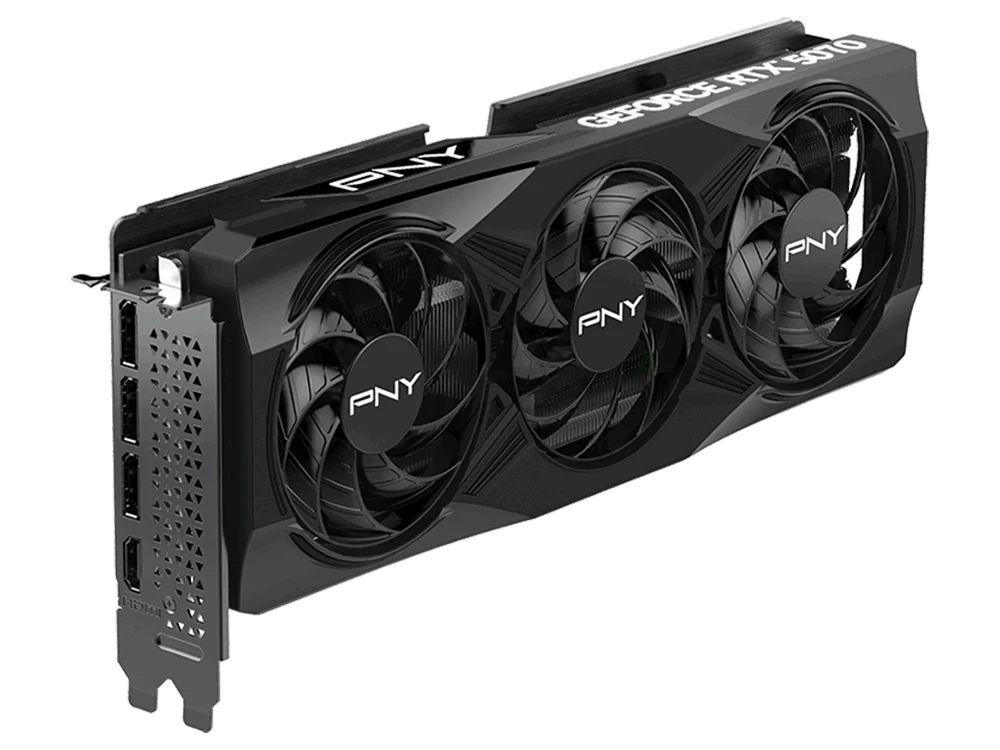

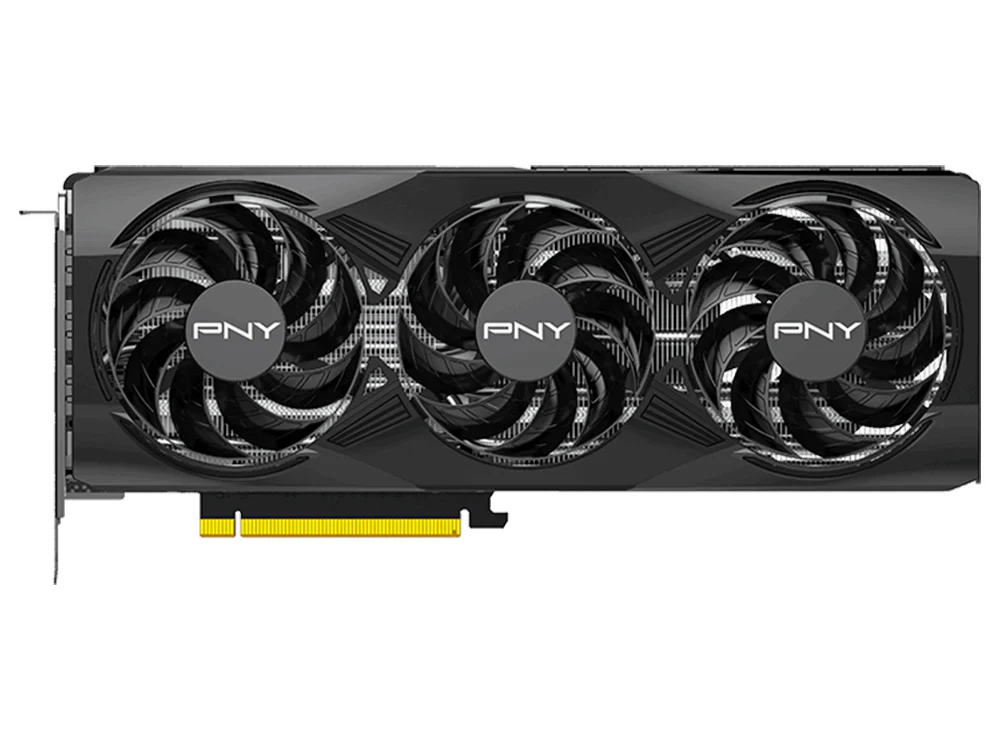

PNY GeForce RTX 5070 Triple Fan OC 12G Graphics Card (VCG507012TFXPB1-O)

CUDA ® Cores

6,144

Base Clock Speed

2.16 GHz

Memory Speed (Gbps)

28

Memory Size

12GB GDDR7

Memory Interface

192-bit

Memory Bandwidth (GB/sec)

Up to 672

TDP

250 W

NVLink

Not Supported

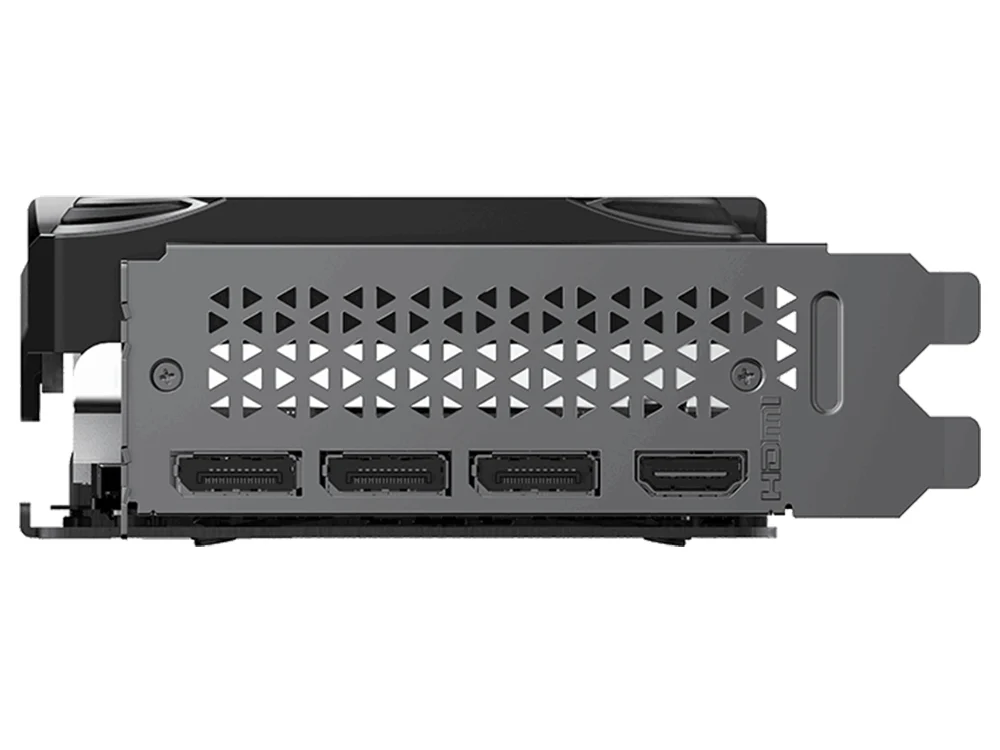

Outputs

DisplayPort 2.1b (x3), HDMI ® 2.1b

Multi-Screen

4

Resolution

4K at 480Hz or 8K at 165Hz with DSC*

* Up to 4K 12-bit HDR at 480Hz with DP 2.1b + DSC or HDMI ® 2.1b +DSC. Up to 8K 12-bit HDR at 165Hz with DP 2.1b + DSC. Up to 8K 12-bit HDR at 120Hz with HDMI ® 2.1b + DSC. With dual DP 2.1b + DSC, up to 8K HDR at 100Hz

Power Input

One 16-pin (One 16-pin to Two 8-pin)

Bus Type

PCI-Express 5.0 x16

Card Dimensions

11.80" x 4.73" x1.9"; 2.4 Slot

System Requirements

PCI Express-compliant motherboard with one 2.4-width x16 graphics slot

Two 8-pin supplementary power connectors

Total graphics power 250 W

Required system power 650 W*

Microsoft Windows ® €¯11 64-bit, Windows 10 (November 2018 or later) 64-bit, Linux 64-bit

Internet connection*

* Graphics Card driver is not included in the box; NVIDIA App will download the latest GeForce driver from the Internet after install.

* Power requirements can be different depending on system configuration.

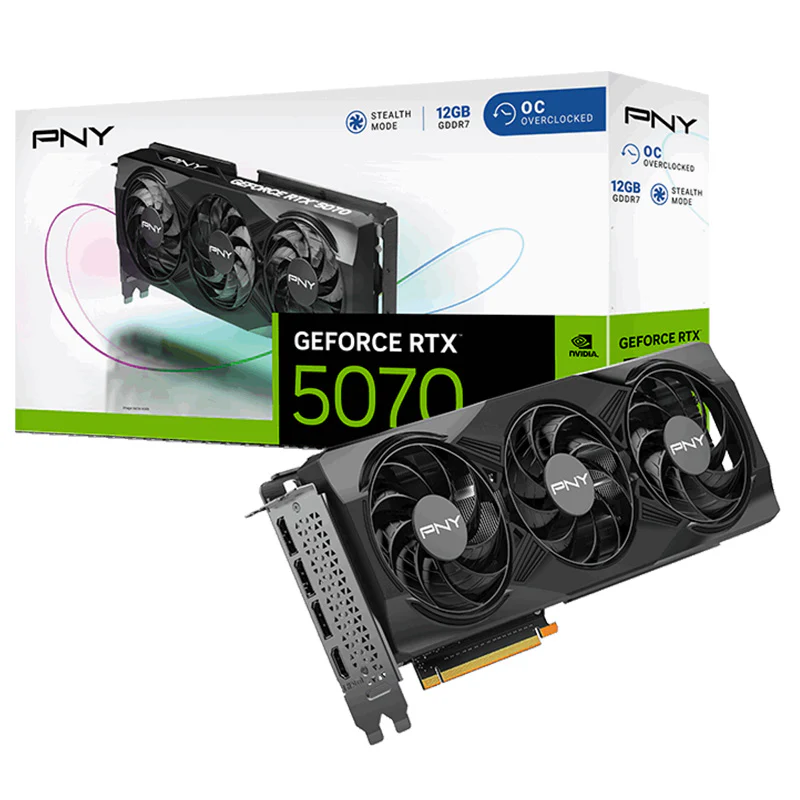

Package Contents

PNY GeForce RTX „¢ 5070 OC

1x Auxiliary Power Cable
