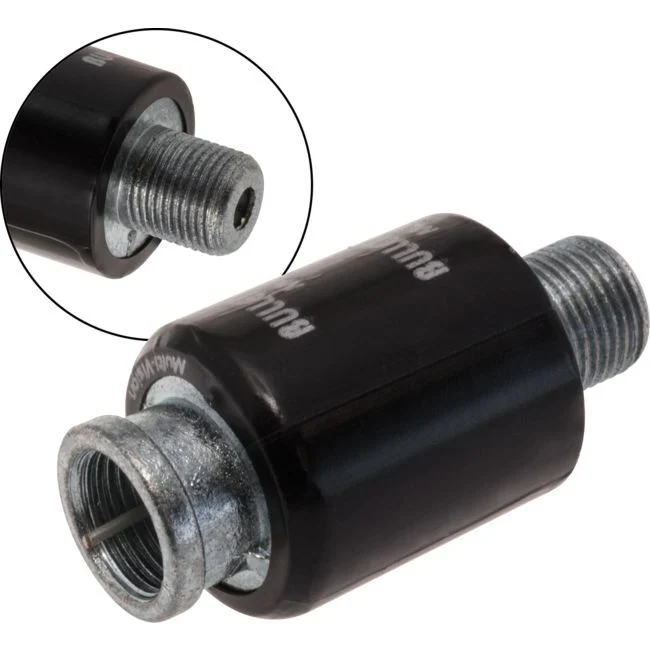

PRO2 Coaxial Surge Protector
The SPF RF / Coaxial protector features robust gas tube technology and provides surge protection for radio frequency and coax cables.
Specifications:
• Gas tube: 90V type
• Insertion loss: 0.5dB Max. (50~470 MHz)
• 0dB Max. (470~900 MHz)
• Return loss: 16dB typical
• Normal resistance across coax: 10000 MO
• Surge protection attacks time: 10-7 seconds
• Maximum surge current: 5000A per 8/20 µS
More Images
PRO2 Coaxial Surge Protector
The SPF RF / Coaxial protector features robust gas tube technology and provides surge protection for radio frequency and coax cables.
Specifications:
• Gas tube: 90V type
• Insertion loss: 0.5dB Max. (50~470 MHz)
• 0dB Max. (470~900 MHz)
• Return loss: 16dB typical
• Normal resistance across coax: 10000 MO
• Surge protection attacks time: 10-7 seconds
• Maximum surge current: 5000A per 8/20 µS
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The SPF RF / Coaxial protector features robust gas tube technology and provides surge protection for radio frequency and coax cables.
Specifications:
• Gas tube: 90V type
• Insertion loss: 0.5dB Max. (50~470 MHz)
• 0dB Max. (470~900 MHz)
• Return loss: 16dB typical
• Normal resistance across coax: 10000 MO
• Surge protection attacks time: 10-7 seconds
• Maximum surge current: 5000A per 8/20 µS
