Reolink 12MP PoE Security System CCTV 16-Channel NVR with 2 POE Video Doorbell
This is a 12MP 16-channel PoE security camera system with NVR and doorbell, delivering ultra-clear video, smart motion detection, and 24/7 continuous recording.
Find Beauty in the Details with 12MP
Enjoy the breathtaking details and hues with a 12MP ultra-high resolution and F1.6 large aperture lens. Even the tiniest subjects, such as raindrops and rose petals, look extraordinary.
Precise Detection, Premium ProtectionFeaturing person/vehicle detecting technology, RLK16-1200D8-A will let you know whether a person or a vehicle is on your property and send you accurate alerts. Also, it can help you keep an eye on your pets. You don’t have to waste time checking all alarms to find the important ones.
Night Vision with Ultra Clarity & ColorEach camera of this surveillance kit is equipped with a powerful spotlight that keeps on at night, making night scenes as vivid as day. You can see more details in full color without worrying about poor lighting.
Complete Protection, All in ControlEasily build your own security center with this camera system. Whether it's your indoors, yard, garage, or store, rest assured that nothing escapes your watchful eyes. Additionally, you can take full control easily through centralized NVR management.
- 16-Port PoE NVR, Supports up to 24 Reolink cameras in total. PoE and plug-in Wi-Fi cameras combined should not exceed 16.

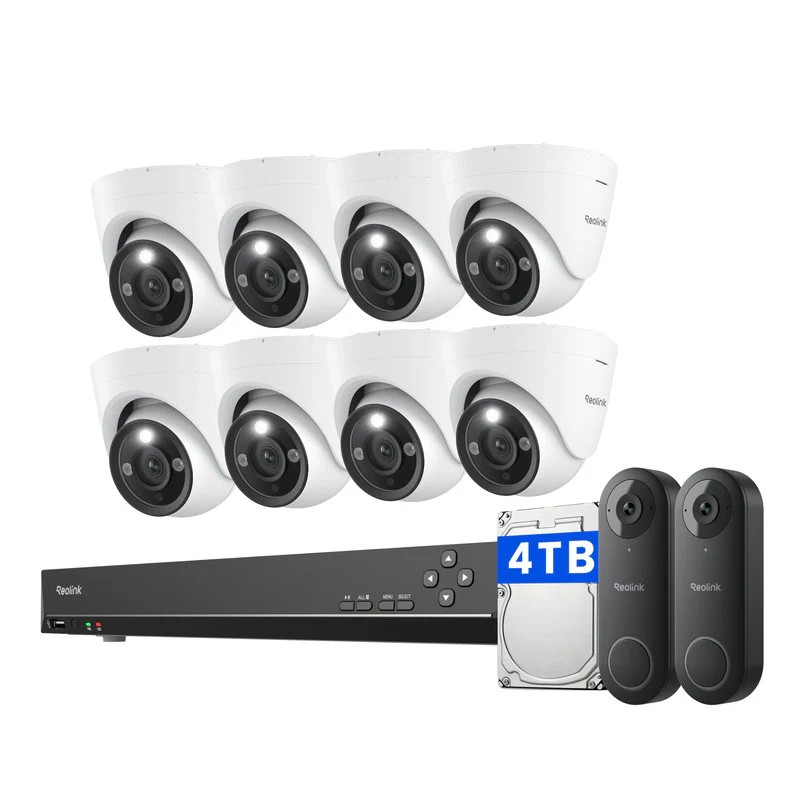

- 8x12MP cameras, 2x5MP POE doorbell, High-Resolution PoE Cameras Included.
- Expandable up to 16TB, Local Storage Capacity
With a 4TB HDD and up to 16TB storage capacity, the PoE system can save days of your 24/7 footage from 8 cameras locally. It stands guard even offline to capture every moment without missing a beat.

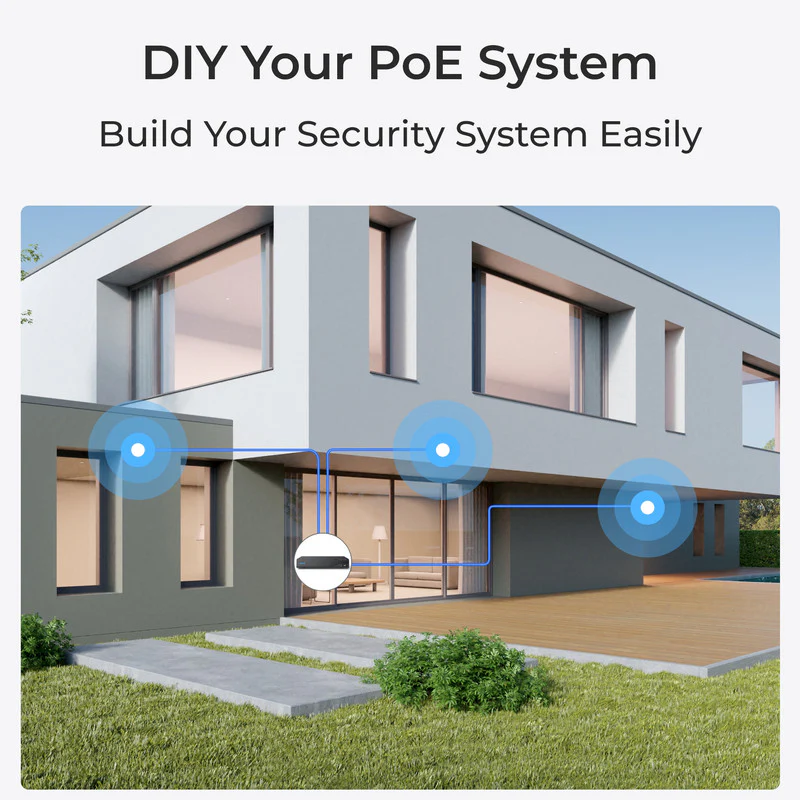

Hassle-Free Setup: Plug and Play PoEExperience the convenience of plug-and-play installation with our PoE (Power over Ethernet) system. No need for separate power cables for each camera.
Connect the NVR to your router and a monitor/TV, then to a power outlet and turn it on.

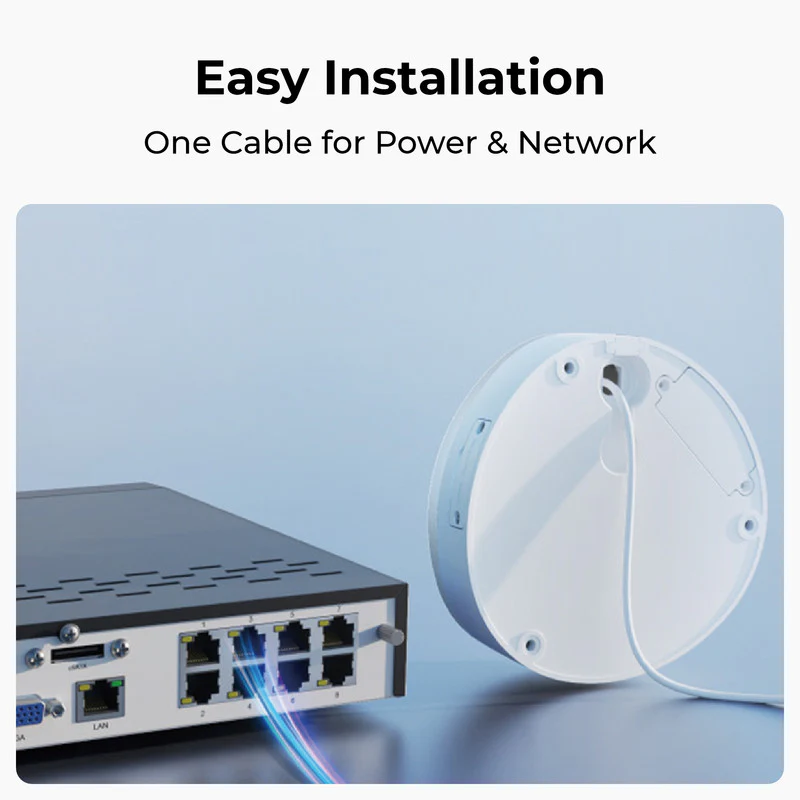

Use an Ethernet cable to connect each PoE camera directly to the NVR.
When you power on the NVR for the first time, follow the instructions to complete the basic configuration.
Empower Your System with Flexible ExpansionBuild the system that fits your space. This NVR supports up to 24 Reolink cameras, including a mix of PoE and plug-in Wi-Fi models (up to 16 total). It’s also compatible with select battery-powered Wi-Fi cameras. From high-resolution PoE setups to flexible wireless options, Reolink gives you the freedom to scale your security your way.

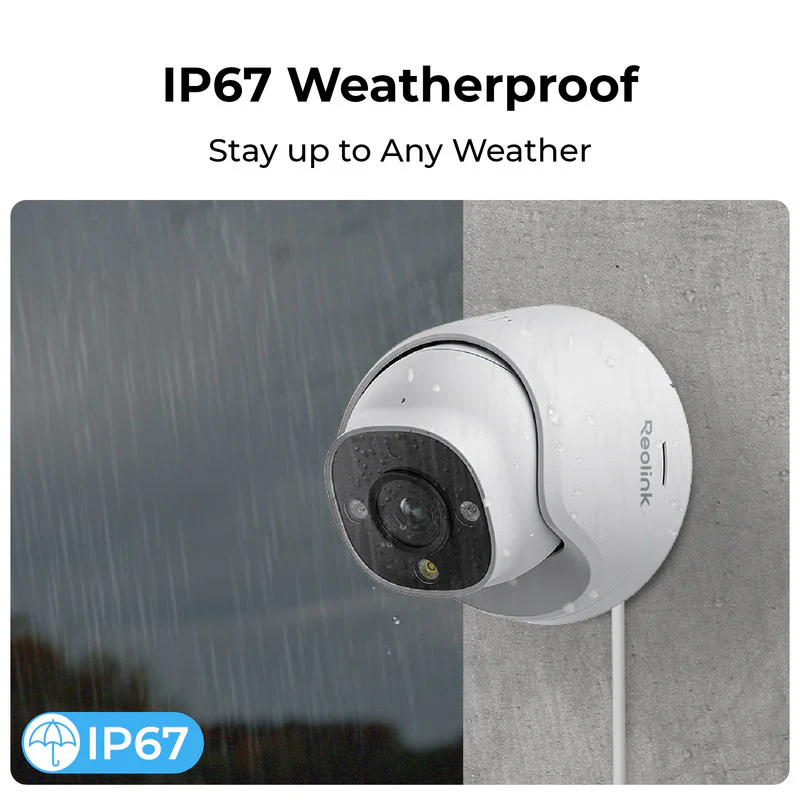

Stay Strong, Rain or ShineArmed with rugged housing, these durable cameras can stand up to thunderstorms, extreme cold/heat, or any other harsh weather. You can rely on it for year-round security.
Easy ManagementYou can get remote access to your cameras and control them via free Reolink APP and Client, besides NVR. Just a touch away, manage your home, store or factory easily.

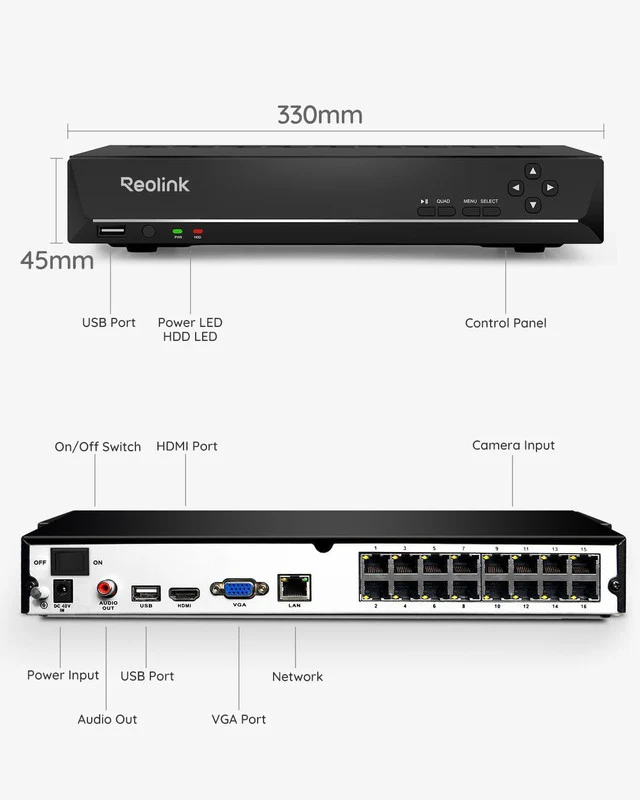

Specifications: RLN16-410
- IP Video Input: PoE IP camera x 16
- Audio Input: Cameras with built-in mic
- Video Output: VGA, HDMI
- Audio output: 1-channel, RCA
- Video Format: H.265, H.264
- Synchronous Playback: Up to 4 channels
- SATA: 2 x SATA interface (1 x 4TB HDD included)
- Capacity: Up to 12TB (max. 6TB capacity for each HDD)
- External HDD: No
- Browser Supported: Firefox, Chrome, Edge, Safari
- OS Supported: PC: Windows, Mac OS; smartphone: iOS, Android
- Power Supply: DC 48V~54V
- Working Temperature: - 10°C~+45°C (14°F~ 113°F)
- Dimensions: 330 x 45 x 285mm
- Weight: 2.4kg
Specifications-Video Doorbell POE Black
- Image Sensor: 1/2.7" CMOS Sensor
- Video Resolution: Default: 2560X1920 (5 megapixels) @20FPS
- Lens: f=2.26mm F=2.0, with IR cut
- Video Format: H.264
- Field of View: Horizontal: 134°, Vertical: 97°, Diagonal: 180°
- Pre-Motion Recording: Support
- Audio: Two-way audio, noise reduction, echo suppression
- Quick Replies: Support
- PoE: IEEE 802.3af, 48V Active
- Hardwired: 12-24VAC 50/60Hz, 24VDC
- Storage: Micro SD card slot (Max. 256GB), works with Reolink NVR
- Browsers Supported: Edge, Chrome, Firefox, Safari
- OS Supported: PC: Windows, Mac OS; Smartphone: iOS, Android
- Smart Alarm: Motion detection/person detection; visit notification
- Recording Modes: Motion recording (default); 24/7 recording; scheduled recording
- Work with: Google Assistant
- Operating temperature: -10°C~+50°C (14°F~122°F)
- Waterproof: Support
- Dimension: 133mm(H) x 48mm(W) x 23mm(T)
- Weight: 96g
Specifications-Camera
- Image Sensor: 1/2.49" CMOS Sensor
- Video Resolution: Default: 4512X2512 (12 Megapixels) at 20 frames/sec
- Lens: f=4.0mm; F=1.6, with IR‐cut filter
- Video Format: H.265
- Field of View: Horizontal: 93°, Vertical: 49°
- Infrared Night Vision: 30 meters (100ft) (LED: 2pcs/28mil/850nm)
- Color Night Vision: Spotlight: 1pcs/4.3W/6500K/700 Lumens
- Audio: Two‐way audio
- POE: IEEE 802.3af, 48V Active
- DC Power: DC 12.0V-1A, <12W
- Storage: Micro SD card slot (Max. 256GB)
- Browsers Supported: Edge, Chrome, Firefox, Safari
- OS Supported: PC: Windows, Mac OS; Smartphone: iOS, Android
- Smart Alarm: Motion detection/person detection/vehicle detection/pet detection
- Record Mode: Motion‐triggered recording (default); scheduled recording
- Work with: Google Assistant
- Operating temperature: ‐10°C~+55°C (14°F~131°F)
- Waterproof: IP66
- Dimension: Φ117.4*103.8mm
- Weight: 515g
Original: $1,570.47
-70%$1,570.47
$471.14More Images
