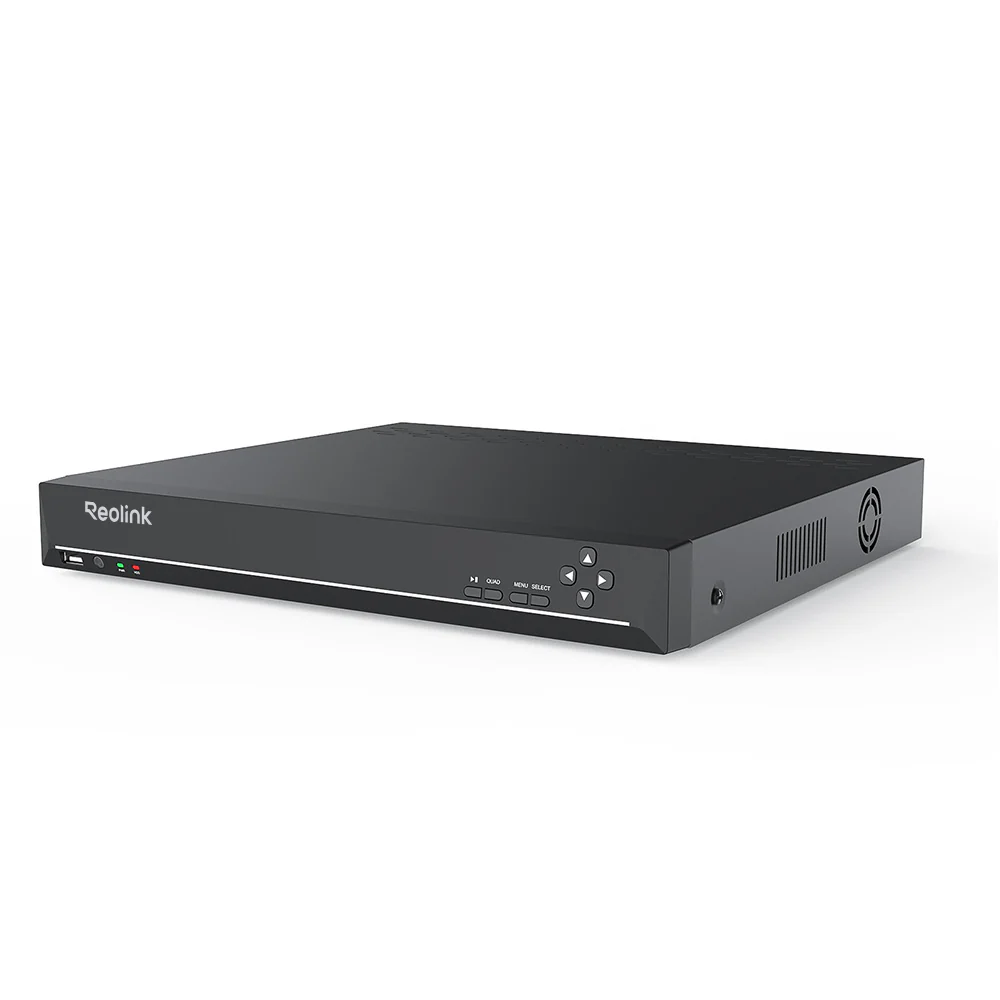

Reolink 36-Channel NVR Up to 48TB Storage Capacity
Overview
Reolink NVR for big home & small business surveillance, supporting up to 16MP resolution, 48TB storage capacity, alarm in & out
Your Security Center
Seamlessly integrating and managing all connected cameras, the NVR provides unified surveillance that adapts to various environments, whether at the office, or at home. You can easily oversee your entire property from a single interface and enjoy continuous, all-around protection hassle-free.

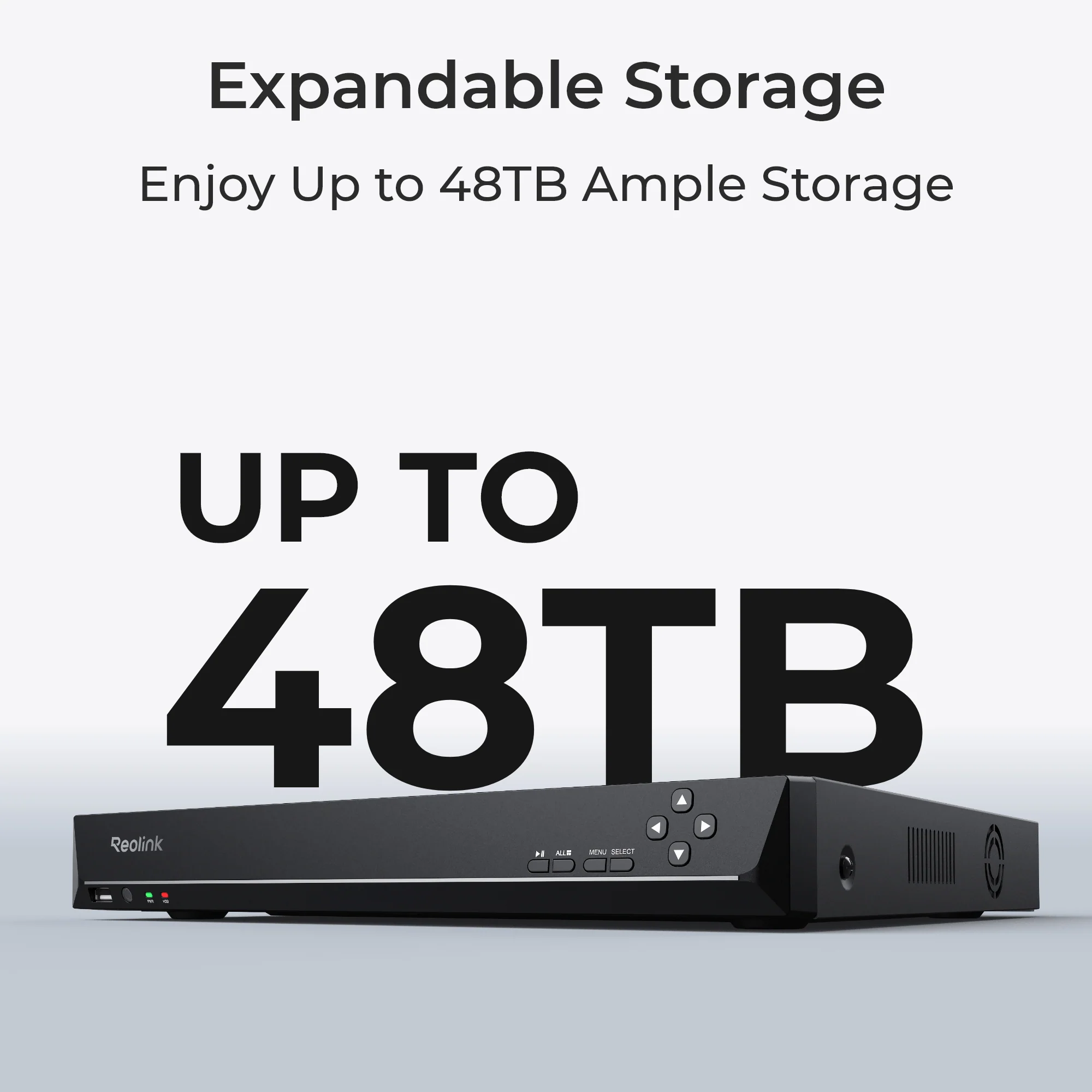

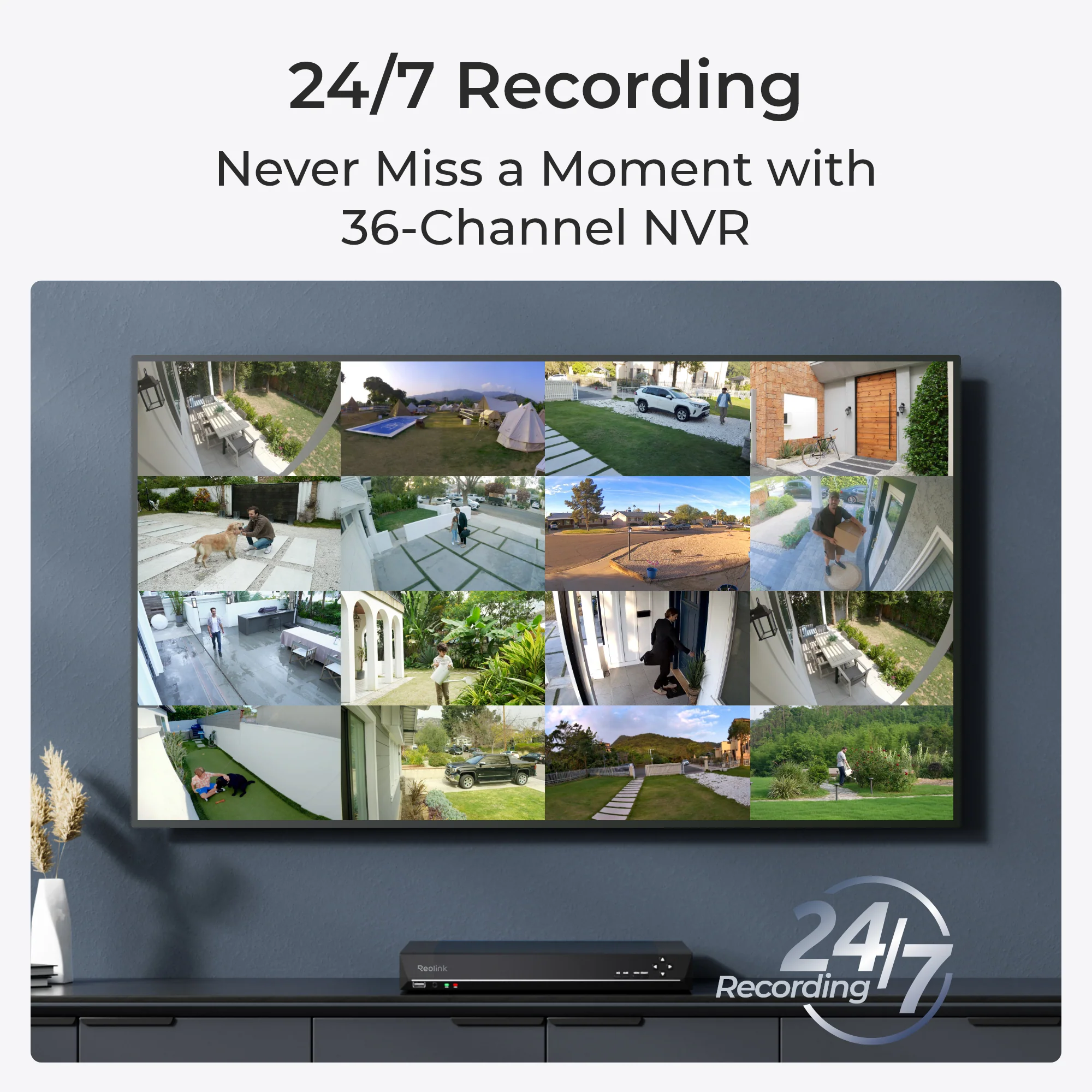

Always Recording, Always Ready
Enjoy ample local storage for 24/7 continuous recording, keeping your data safe and accessible anytime.
Audio Alerts for Quick Action
Audio In/Out:
Ready to Listen and Talk
The built-in audio ports make it possible to have a two-way talk via NVR. You can promptly respond to suspicious visitors or live communicate with the on-site persons.
Alarm In/Out:
Enrich Your Surveillance System
8 alarm-in channels for linking extra wired sensors (temperature, IR, magnetic sensors, etc.) to detect separate events; 4 alarm-out channels for commanding controllers (door, light, siren switches, etc.) to execute actions.
Redefine Clarity with 16MP Resolution
The NVR supports up to 16MP high-definition footage from connected cameras, delivering crystal-clear surveillance day and night, in vibrant color or sharp black and white. Stay informed with every detail in sharp focus.

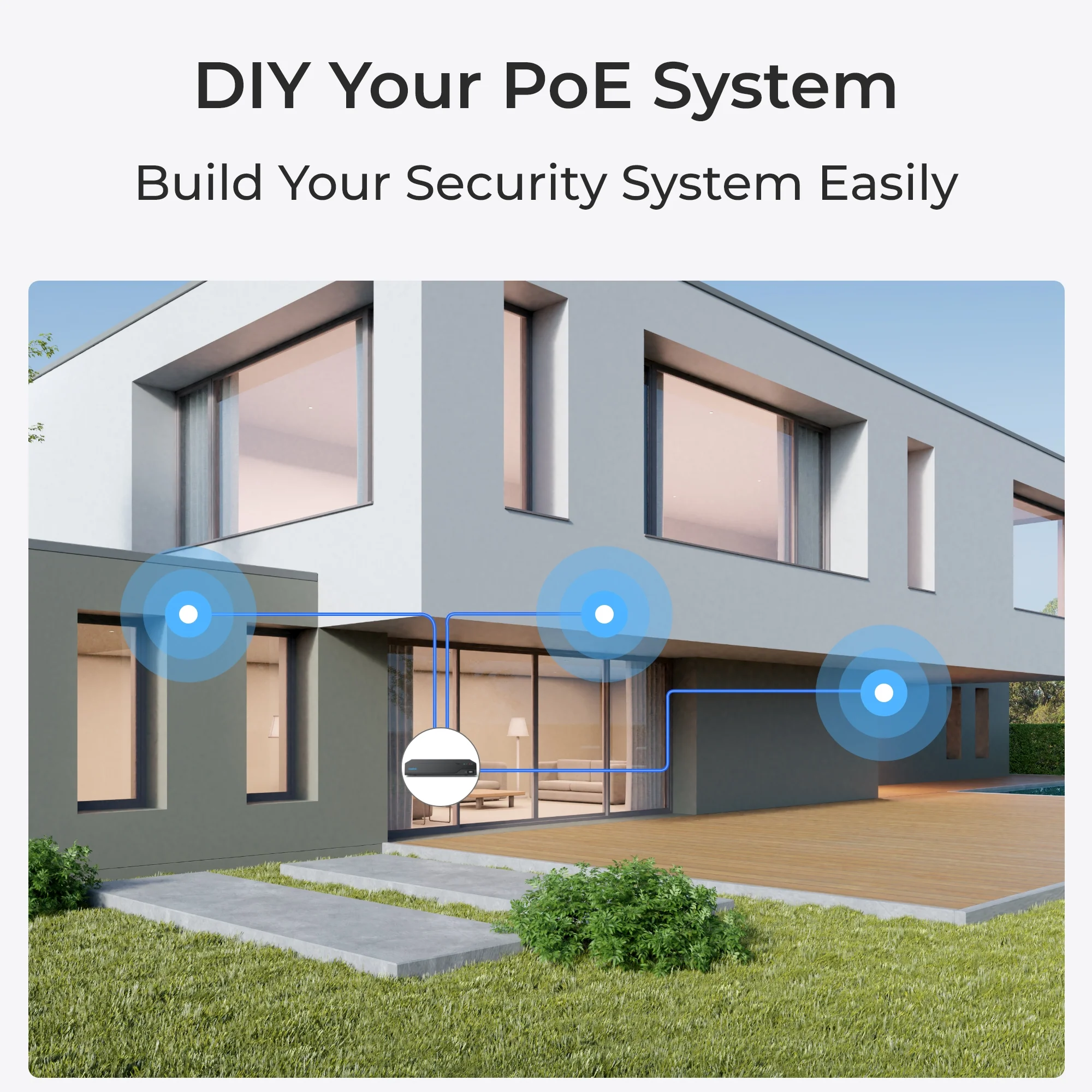

Universal Compatibility in the Reolink Ecosystem
The NVR offers outstanding expandability and is compatible with various Reolink cameras — be it PoE, plug-in Wi-Fi or battery-powered Wi-Fi models. Customize your surveillance system according to your needs by connecting up to 36 devices to the NVR.
Note: To connect with battery Wi-Fi cameras, make sure the NVR hardware version is N5MB01, the cameras are current models on sale, and your Reolink app is updated to the latest version.
Quick Setup, Plug & Play
Step 1
Set up the NVR
Connect the NVR to your router and to a monitor. Connect it to a power outlet and turn on power switch.
Step 2
Set up the Camera
Connect the PoE switch to any network port (not PoE port) on the NVR, and connect your camera to the PoE switch. You can also directly connect the cameras to the NVR via Wi-Fi without wiring.
Step 3
View the Live Feeds
Scan the QR code on the NVR using the Reolink App to initialize the NVR and see the live view.
View Live Anytime, Locally or Remotely
This NVR supports local and remote access to your cameras. By connecting it to a monitor or TV, you can view the live streaming even without network. You can also add the NVR to your Reolink App or Client to enjoy live viewing anytime, from anywhere.
Specifications:
- Hardware: N5MB01
- Video Out:1 HDMI, 1 VGA
- Audio Ports:1 audio-in channel, RCA; 1 audio-out channel, RCA
- USB Ports:Front panel: 1 x USB 2.0; back panel: 1 x USB 2.0, 1x USB 3.0
- Ethernet Ports:• 4 x RJ-45, 10/100/1000 Mbps self-adaptive (for IP cameras)
• 1 x RJ-45, 10/100/1000 Mbps self-adaptive (for LAN/WAN)
• No PoE Port - Alarm:In: 8 channels; Out: 4 channels
- IP Camera Input:Supports up to 36 channels of IPC access; each channel up to 16MP input
- Video Output:• HDMI: 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768
• VGA: 1920x1080, 1280x1024, 1280x720, 1024x768 - Two-Way Audio:Built-in audio in & out ports
- Audio In:Via cameras with mic; via built-in 1 channel
- Audio Out:Via bulit-in 1 channel
- Video Compression:H.265, H.264
- Live View / Playback Resolution:7680x2160, 4608x1728, 4512x2512, 4096x3072, 3840x2160, 2560x1920, 2560x1440, 2048x1536, 2304x1296, 1080p, 720p; (supports only 1-channel playback if you view it in 8MP or higher resolution.)
- Synchronous Playback:1-4 channels
- Supported Modes:Person/vehicle event recording; motion-triggered recording; 24/7 recording
- Internal HDD:3 SATA ports for 3 HDDs (optional)
- External HDD:No
- Max. Capacity:48TB (max. 16TB HDD for each SATA)
- Network Protocols:HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTMP, SMTP, SSL/TLS, DNS, DDNS, NTP
- Browsers Supported:Edge, Firefox, Chrome, Safari
- OS Supported:PC: Windows, Mac OS; smartphone: iOS, Android
- Max. User Access:20 users (1 admin account & 19 user accounts);up to 12 simultaneous video
- streams (10 substreams & 2 mainstreams)
- Power Supply:DC 12V/5.4A
- Power Consumption:<10W（without HDD）
- Working Environment:Temperature: -10°C to +45°C (14°F~113°F); Humidity: 10% to 90%
- Dimensions:330 x 48 x 310mm
- Weight:2.26kg (without HDD)
