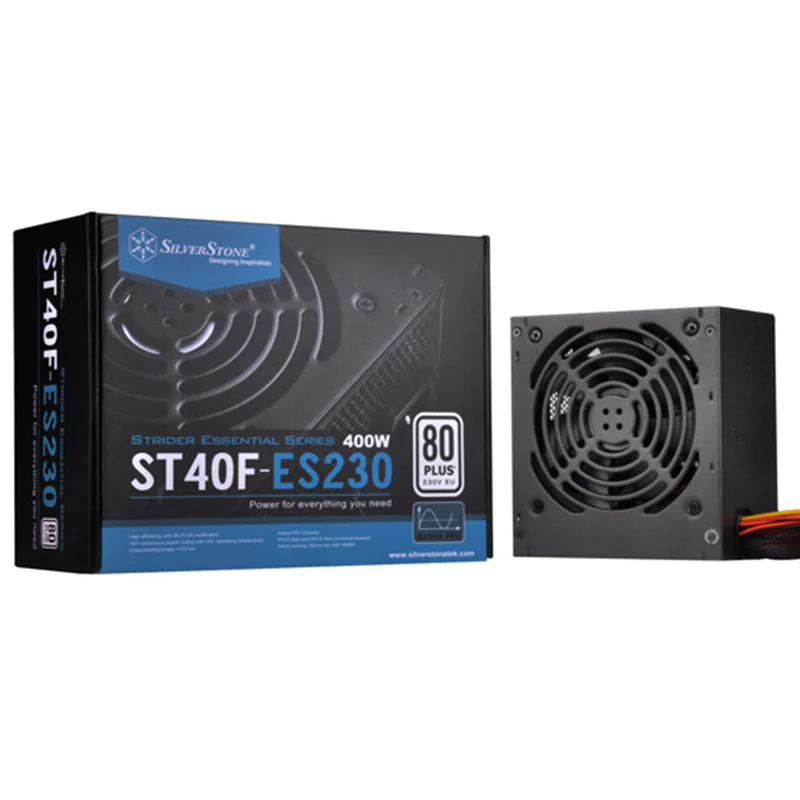

SilverStone 400W Strider Essential 80+ ATX Power Supply (SST-ST40F-ES230)

Max. DC Output

400W

Power density

221W per liter

Load Range

+3.3V+5V+12V+5VSB-12VMax.(Amps)17A16A30A2.5A0.3APeak (Amps)/////Min.(Amps)0A0A0A0A0ARange (%)±5%±5%±5%±5%±10%Line Reg.(%)±1%±1%±1%±1%±1%Ripple(mVp-p)50mV50mV120mV50mV120mV

Load Range

+3.3V +5V +12V +5VSB -12VMax.(Amps) 17A 16A 30A 2.5A 0.3APeak (Amps) / / / / /Min.(Amps) 0A 0A 0A 0A 0ARange (%) ±5% ±5% ±5% ±5% ±10%Line Reg.(%) ±1% ±1% ±1% ±1% ±1%Ripple(mVp-p) 50mV 50mV 120mV 50mV 120mV

Combined +3.3, +5V

100W

Combined +12V

360W

Input Voltage

180V~264V

Input Frequency Range

47Hz~63Hz

PFC

Active PFCˆPF>0.9 at full load‰

Efficiency

82% ~ 85% at 20% ~ 100% loading

MTBF

100,000 hours

Operating temperature

0°C ~ 40°C

Protection

Over Power Protection

Over Voltage Protection

Short Circuit Protection

Connectors

1 x 24 / 20-Pin motherboard connectorˆ500mm‰

1 x 8 / 4-Pin EPS / ATX 12V connectorˆ750mm‰

2 x 8 / 6-Pin PCIE connectorˆ"500mm / 150mm" x 2‰

4 x SATA connectorˆ"500mm / 150mm" x 2‰

2 x 4-Pin Peripheral connectorˆ500mm / 150mm / 150mm / 150mm‰

1 x 4-Pin Peripheral connectorˆ500mm / 150mm / 150mm‰

1 x 4-Pin Floppy connectorˆ500mm / 150mm / 150mm / 150mm‰

Cooling System

Single 120mm silent fan

Noise Level

18 dBA minimum

Dimension

150 mm (W) x 86 mm (H) x 140 mm (D)

Weight

1.26 kg

Form factor

ATX

Certification

80 PLUS

Other

GPU Support list

Compatible with

ATX12V v2.4
