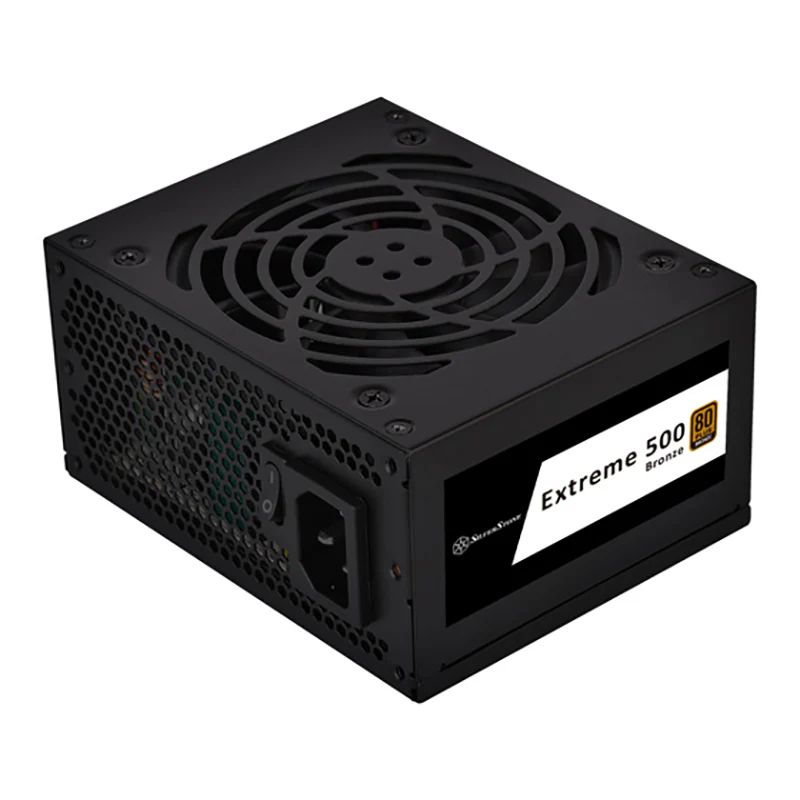

SilverStone 500W Extreme 80+ Bronze SFX Power Supply (SST-EX500-B )

Max. DC Output

500W

Power density

630W per litre

Model (safety certification)

SST-SX0500FCBR-A

Colour

Black (lead-free paint)

Combined +3.3V & +5V

120W

Combined +12V

499.2W

Input Voltage

90 ~ 264 Vrms

Input Frequency Range

47Hz ~ 63Hz

PFC

Active PFC（PF>0.9 at Full Load）

Efficiency

82% ~ 85% at 20% ~ 100% loading

MTBF

100,000 hours

Operating temperature

0°C ~ 40°C

Protection

Over Current Protection
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Over Temperature Protection

Connectors

1 x 24 / 20-Pin motherboard connector
1 x 8-Pin EPS / ATX 12V connector
1 x 8 / 4-Pin EPS / ATX 12V connector
2 x 8 / 6-Pin PCIe connectors
3 x SATA connectors
2 x 4-Pin Peripheral connectors
1 x 4-Pin Floppy connector

Cooling System

Silent 92mm fan

Form factor

SFX

Noise Level

18 dBA minimum

Dimension

125 mm (W) x 63.5 mm (H) x 100 mm (D)
4.92" (W) x 2.5" (H) x 3.94" (D)

Weight

1.02 kg

Certification

80 PLUS Bronze

Other

GPU Support list
Compatible with ATX12V v2.4
