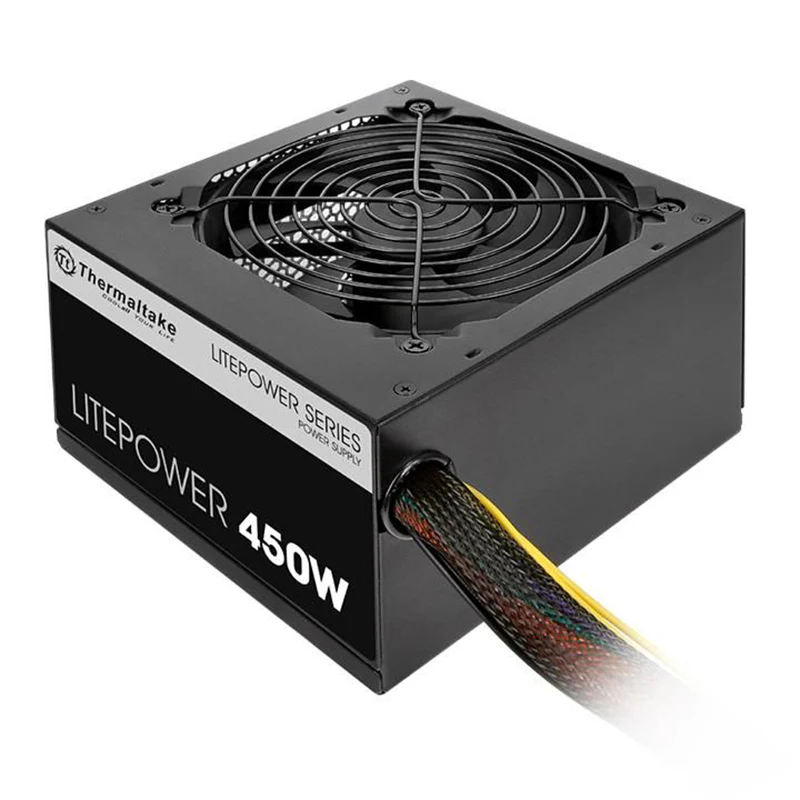

Thermaltake 450W Litepower Gen 2 ATX Power Supply (PS-LTP-0450NPCNAU-2)
Thermaltake Litepower Gen 2 450W Power Supply
SPECIFICATIONS:
|
P/N |
PS-LTP-0450NPCNAU-2 |
|
WATTS |
450W |
|
RGB FAN |
No |
|
FORM FACTOR |
ATX |
|
MODEL |
LTP-450AL2NK |
|
TYPE |
ATX 12V 2.3 |
|
MAX. OUTPUT CAPACITY |
450W |
|
COLOR |
Black |
|
DIMENSION ( W / H / D ) |
150mm x 86mm x 140mm |
|
PFC (POWER FACTOR CORRECTION) |
W/Active PFC |
|
POWER GOOD SIGNAL |
100-500 msec. |
|
HOLD UP TIME |
>16msec |
|
INPUT CURRENT |
5A |
|
INPUT FREQUENCY RANGE |
50Hz - 60Hz |
|
INPUT VOLTAGE |
230V |
|
OPERATING TEMPERATURE |
+5℃ to +35℃ |
|
OPERATING HUMIDITY |
20% to 85%,non-condensing |
|
STORAGE TEMPERATURE |
-40℃ to +55℃ |
|
STORAGE HUMIDITY |
10% to 95%, non-condensing |
|
COOLING SYSTEM |
120mm Fan: 1800±10% RPM |
|
MTBF |
100,000 hrs minimum |
|
SAFETY APPROVAL |
CE, TUV SUD, CB, EAC and RCM certified. |
|
PCI-E 6+2PIN |
6+2pin PCI-E Connector x 2 |
