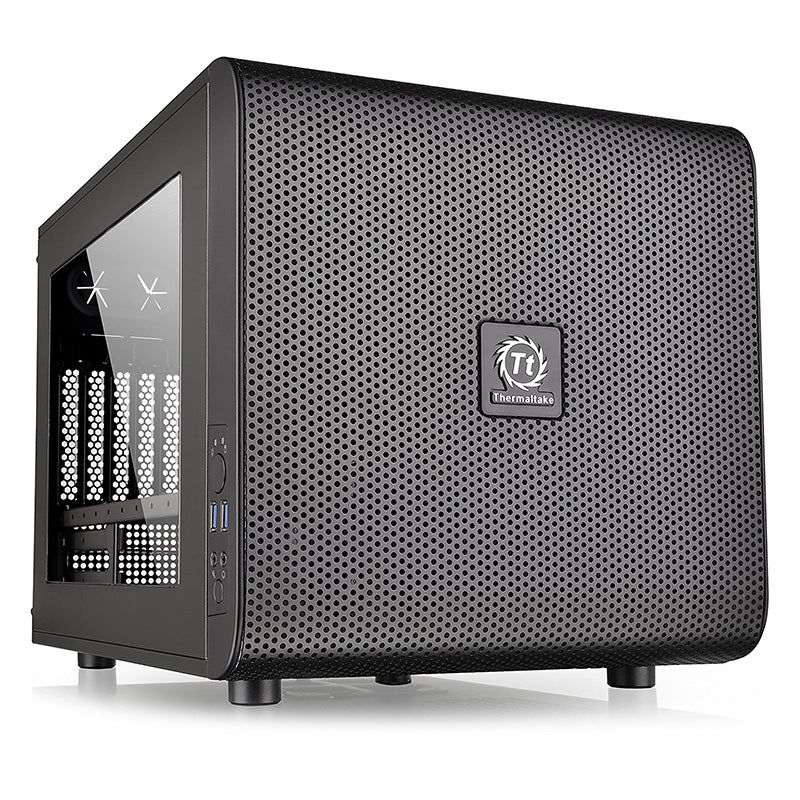

Thermaltake Black Core V21 SFF Chassis USB3 (CA-1D5-00S1WN-00)

Case type

Micro Case

Dimension (H X W X D)

336 x 320 x 424 mm
(13.2 x 12.6 x 16.7 inch)

Net weight

6.5 kg / 14.3 lb

Side panel

Transparent Window

Color

Exterior & Interior : Black

Material

SPCC

Cooling system

Front (intake) :
200 x 200 x 30 mm fan (800rpm, 13dBA)

Drive bays
-Accessible
-Hidden

-Hidden : 3 x 3.5’’ or 2.5” , 3 x 2.5’’

Expansion slots

5

Motherboards

6.7” x 6.7” (Mini ITX) , 9.6” x 9.6” (Micro ATX)

LCS upgradable

Supports 1/2”、3/8”、1/4” water tube<br />

I/O port

USB 3.0 x 2, HD Audio x 1

PSU

Standard PS2 PSU (optional)

Fan support

Front:
1 x 120mm or 2 x 120mm
1 x 140mm or 2 x 140mm
1 x 200mm

Top:
1 x 120mm or 2 x 120mm or 3 x 120mm or 4 x 120mm
1 x 140mm or 2 x 140mm

Rear:
1 x 120mm
1 x 140mm

Bottom:
1 x 120mm or 2 x 120mm

Left / Right Side:
1 x 120mm or 2 x 120mm
1 x 140mm or 2 x 140mm

Radiator support

Front:
1 x 120mm or 1 x 240mm
1 x 140mm

Top:
2 x 120mm or 2 x 240mm
1 x 140mm or 1 x 280mm

Rear:
1 x 120mm

Left / Right Side:
1 x 120mm or 1 x 240mm
1 x 140mm or 1 x 280mm

Clearance

CPU cooler height limitation: 185mm
VGA length limitation: 350mm
PSU length limitation: 200mm (With Bottom Fan)
