Thermaltake MAGCurve 360 Ultra ARGB Sync AIO Liquid Cooler (CL-W453-PL12SW-A)

Interface

Interface: Micro USB to USB (9PIN)

System Compatibility

System Compatibility: Windows 10 / 11

Fan Spec

Fan Speed: PWM 500~2500 R.P.M

Noise Level:

Standard Fan Blade: 32.80 dB-A (one fan)

Reverse Fan Blade: 35.10 dB-A (one fan)

Power Spec

Pump Fan

Rated Voltage: 12V

Rated Current: 0.43A

Power Input: 5.16W

CPU Display

Rated Voltage: 5V

Rated Current: 0.8A

Power Input: 4W

Fan

Rated Voltage: 12V/5V

Rated Current: 0.27A & 0.72A (one fan)

Power Input: 3.24W & 3.6W (one fan)

Display Spec

Display Type: 6.67 € AMOLED

Display Resolution: 2240×1080 (SPR)

Pump Spec

Pump Fan

Motor Speed: PWM 1500~3300 RPM

Tube Spec

Material: Rubber

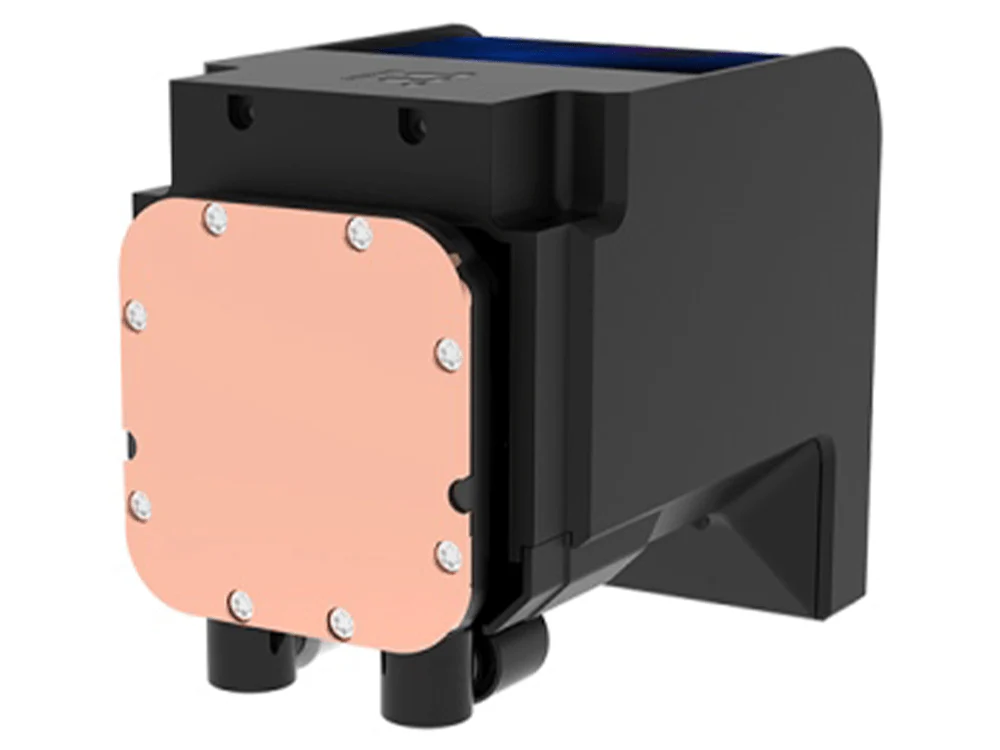

Water Block

Material: Copper

Compatibility

CPU Socket:

Intel LGA 2066/2011-3/2011/1851/1700/1200/1156/1155/1151/1150,

AMD AM5/AM4/AM3+/AM3/AM2+/AM2/FM2/FM1

TDP

365W

Material

WATER BLOCK Material: Copper

Radiator Material: Aluminum

Tube Material: Rubber

Max Air Flow

Air Flow:

Standard Fan Blade: 77.60 CFM (one fan)

Reverse Fan Blade: 75.80 CFM (one fan)

Max Air Pressure

Static Pressure:

Standard Fan Blade: 3.95 mm-H ‚‚O (one fan)

Reverse Fan Blade: 3.64 mm-H ‚‚O (one fan)

Software Interface

System Compatibility: Windows 10 / 11

Capacity

TDP

365W

Maximum Pressure

Static Pressure:

Standard Fan Blade: 3.95 mm-H ‚‚O

Reverse Fan Blade: 3.64 mm-H ‚‚O

Thickness

Radiator

Dimension: 396 × 120 × 27 mm

Parts

Fan, Pump Fan, CPU Display, Radiator, Tube, Water Block

Applicable

CPU Socket Compatibility (Intel / AMD)

Other

Display Support

Interface: Micro USB to USB (9PIN)
