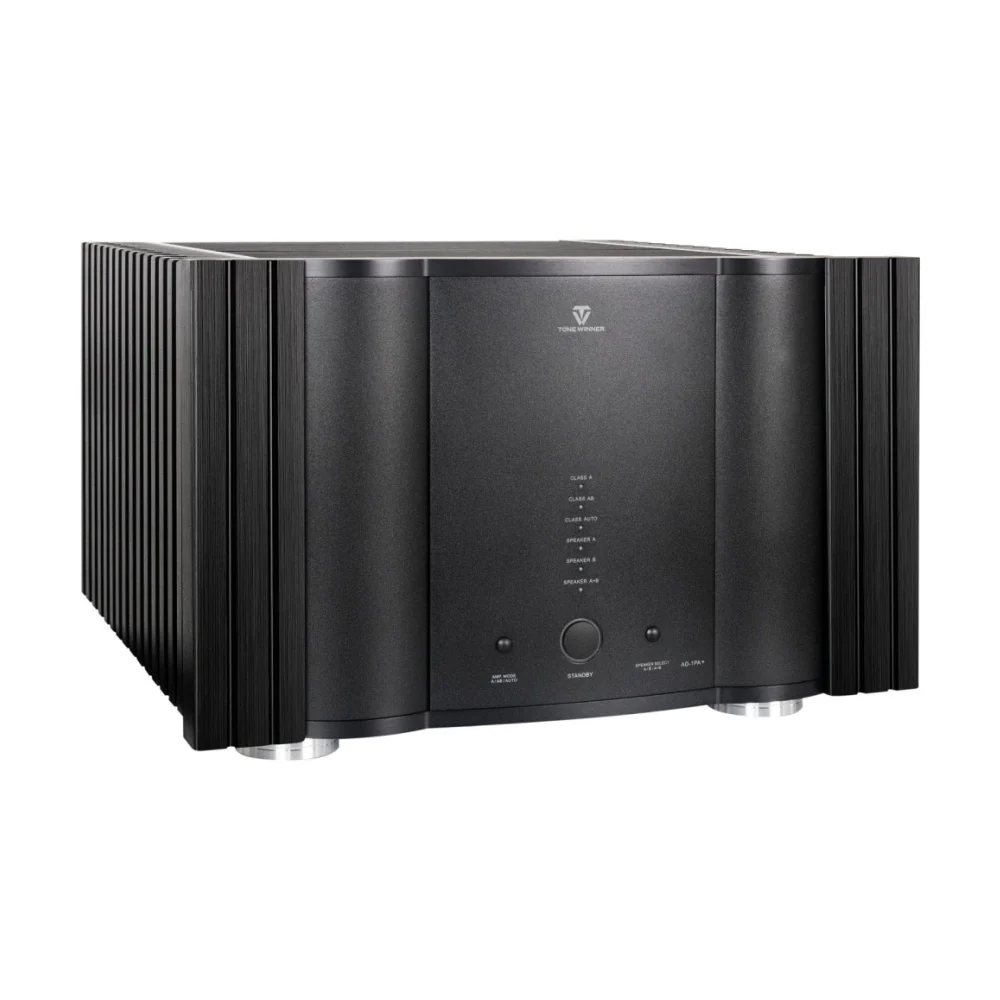

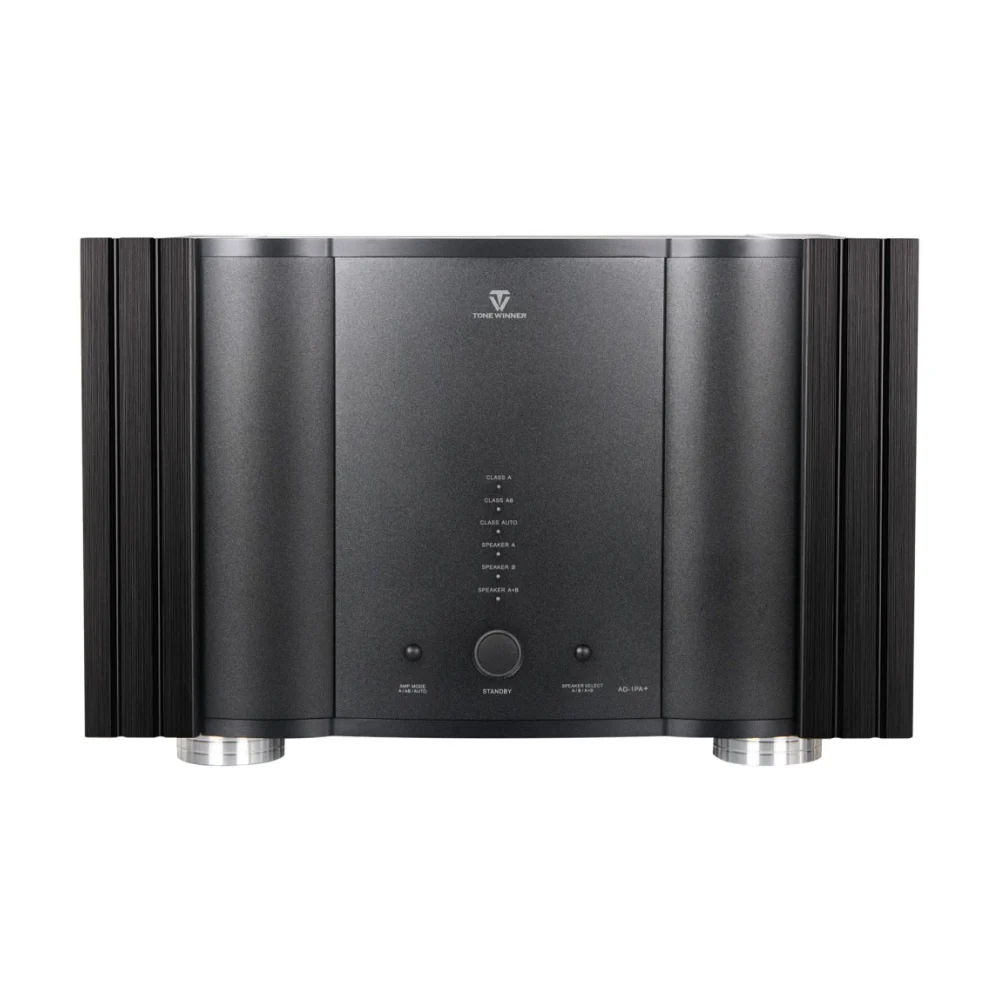

Tonewinner AD-1PA+ Stereo Class A Power Amplifier Black

Tonewinner AD-1PA+ Stereo Class A Power Amplifier Black

Introducing the AD-1PA+, Tonewinner's Class A stereo power amplifier. With optimised circuits, this hi-fi power amp is the successor to the Tonewinner AD-1PA.

The Tonewinner AD-1PA+ benefits from a high-quality construction and balanced architecture, allowing it to provide significant yet controlled power to demanding speakers and ensuring a dynamic, precise sound reproduction. Its careful and intelligent integration results in a powerful and musical device, respecting the audio signal to reveal every nuance in your music.

Key Features:

• 2 x 100W Class A pure power output
• 2 x 300W Class AB power output
• Switch between Class A, Class AB or Auto operating modes
• Dual speaker terminals allow bi-wiring or A/B/A+B configurations
• Balanced XLR and unbalanced RCA inputs
• Improved Signal to Noise Ratio (SNR) >100dB
• Audiophile-grade high-performance toroidal transformer
• Large filter capacitors ensure clean and stable signal
• Short circuit protection, overheating protection, and DC protection
• 24K gold-plated terminals
• Aluminium chassis & shockproof feet

Pure Class A Amplification

With both Class A and Class AB circuits, the AD-1PA+ supplies high-power amplification to any speaker load, made possible by the audiophile-grade toroidal transformer. The Class A circuit adopts a fully balanced, symmetrical, differential input to differential BTL power output.

Ensuring that only the best quality signal is passed through the amplifier, each channel features 24K gold-plated unbalanced (RCA) inputs along with a pair of heavy-duty speaker outputs.

High-Performance Toroidal Transformer

To achieve its impressive power levels in both Class AB and Class A modes, the Tonewinner AD-1PA+ is equipped with a large power supply, including a high-performance toroidal transformer of no less than 1200W. 16 large filter capacitors with a total capacity of 180,000µF ensure a clean and stable electrical signal. In addition, the left and right channels are independently power supplied.

The AD-1PA+ features a low-noise differential amplifier circuit for improved signal-to-noise ratio. The amplifier stage of the AD-1PA+ embeds 8 pairs of high-power transistors TTC5200 and TTA1943. These allow the amplifier to deliver a consequent power of 300W RMS (Class AB operation) per channel under 8Ω.

Powerfully Versatile

The Tonewinner AD-1PA+ has three operating modes: Class A, Class AB or Auto. A switch allows you to select the most suitable mode according to your needs and your installation. The Auto mode automatically switches from Class A to Class AB when the temperature of the unit reaches a certain limit and switches back to Class A once the unit's temperature drops.

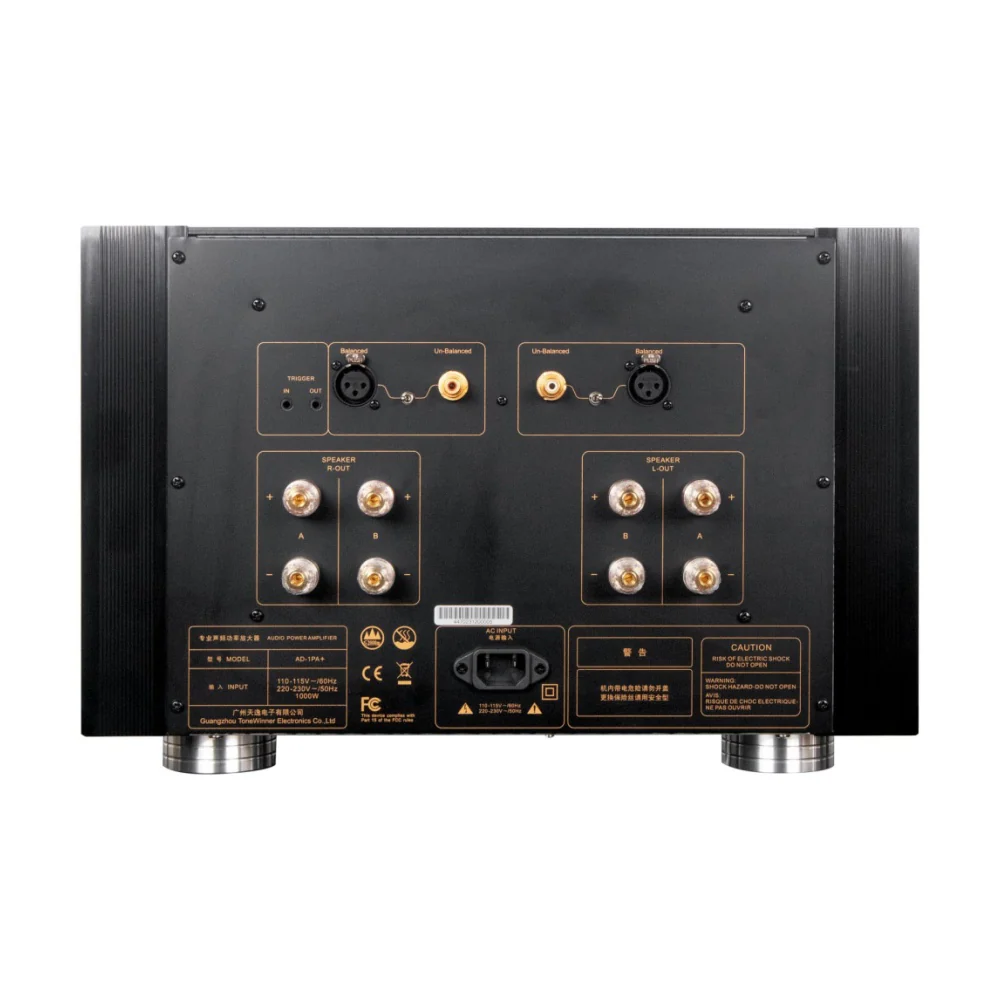

With its dual speaker terminals, the Tonewinner AD-1PA+ offers the possibility of bi-wiring. This method of connecting to speakers can offer an improvement in sound quality by reducing the magnetic interactions of the cables. Alternatively, take advantage of the speaker A/B configurations and connect a second pair of speakers for easy referencing.

Perfect Isolation

The AD-1PA+ has been designed and constructed to physically separate the different sections of the device and thus ensure isolation from unwanted interference and noise. Both left and right channels adopt a independent power supply, which boosts the channel separation to the highest degree.

Built with an aluminium chassis and supported by a rigorous internal layout and shockproof feet, the AD-1PA+ is a resilient and powerful stereo power amplifier that will handle anything you throw at it.

Tonewinner

Tonewinner was one of the first manufacturers in China to obtain official certifications for advanced HDMI technologies such as Dolby Atmos, Dolby Digital, Dolby TrueHD, DTS:X, DTS Master to name just a few!

The unabashedly Chinese brand is showing that premium components don't need to cost an arm and a leg! Tonewinner aims to bring premium high end audio at prices which won't make your wallet wince. These high end audio components are not only designed for a premium audio experience but also for grunt! Packing not only superior audio and the latest technology, but plenty of 'oomph' too!

Featuring Tonewinner's patented power management technology, the AD-1PA+ is Tonewinner's best hi-fi power amp for delivering pure amplification to high-end speakers.

Model
AD-1PRE+

Analogue Inputs
2x Unbalanced RCA Stereo
1x Balanced XLR Stereo
1x Phono MM
1x Phono MC

Digital Inputs
2x Optical
2x Coaxial
1x USB

Outputs
2x Unbalanced RCA Stereo
1x Balanced XLR Stereo

THD
≤0.0035%(1kHz)

Channels
2

DAC
ESS9038

Crosstalk
≥102dB(1kHz)

SNR
≥110dB (A-weighted)

Frequency range
10Hz - 180kHz (+1/-3dB)

Supported Formats
PC: DSD64-DSD512.DOP64, DOP128, DOP256
Coaxial/Optical: PCM44.1-192, DOP64

Crosstalk
≥102dB(1kHz）

Standby consumption
≤1W

Material
Aluminium alloy

Dimensions W x H x D
444 x 120 x 413 mm

Weight
9.7kg

Model
AD-1PA+

Channels
Stereo (2)

Output power (Class A)
100W @ 8Ω

Output power (Class AB)
300W RMS/channel @ 8Ω, 20Hz-20kHz, THD < 0.1%, two driven channels
500W RMS/channel @ 4Ω, 20Hz-20kHz, THD < 0.1%, one driven channel
320W RMS/channel @ 8Ω, THD < 0.1%, one driven channel

Bias selection
Class A
Class AB
Auto

THD
≤0.008% (1kHz, normal working condition)

SNR
≥108dB (A-weighted, balanced input)
≥110dB (A-weighted, unbalanced input)

Frequency
10Hz-100kHz(+1/-3dB)

Impedance
8 ohms

Gain
29.5dB±1dB

Channel separation
≥80dB

Inputs
Single-ended stereo RCA
Balanced stereo XLR

Speaker output modes
A
B
A+B

Trigger
Input and output

Power consumption
Class A 260-300W or Class AB 70W-110W

Standby power consumption
≤ 0.5W

Dimensions W × H × D
444 x 294 x 449 mm

Net weight
42kg

Includes: 1 x Stereo Power Amplifier
