Tonewinner AD-7300PA+ 7 Channel Stereo Power Amplifier Black
Tonewinner AD-7300PA+ 7 Channel Stereo Power Amplifier Black
Introducing the AD-7300PA+, Tonewinner's beast of a 7-channel home theatre & hi-fi power amplifier. Whether you're watching a blockbuster movie or listening to a rocking live concert, this power amplifier will take your audio to new levels.
Featuring exceptional dynamic range and near silent background noise, the AD-7300PA+ ensures you'll hear every detail, from the softest to the loudest.
And trust us, the AD-7300PA+ is packing some serious grunt under the hood!
Key Features:
- High Output: Up to 300W (8ohms), 500W (4ohms) per channel
- Exceptional low noise, THD + Distortion less than <0.09%
- High signal to noise ratio >100dB
- Premium transistors for high power output performance
- 24K gold plated RCA & XLR inputs
- 24K gold plated oversize speaker terminals
- Large VU meter with red needle
- Trigger input & output
- Aluminium chassis
""The Listening""
""Under the hood and this Class AB design uses three pairs of high-power, three-level push-pull Darlington circuit transistors. It also sports seven independent circuit boards, with the left and right channels utilising exposed radiators, larger in size, to power the front speakers.""
7 Channels of Powerful Amplification
The AD-7300PA+ not only features 7 discreet channels of high power amplification, channels FL and FR (front left and front right) use a higher current configuration, similar to Class A spec and use the external heatsink fins of the chassis for better cooling and efficiency.
Please note: Due to the configuration of the XLR inputs on the rear of the AD-7300PA+, it is recommended you use mono XLR cables when connecting to a pre-amp processor, rather than Y-split stereo cables.
Five-Fold Protection
With an intelligent system to protect against damage to the unit the AD-7300PA+ boasts Short Circuit Protection, Overload Protection, Overheating Protection, Over-voltage & Over-current Protection.

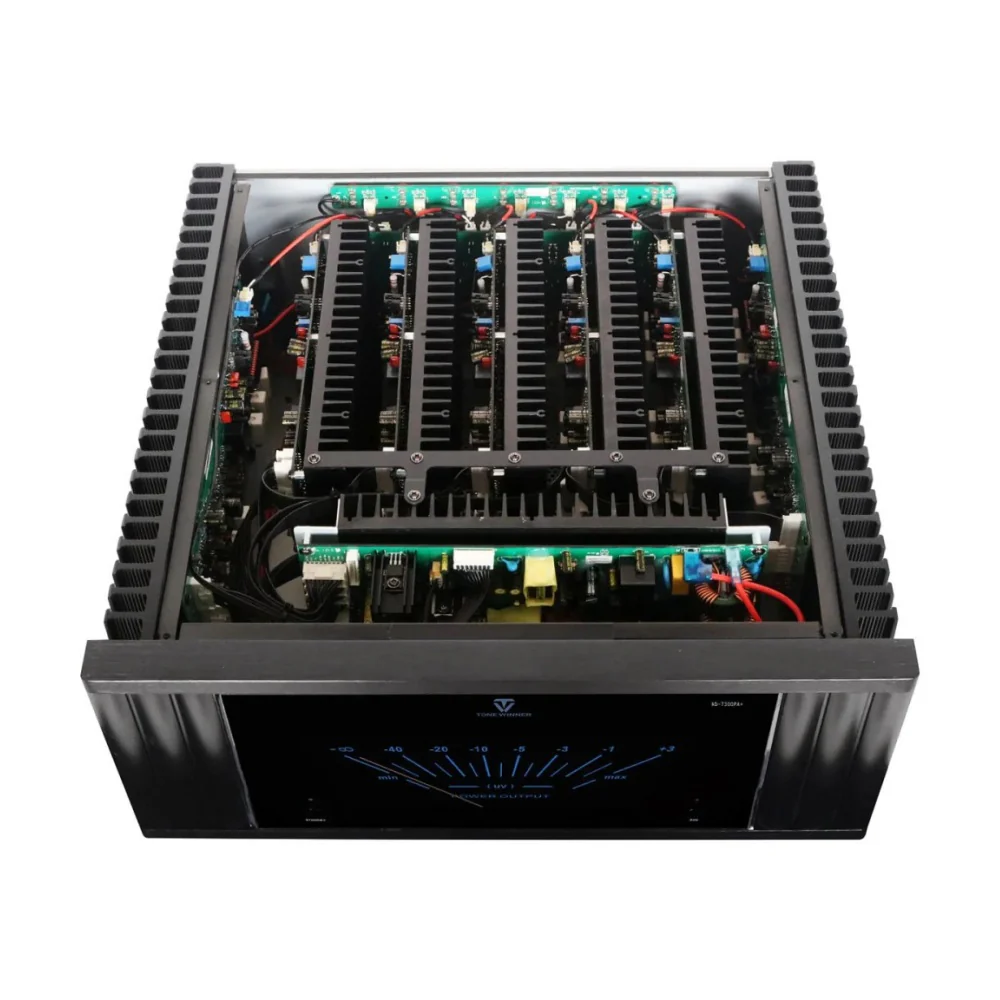

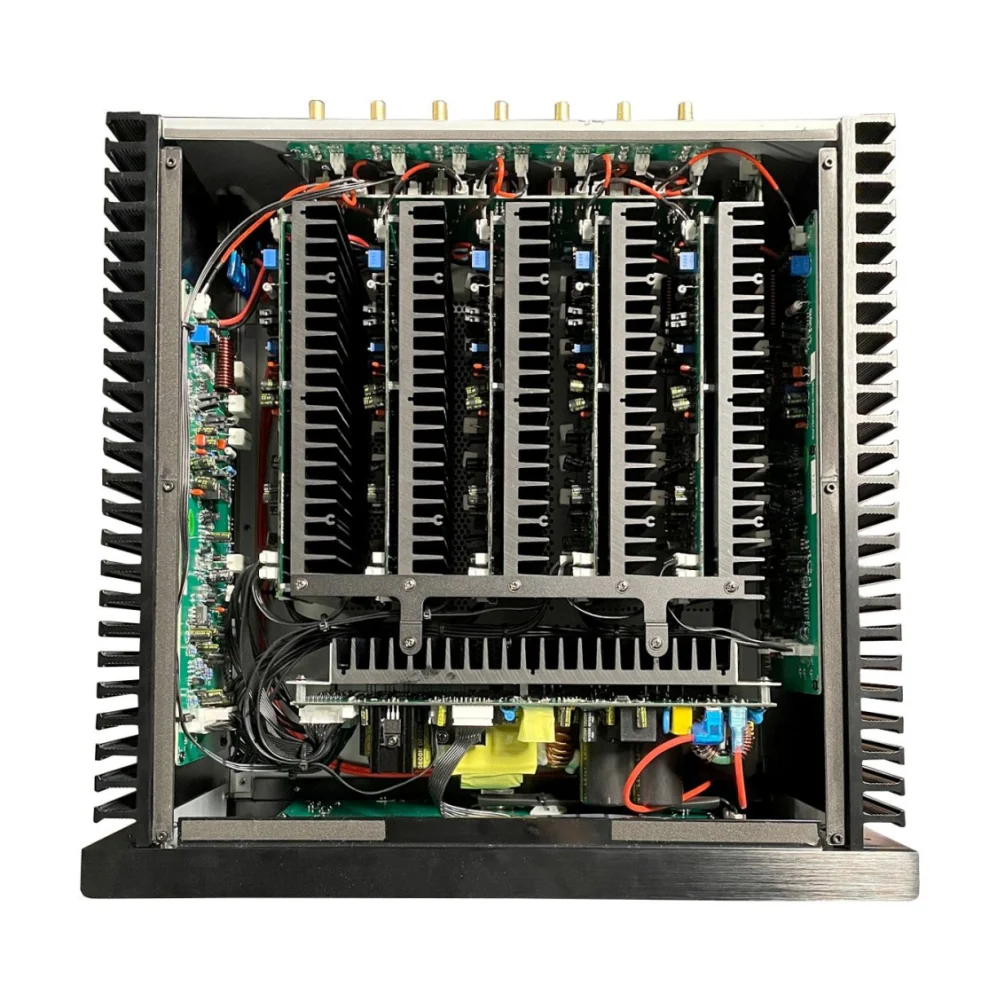

Power Under The Hood
Each of the 7 channels of the AD-7300PA+ feature 3 pairs of high power three-level push-pull Darlington circuit transistors providing the smooth yet punchy up to 300 watts of grunt per channel @ 8 ohms.
Seven huge heavy duty cast aluminium comb radiators ensure efficient running during long sessions. The front left and right channels are even given special treatment having direct access to the 2 giant comb radiators on each side of the unit. While the amplifier is Class AB, the front left and right channels operate at higher power levels bringing them closer to the characteristics of Class A.

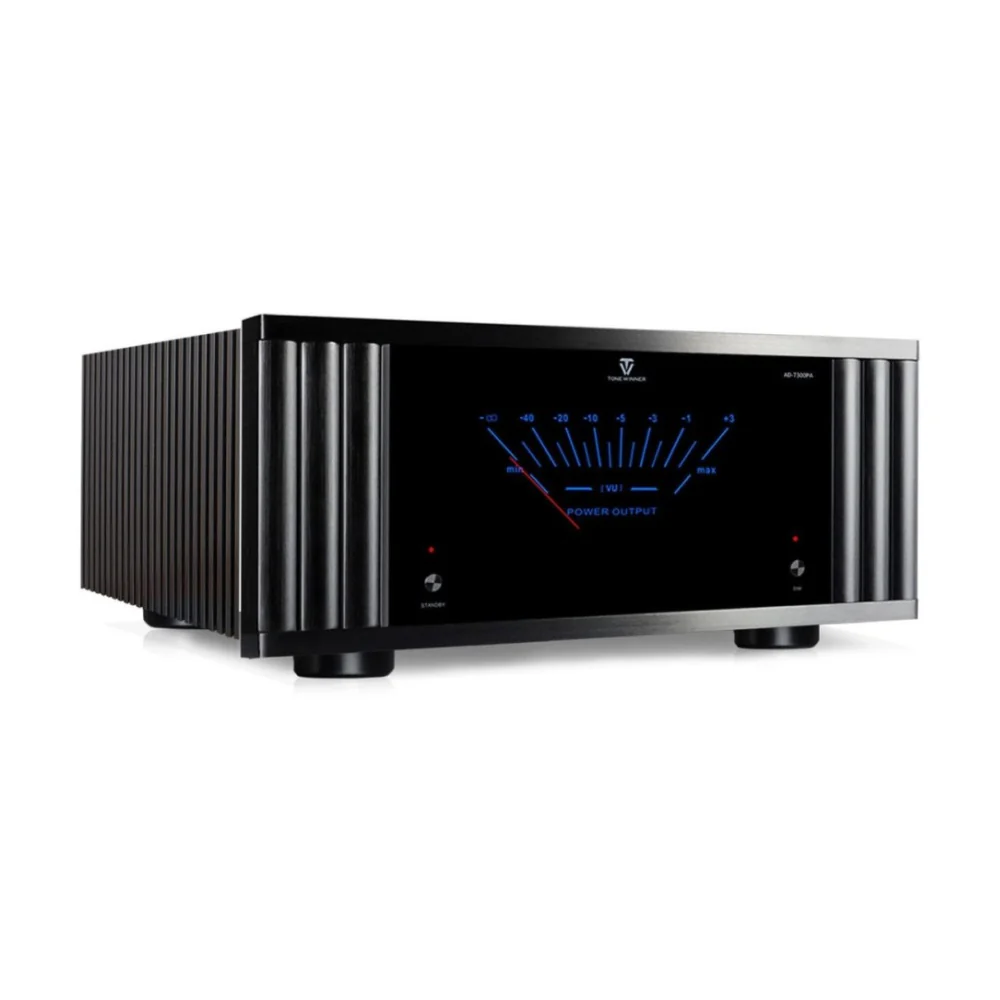

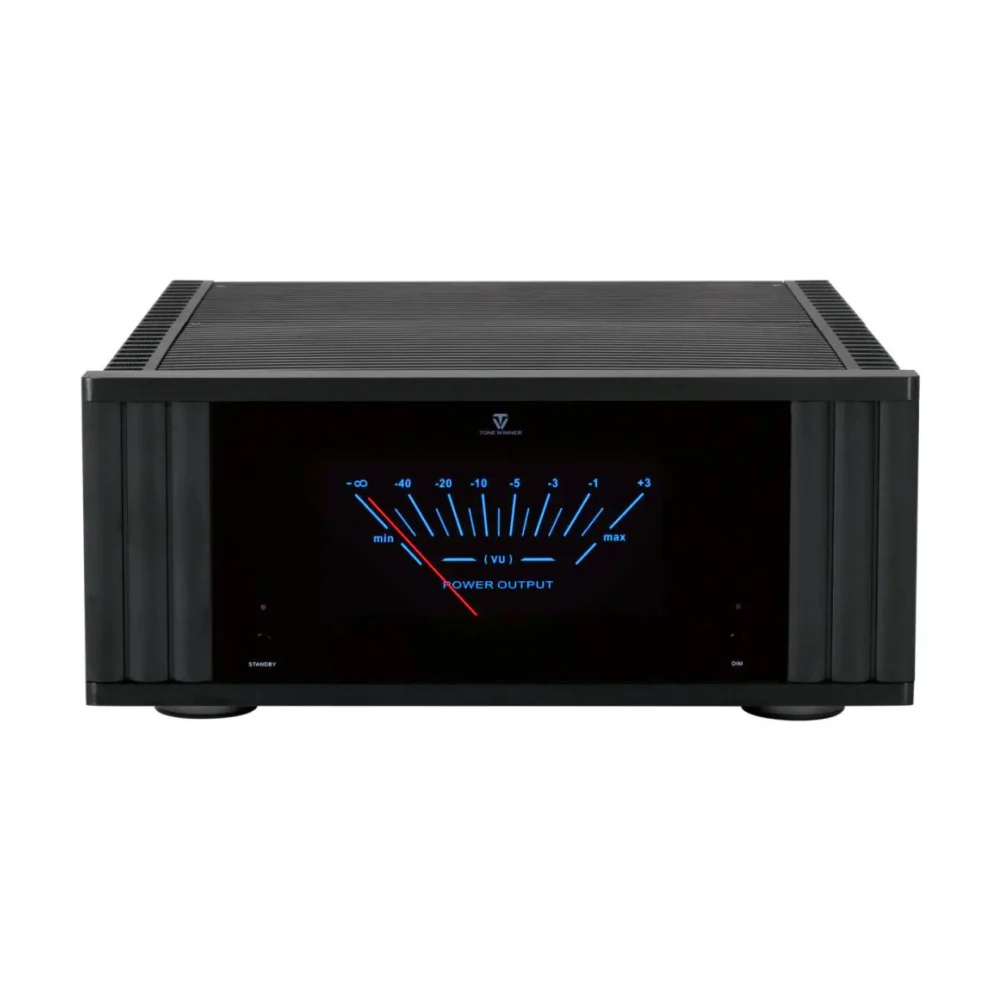

Over-sized VU Meter Display
The front panel of the AD-7300PA+ houses an over-sized mechanical VU meter, backlit in lake blue with a red needle it really gives the amp a special look. Brightness is adjustable via the front panel, all the way to completely off.

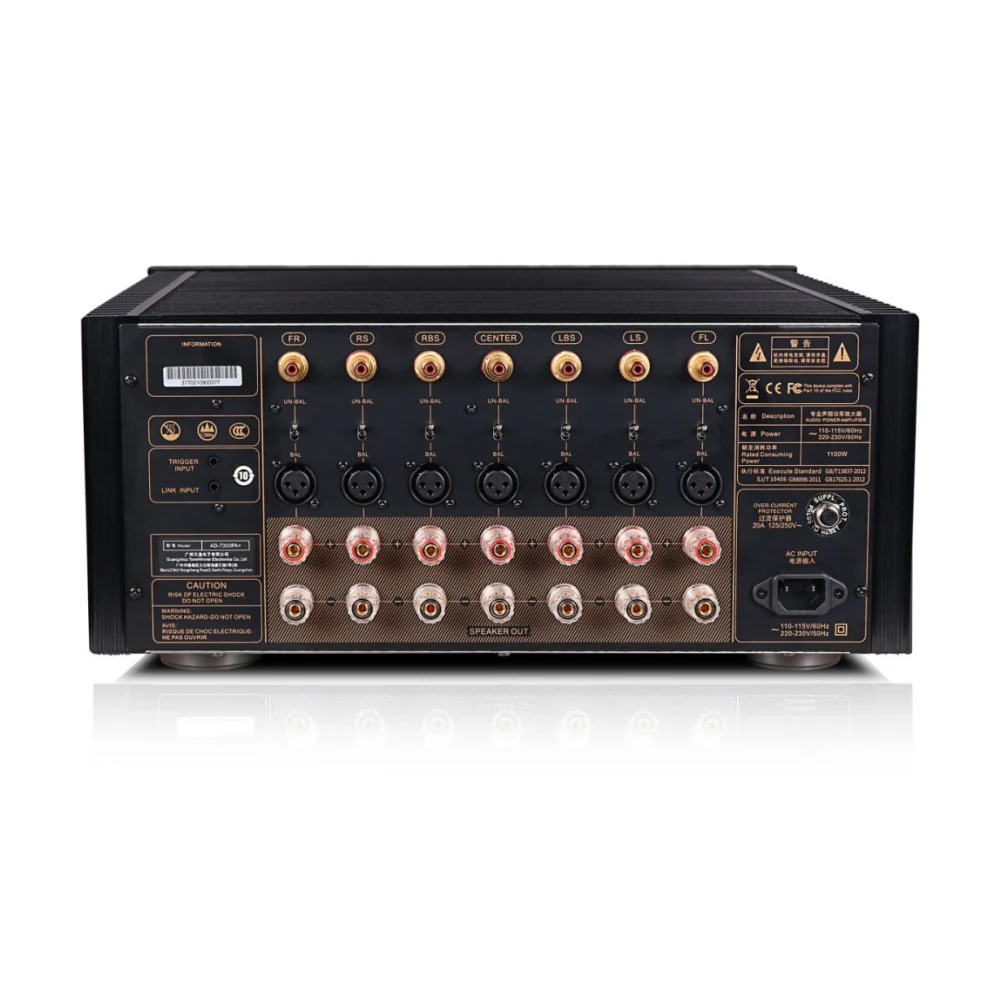

Audiophile Interface
Each of the seven channels on the AD-7300PA+ feature both balanced (XLR) and un-balanced (RCA) inputs along with a pair of heavy duty speaker outputs. It features a ultra low-noise dual differential amplifier circuit and a mirrored cross-current source load for an improved signal-to-noise ratio.
Tonewinner
Tonewinner was one of the first manufacturers in China to obtain official certifications for advanced HDMI technologies such as Dolby Atmos, Dolby Digital, Dolby TrueHD, DTS:X, DTS Master to name just a few!
The unabashedly Chinese brand is showing that premium components don't need to cost an arm and a leg! Tonewinner aims to bring premium high end audio at prices which won't make your wallet wince. These high end audio components are not only designed for a premium audio experience but also for grunt! Packing not only superior audio and the latest technology, but plenty of 'oomph' too!
Featuring exceptional dynamic range and near silent background noise, the AD-7300PA+ ensures you'll hear every detail in the quietest passages and clean undistorted output with impact when the soundtrack is at its highest loudness levels.
Chipset: PANASONIC MN864788
Processing: ADI SHARC-21573 DSP Processor & ARM Core Processor
D/A Converter: Cirrus Logic CS42528
Video Features:
- HDMI 2.0
- eARC
- HDCP 2.2
- HLG
- HDR10+
- DOLBY VISION
- CEC
Room Correction: Tonewinner Room Correction + 4 Sound Profile Setting
Sound Adjustment: Parametric EQ (LCR: 11-Band, Surround 7-band, Subwoofer 5-band adjustment)
THD Noise: >98db (A-Weight)
Crosstalk Separation: >80db
Distortion: < 0.02%
Dimensions W x H x D: 431 x 100 x 326mm
Net Weight: 4.4kg
Channels: 7 Channels - High powered single channel modules
Power Output:
- 324watts RMS/channel; 20 Hz – 20 kHz; THD<0.1%; 8 Ohms; one channel driven
- 584 watts RMS/channel; 20 Hz – 20 kHz; THD<0.1%; 4 Ohms; one channel driven
- 307watts RMS/channel; THD<0.1%; 8 Ohms; two channels driven
- 500watts RMS/channel; THD<0.1%; 4 Ohms; two channels driven
- 173 watts RMS/channel; THD<0.1%; 8 Ohms; all seven channels driven
Gain: 29.5dB
Frequency Response: 10 Hz to 70 kHz +0/-2 dB.
THD + noise: < 0.006%; at 100 watts RMS; 1 kHz
Signal to Noise Ratio (8 ohm Load): 106 dB; ref FTC rated power; unbalanced input (A-weighted)
Minimum Load Impedance: 4 Ohms
Damping Factor (8 Ohm load): > 149
Power Consumption: 1128W

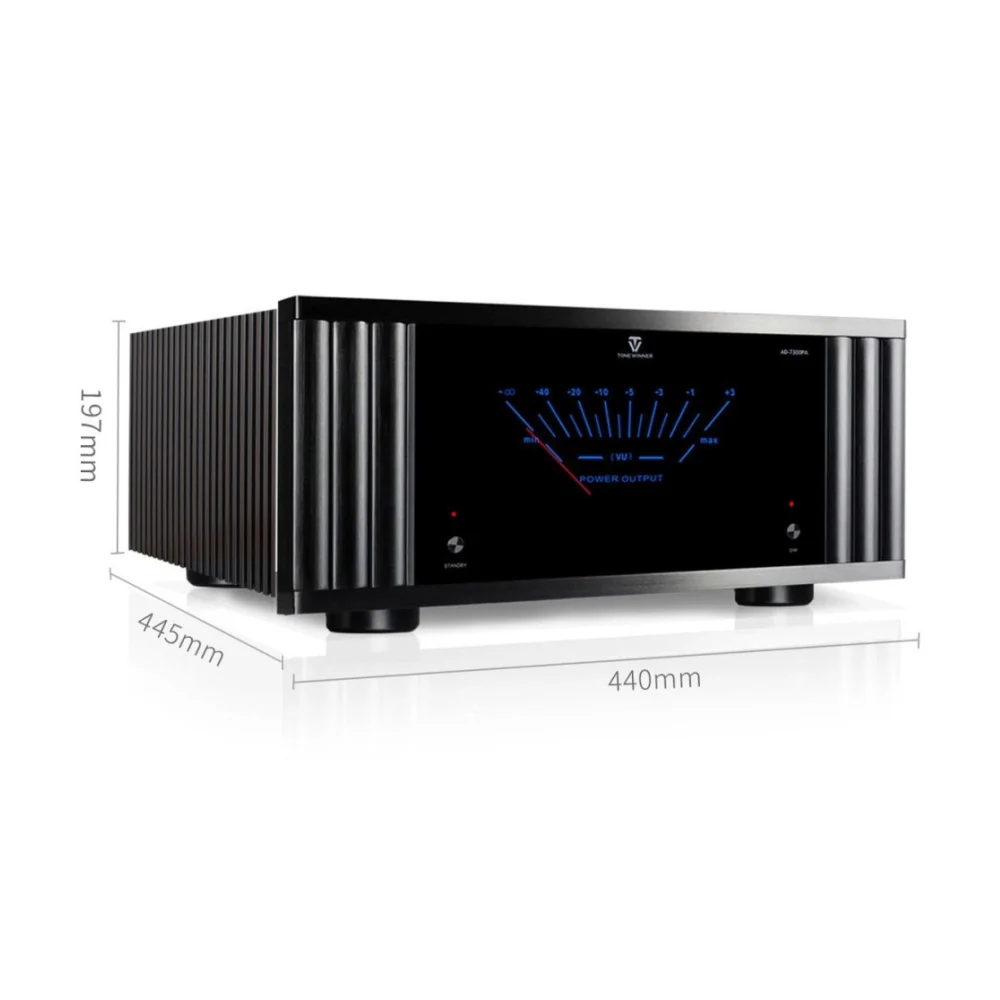

Dimensions W x H x D: 440 x 197 x 445 mm
Weight: 25kg
Includes: 1 x Stereo Power Amplifier
