Tonewinner AT-2300 7.1 Channel AV Stereo Receiver Black
Tonewinner AT-2300 7.1 Channel AV Stereo Receiver Black
The AT-2300 is an Atmos ready home theatre AV integrated amplifier that supports the latest immersive audio formats, including Dolby Atmos, DTS:X (5.1.2 or 7.1.4 via pre-outs) and HDR10+ and Dolby Vision.
Key Features:
- Supports up to Dolby Atmos, DTS:X (5.1.2 or 7.1.4 via pre-outs)
- 4K Ultra HD supporting HDMI 2.0, ARC, HDCP 2.2, HDR10+, DOLBY VISION, RGB 4:4:4, CEC
- Dolby Surround, DTS Neural:X surround up-mixing mode, Multi-channel mode & Direct mode
- HDMI 6 Inputs & 2 Outputs, RCA, SPDIF COAXIAL, SPDIF OPTICAL
- Supports high-resolution audio formats (FLAC, WAV, APE via USB, micro SD Card)
- Dedicated karaoke mode with dual microphone inputs
- Supports Bluetooth audio streaming
- Includes Tonewinner Room Correction mic
- Custom integration features: RS232, IR input, trigger output
- Dedicated Karaoke mode
To streamline the manufacturing process, power cables are not included in the box, but are automatically included as a separate item with each purchase.
Dolby Atmos
Take your home theatre experience into another world with Dolby Atmos. With Dolby Atmos' physically orientated three dimensional sound and height channel speakers, you'll enter into a world of audio realism like never before. Tonewinner was one of the first manufacturers in China to obtain official certification for Dolby Atmos, Dolby Digital, Dolby TrueHD and so on!
DTS:X
Like Atmos, DTS:X is the next-generation audio codec from DTS that leverages object-based audio to enable new audio experiences in immersion and interactivity. DTS:X also uses height channels and physically orientated three dimensional audio to crank up the immersion to eleven! Again Tonewinner was among the first manufacturers in Chine to obtain official certification of DTS technologies - a testament to their passion and high standards.
7.1 / 5.1.2 Channel Output
The AT-2300 supports 7 channels of powered speaker outputs for up to 7.1 or 5.1.2 channels* of audio.
*Subwoofer output is a pre-out
Dedicated Karaoke Mode
The AT-2300 features a dedicated karaoke mode with inputs for 2 microphones and built in reverb effects for when you're not enjoying the latest blockbuster.

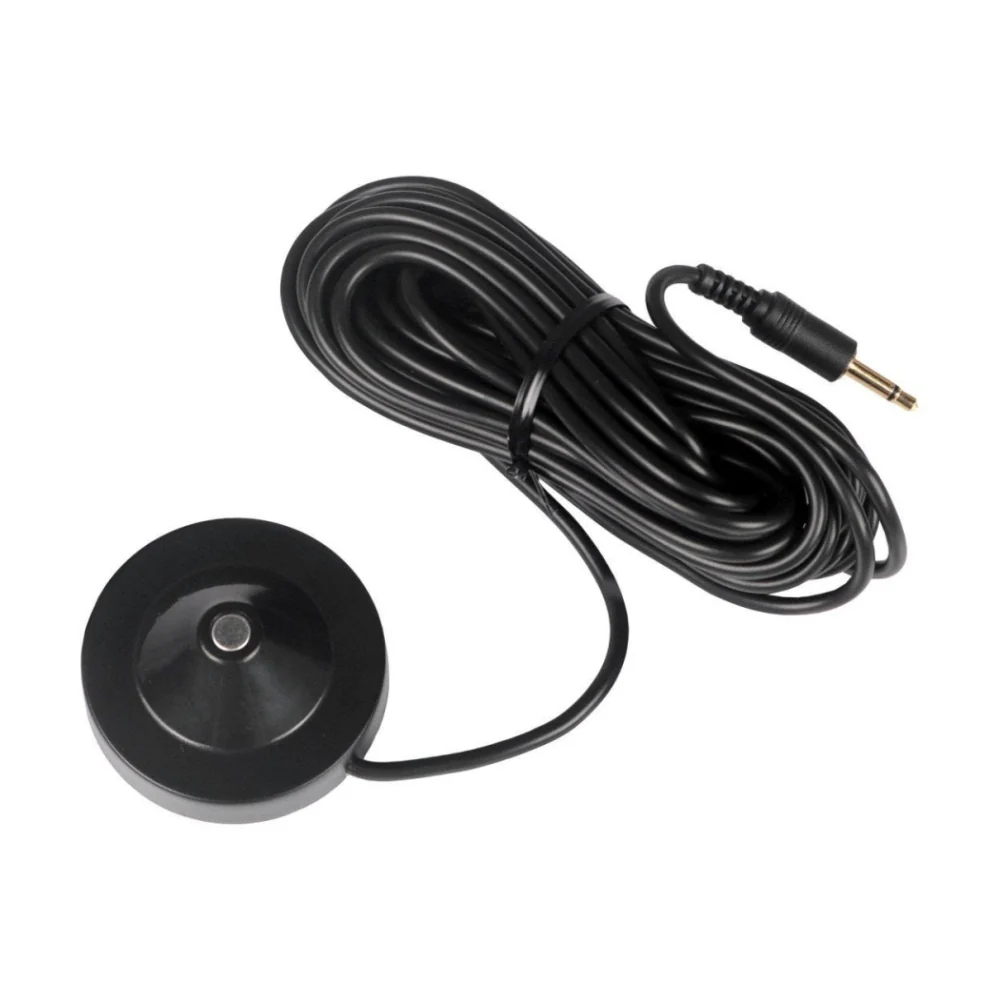

Tonewinner T-2 Room Correction Microphone System
The AT-2300 comes with the T-2 audio test microphone. It is specifically designed for use with Tonewinner's auto room correction function. When connected to the AT-2300 Processor, the T-2 can quickly and highly accurately automatically adjust EQ and level balance for each channel according to acoustic characteristics of the environment.
Tonewinner
Tonewinner was one of the first manufacturers in China to obtain official certifications for advanced HDMI technologies such as Dolby Atmos, Dolby Digital, Dolby TrueHD, DTS:X, DTS Master to name just a few!
The unabashedly Chinese brand is showing that premium components don't need to cost an arm and a leg! Tonewinner aims to bring premium high end audio at prices which won't make your wallet wince. These high end audio components are not only designed for a premium audio experience but also for grunt! Packing not only superior audio and the latest technology, but plenty of 'oomph' too!
The AT-2300 is an Atmos ready home theatre AV integrated amplifier that supports the latest immersive audio formats, including Dolby Atmos, DTS:X (5.1.2 or 7.1.4 via pre-outs) and HDR10+ and Dolby Vision.
- Model: AT-2300
- Channels: 5.1.2/7.1
- SNR: ≥95dB (A weight, Analog Bypass)
- Frequency: 20Hz - 20KHz (+1/-3dB, Analog Bypass)
- Power Consumption: 1000W
- Power Output: 150W per channel, one channel driven, into 8 Ohms, at ≤0.1% THD
- Distortion: ≤0.05%（A weight, Analog Bypass, 1KHz normal working status）
- Whole Unit Gain: ≥40dB (Analog Bypass)
- Impedance: 8Ω
- Power supply: ～110V/220V
- Weight: 15.5Kg

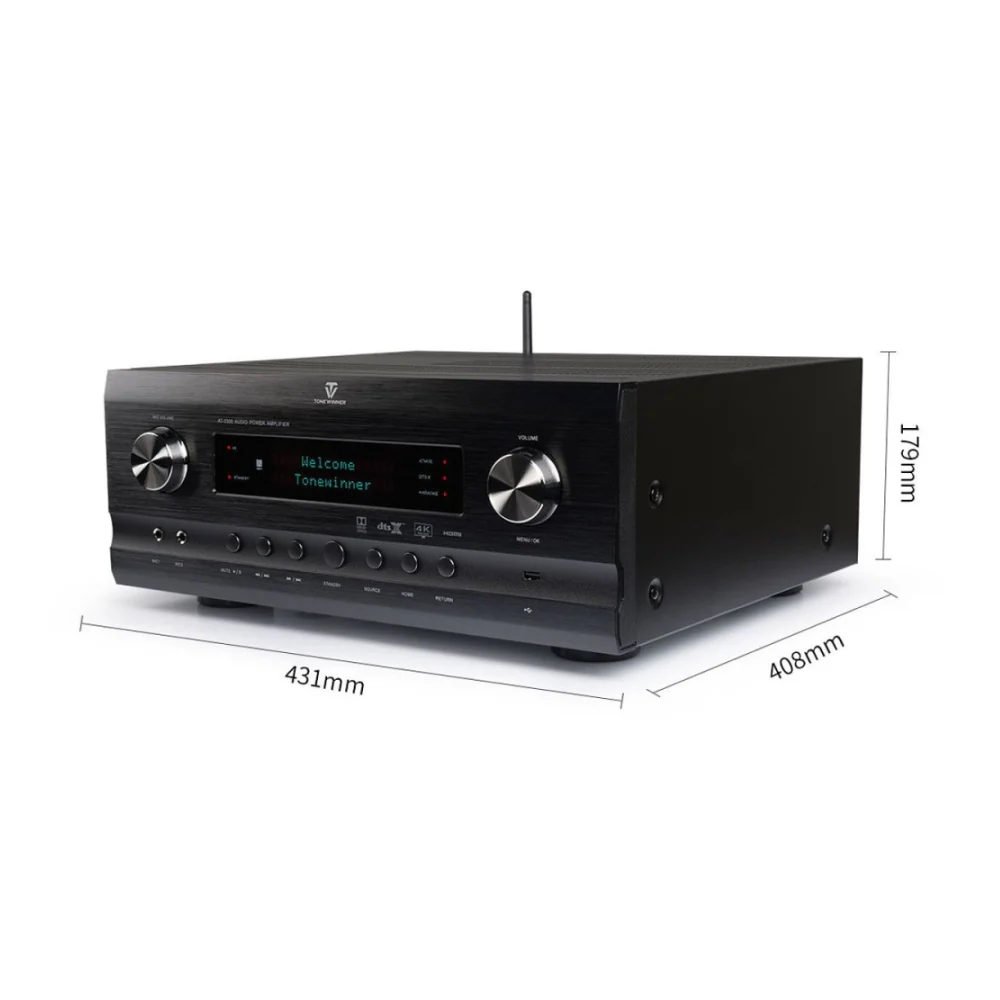

- Size (W x D x H): 431 x 408 x 179 mm (including binding posts)
- Accessories: User manual, Remote controller, Calibration microphone, HDMI cable, Certificate, Audio cable
- Supports Dolby Atmos DolbyTrue HD & all the downward audio formats
- Supports DTS:X, DTS-Master & all the downward HD audio formats
- Supports HDME 2.0 & HDCP 2.2
- Supports 4K/60Hz, RGB 4:4:4, 18GHz full bandwidth video signal, Dolby Vision & HDR 10+ video signals
- Supports lossless formats: APE, FLAC, WAV
- Supports compress formats: MP3, AAC, WMA
- Supports optical/coaxial/USB audio signal input
- Supports 2160P/60,1080P/60 & all the downward video formats
- Supports bluetooth, analog, optical, coaxial, USB, micro SD, PC, 6 group HDMI 2.0
- HDMI support: 4K, 3D, ARC, CEC, standby through
- Supports 5.1.2 karaokeIncludes: 1 x Stereo Receiver
