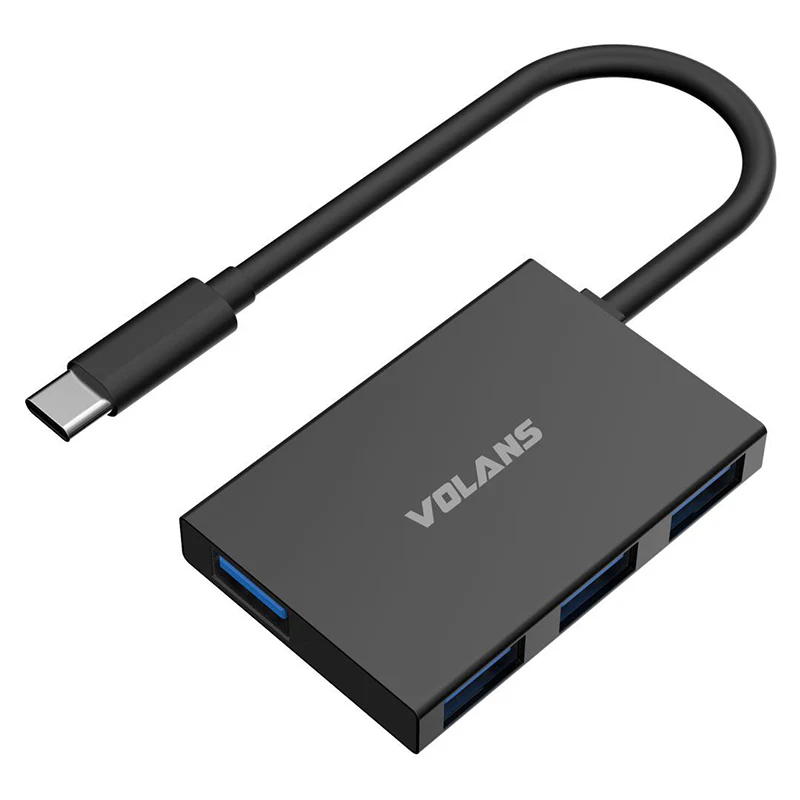

Volans 4 Port Aluminium USB 3 Type C Hub (VL-HB04S-C2)

Bus Type

USB 3.1 Gen2

Chipset ID

VL822

Fast-Charge Port(s)

No

Industry Standards

USB 3.1 €“ Backward compatible with USB 2.0 and 1.1

Interface

USB 3.1

Ports

4

USB-C Device Port(s)

No

USB-C Host Connection

Yes

PERFORMANCE

Maximum Data Transfer Rate

10 Gbps

Type and Rate

USB 3.1 €“ 10 Gbps

CONNECTOR(S)

Connector Type(s)

4 €“ USB Type-A (9 pin) USB 3.1 Female

1 €“ USB Type-C (24 pin) USB 3.1 Male

SOFTWARE

OS Compatibility

OS Independent; No additional drivers or software required

SPECIAL NOTES / REQUIREMENTS

Note

USB 3.1 Gen 2 standard offers speeds up to 10Gbps.

System and Cable Requirements

Available USB Type-C port €“ USB 3.1 (10Gbps)

POWER

Power Source

USB-Powered

ENVIRONMENTAL

Humidity

10~85% RH (Non-condensing)

Operating Temperature

0 °C to 45 °C (32 °F to 113 °F)

Storage Temperature

-10 °C to 70 °C (14 °F to 158 °F)

PHYSICAL CHARACTERISTICS

Colour

Black

Enclosure Type

Aluminium

Form Factor

Compact
