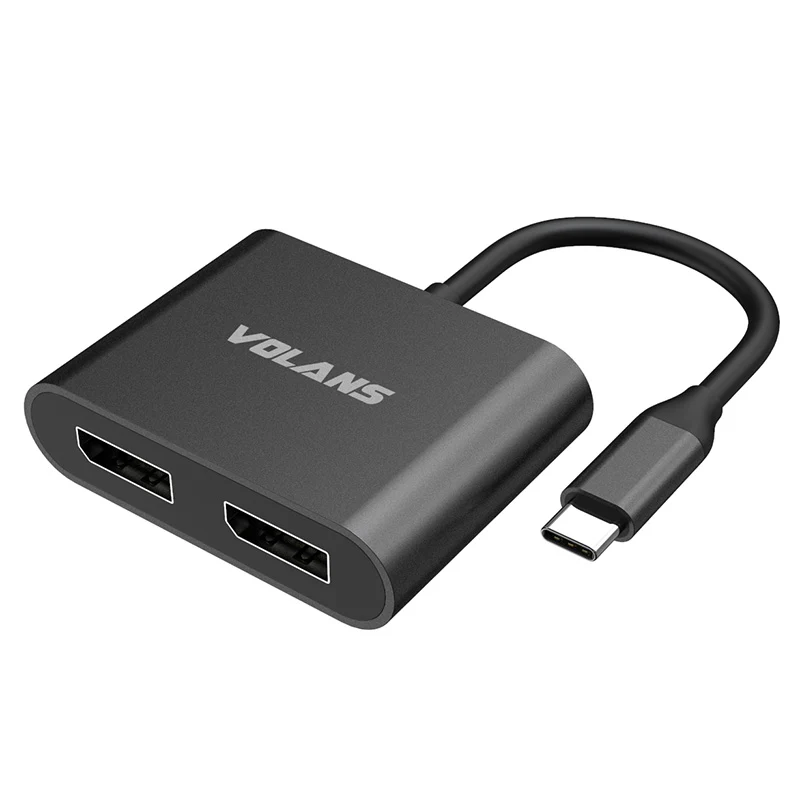

VOLANS VL-UC2DP Aluminium 8K USB-C to Dual DisplayPort Adapter with MST Dual Monitor
This DisplayPort adapter supports DisplayPort 1.4 specification for the higher-requirement computers and monitors with up to 8K@60Hz or 4K@120Hz performance.
Support Multi-Stream Transport (MST), streaming to extra dual independent displays up to 4K@120Hz.
Windows OS is able to turn on the Screen Mirroring and Extend on the external monitors. MacOS does not support MST, a single extra independent display can be streaming on the external monitors.
USB-C connector allows you to connect with a computer or a tablet which equipped Thunderbolt 3 port or USB-C port that supports DisplayPort Alt Mode (DP Alt Mode).
Support HDCP 2.2, meet the requirements of Ultra HD Netflix or Amazon Prime Video and more.
Portable with a diminutive dimension.
Bus-powered, no power adapter needed.
Plug and play, no driver required.
SPECIFICATIONS:
HARDWARE |
|
8K Support |
Yes |
Bus Type |
USB-C |
Chipset ID |
VL100+RTD2186 |
Displays Supported |
2 |
PERFORMANCE |
|
Maximum Digital Resolutions |
USB-C DP1.4: Dual Monitor (SST): 4K@60Hz | Dual Monitor (MST): 4K@60Hz USB-C DP1.2: Dual Monitor (SST): 4K@60Hz | Dual Monitor (MST): 4K@30Hz MST mode only compatible with Windows OS. Only SST is supported on Mac OS. |
CONNECTOR(S) |
|
Connector Type(s) |
1 USB Type-C (24 pin) USB 3.0 Male 2 DisplayPort 1.4 Female |
SPECIAL NOTES / REQUIREMENTS |
|
Note |
Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports DP alt mode. 8K@60Hz or 4K@120Hz with DisplayPort 1.4 |
OS Suport |
Windows7/8/10/11, Google Chrome OS, Mac OS X Yosemite, Mac OS X El Capitan,Mac OS sierra or above. |
POWER |
|
Power Source |
USB-Powered |
ENVIRONMENTAL |
|
Humidity |
0~90% RH (Non-condensing) |
Operating Temperature |
0 °C to 40 °C |
Storage Temperature |
5 °C to 45 °C |
PHYSICAL CHARACTERISTICS |
|
Colour |
Black |
Enclosure Type |
Aluminium |
