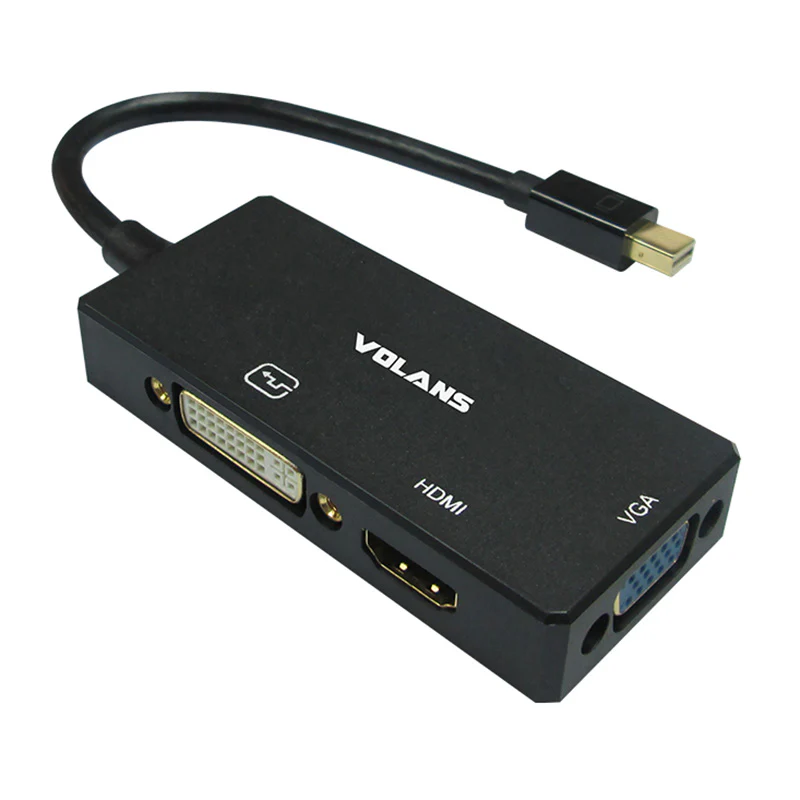

Volans Mini DisplayPort to HDMI (4K) / DVI / VGA Converter (VL-MDPHDV-4K)
Volans Mini DisplayPort to HDMI (4K) / DVI / VGA Converter
This 3-in-1 travel adapter offers a portable solution for connecting your Mini DisplayPort computer to a VGA, DVI or HDMI ® display. The adapter is VESA certified, to ensure compatibility with your mDP computer.
All-in-one video connectivity, with travel in mind
Instead of filling your laptop bag with different converters for different displays, this 3-in-1 adapter gives you all the video outputs you ll need. With VGA, DVI and HDMI outputs, this adapter lets you connect from your laptop s Mini DisplayPort port to any boardroom or classroom display, without the inconvenience of carrying a separate adapter for each display type. With support for multiple video outputs and a lightweight, small-footprint design, this adapter is the ideal plug-and-play solution for travel or BYOD (Bring Your Own Device) applications around the office.
Astonishing picture quality with support for Ultra HD 4K
The HDMI output on this adapter supports Ultra HD 4K resolutions, providing four times the picture quality of high-definition 1080p. The HDMI output is also backward compatible with lower resolutions, such as 1080p and 720p, so the adapter is also perfect for your legacy video equipment. The VGA and DVI outputs also support a high-definition maximum resolution up to 1920 x 1200, so you can still enjoy excellent video quality. The travel adapter is compatible with mDP Intel ® Thunderbolt ¢ devices that are capable of outputting a DisplayPort signal.
SPECIFICATIONS:
HARDWARE |
|
Adapter Style |
Adapters |
Audio |
Yes |
Converter Type |
Travel A/V Adapters |
Output Signal |
HDMI DVI-D (DVI Digital) VGA |
PERFORMANCE |
|
Audio Specifications |
HDMI output 7.1 surround sound |
General Specifications |
Only one video output is supported on the video adapter at a time. If multiple connections are made, only one of the outputs will function. |
Maximum Analog Resolutions |
1920 x 1200 |
Maximum Digital Resolutions |
3840 x 2160 |
Supported Resolutions |
HDMI output: 3840 x 2160, 2560 x 1600, 1920 x 1200, 1920 x 1080, 1280 x 720 DVI and VGA output: 1920 x 1200, 1920 x 1080, 1280 x 720 |
Video Revision |
DisplayPort 1.2 |
Wide Screen Supported |
Yes |
CONNECTOR(S) |
|
Connector A |
1 Mini-DisplayPort (20 pin) Male Input |
Connector B |
1 HDMI (19 pin) Female Output 1 VGA (15 pin, High Density D-Sub) Female Output 1 DVI-D (25 pin) Female Output |
SPECIAL NOTES / REQUIREMENTS |
|
Note |
The HDMI port is a passive port. The DVI-D is a passive port. The VGA port is an active port. |
ENVIRONMENTAL |
|
Humidity |
40%-50%RH |
Operating Temperature |
0 °C to 70 °C (32 °F to 158 °F) |
Storage Temperature |
-10 °C to 80 °C (14 °F to 176 °F) |
WHAT S IN THE BOX |
|
Included in Package |
1 VL-MDPHDV-4K 2 User Manuel |
